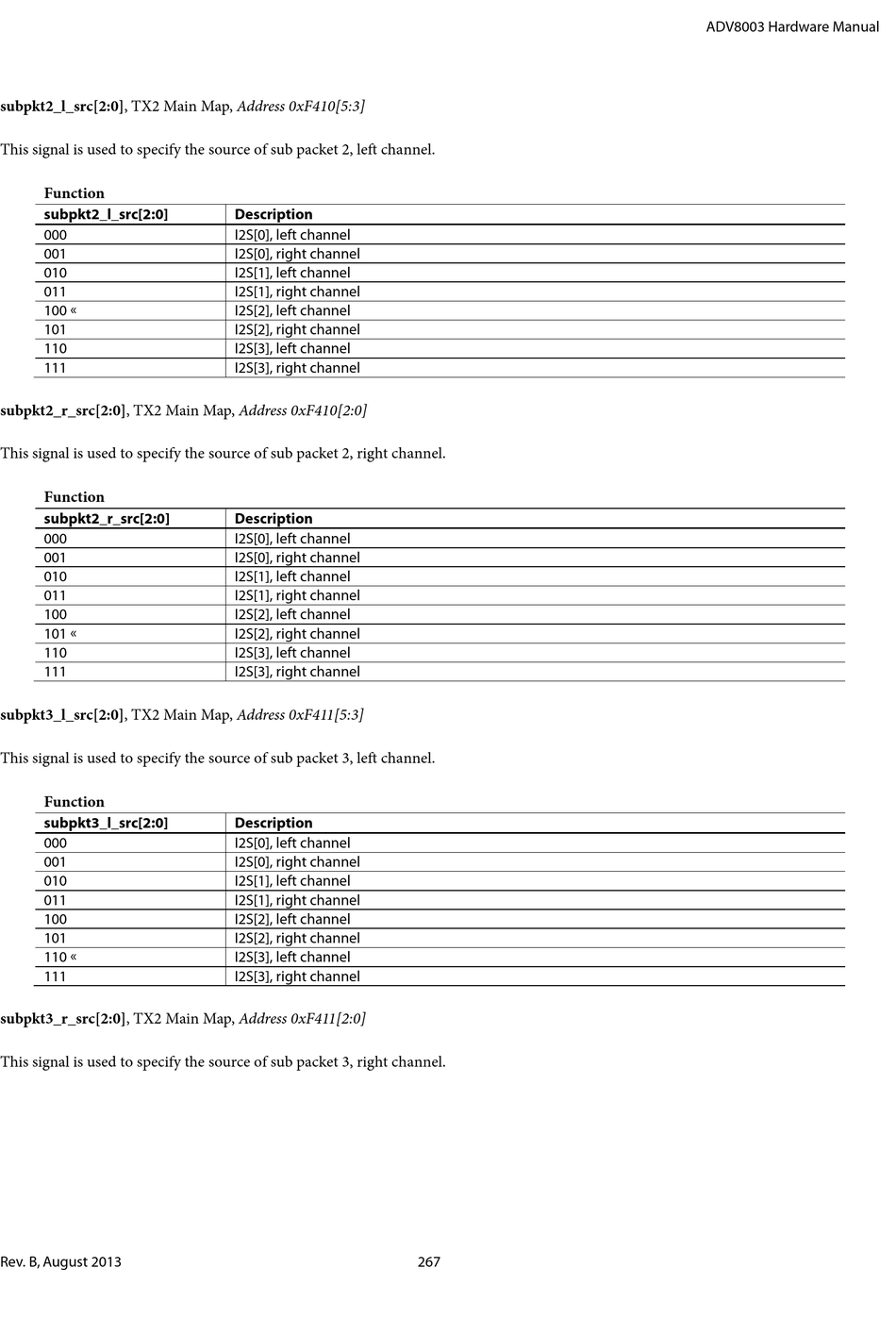

Analog Devices ADV8003 Hardware Manual page 267

subpkt2_l_src[2:0], TX2 Main Map, Address 0xF410[5:3]
This signal is used to specify the source of sub packet 2, left channel.
Function
subpkt2_l_src[2:0]
000
001
010
011
100 
101
110
111
subpkt2_r_src[2:0], TX2 Main Map, Address 0xF410[2:0]
This signal is used to specify the source of sub packet 2, right channel.
Function
subpkt2_r_src[2:0]
000
001
010
011
100
101 
110
111
subpkt3_l_src[2:0], TX2 Main Map, Address 0xF411[5:3]
This signal is used to specify the source of sub packet 3, left channel.
Function
subpkt3_l_src[2:0]
000
001
010
011
100
101
110 
111
subpkt3_r_src[2:0], TX2 Main Map, Address 0xF411[2:0]
This signal is used to specify the source of sub packet 3, right channel.
Rev. B, August 2013
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
267
ADV8003 Hardware Manual
