Analog Devices ADV8003 Hardware Manual page 266

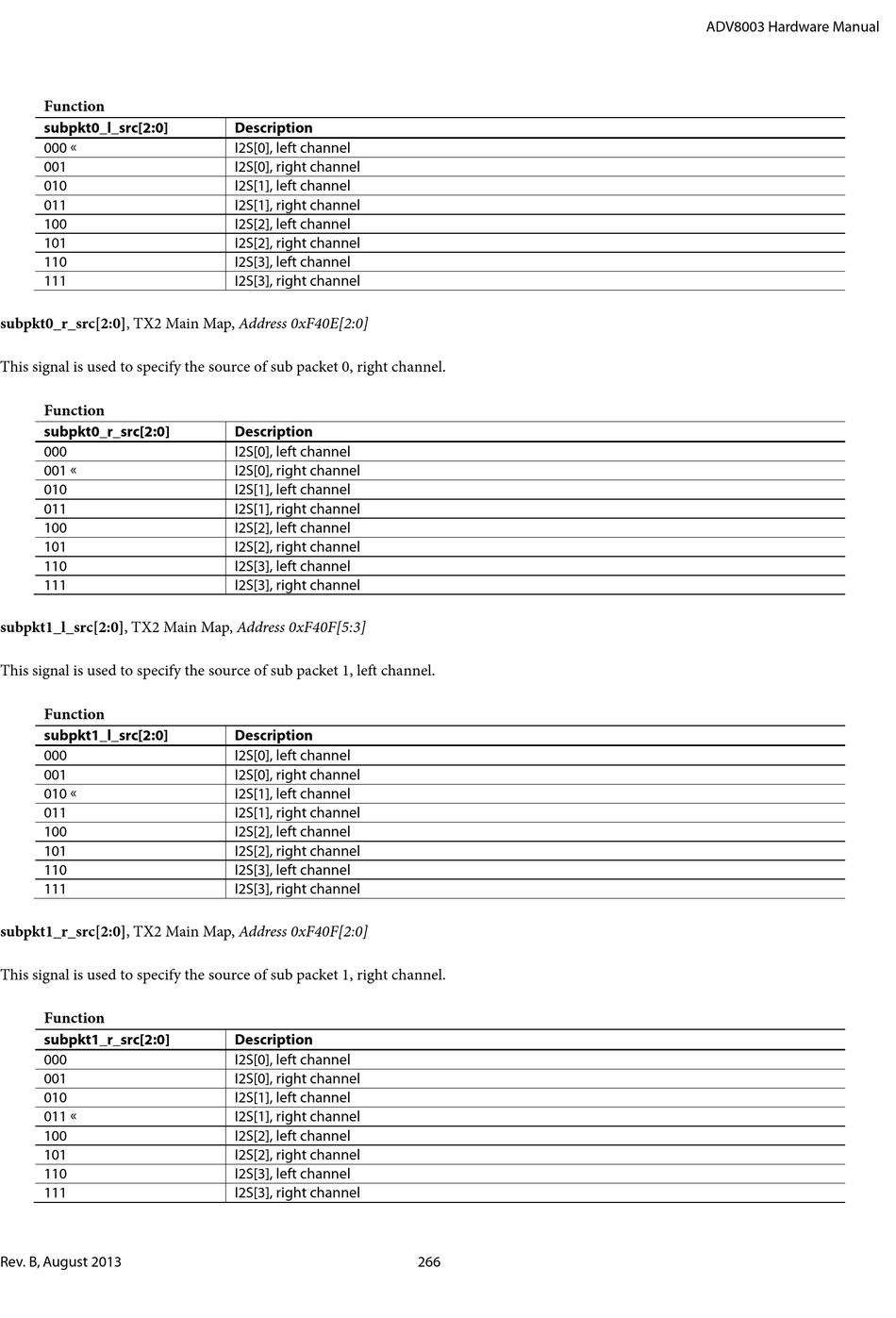

Function
subpkt0_l_src[2:0]
000 
001
010
011
100
101
110
111
subpkt0_r_src[2:0], TX2 Main Map, Address 0xF40E[2:0]
This signal is used to specify the source of sub packet 0, right channel.
Function
subpkt0_r_src[2:0]
000
001 
010
011
100
101
110
111
subpkt1_l_src[2:0], TX2 Main Map, Address 0xF40F[5:3]
This signal is used to specify the source of sub packet 1, left channel.
Function
subpkt1_l_src[2:0]
000
001
010 
011
100
101
110
111
subpkt1_r_src[2:0], TX2 Main Map, Address 0xF40F[2:0]
This signal is used to specify the source of sub packet 1, right channel.
Function
subpkt1_r_src[2:0]
000
001
010
011 
100
101
110
111
Rev. B, August 2013
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
