the
svsp_dp_margin_color[23:0]
SVSP_DP_VIDEO_H_START
VSP2D_DP_VIDEO_H_START
svsp_dp_video_h_start[10:0], Secondary VSP Map, Address 0xE62E[7:0]; Address 0xE62F[7:5]
This signal is used to set the horizontal start position where the output video of the scaler is placed.
Function
svsp_dp_video_h_start[
10:0]
0x000 
0xXXX
svsp_dp_video_v_start[10:0], Secondary VSP Map, Address 0xE630[7:0]; Address 0xE631[7:5]
This signal is used to set the vertical start position where the output video of the scaler is placed.
Function
svsp_dp_video_v_start[
10:0]
0x000 
0xXXX
svsp_dp_margin_color[23:0], Secondary VSP Map, Address 0xE643[7:0]; Address 0xE644[7:0]; Address 0xE645[7:0]
This signal is used to set the default color in the output video in the YUV colorspace.
Function
svsp_dp_margin_color[
23:0]
0x000000
0xXXXXXX
svsp_dp_output_blank, Secondary VSP Map, Address 0xE642[5]
This bit is used to force the color output of the Secondary VSP. If this register is set to 1, the output of the Secondary VSP is forced to
the user defined color in svsp_dp_margin_color.
Rev. B, August 2013
register in the YUV color space. This feature can be enabled using svsp_dp_output_blank.
Output video from Primary VSP
Output video from Primary VSP
SVSP_DP_VIDEO_V_START
Output video from
Output video from
VOM Output
VOM Output
SVSP_SCAL_OUT_WIDTH
SVSP_DP_DECOUNT

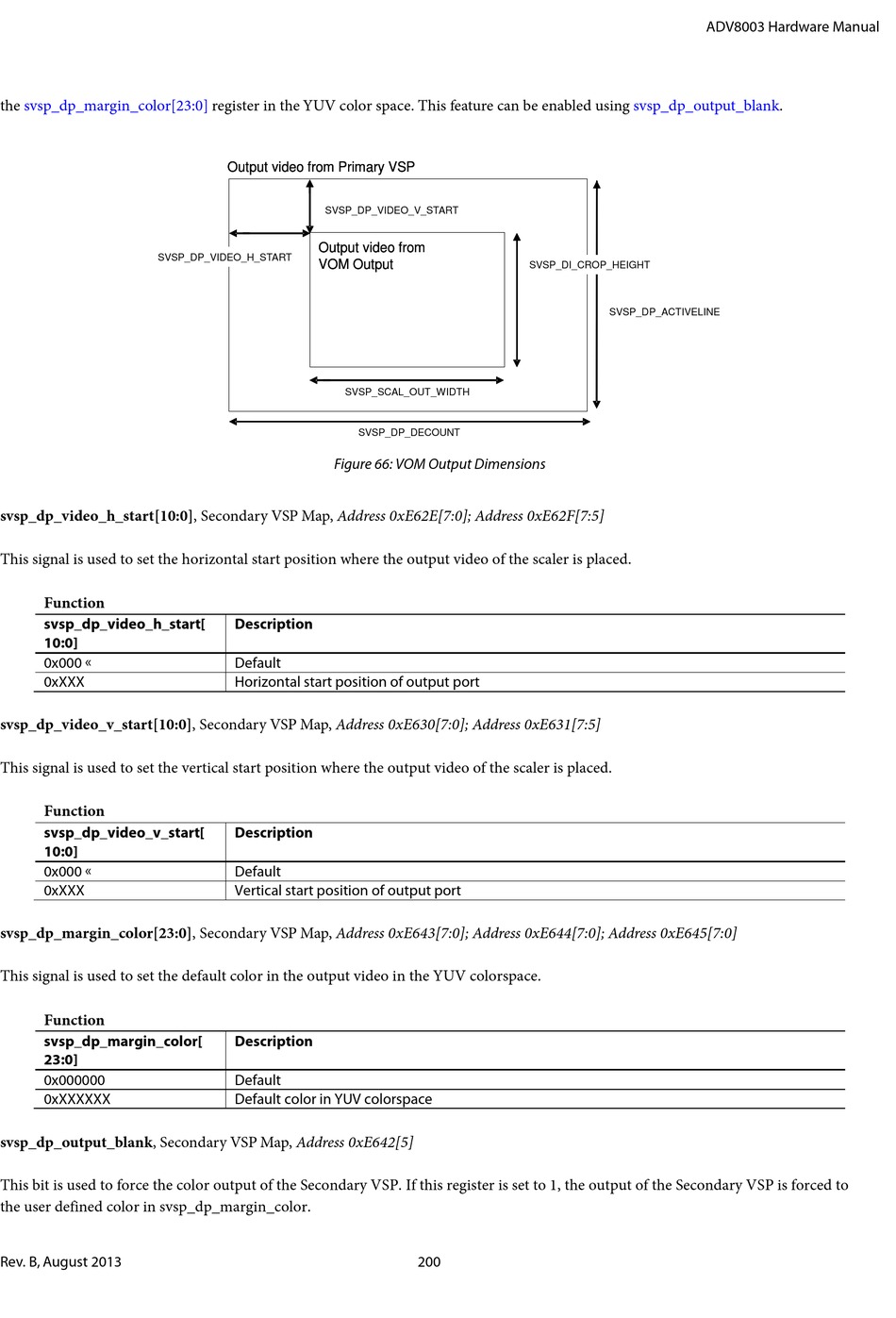

Figure 66: VOM Output Dimensions

Description
Default
Horizontal start position of output port
Description
Default
Vertical start position of output port
Description
Default
Default color in YUV colorspace
VSP2D_DI_CROP_HEIGHT
SVSP_DI_CROP_HEIGHT
200
ADV8003 Hardware Manual
SVSP_DP_ACTIVELINE
VSP2D_DP_ACTIVELINE
