FIELD FUNCTION DESCRIPTION

The function of a field is described in a table preceded by the bit name, a short function description, the I
within the I
C map, and a detailed description of the field. Refer to
2
The detailed description consists of:
For a readable field, the values the field can take
For a writable field, the values the field can be set to
The name of the field. In this example the field is called
deep_color_mode and is 2 bits long.
deep_color_mode[1:0], HDMI RX Map, Address 0xE20B[7:6] (Read Only)
A readback of the deep color mode information extracted from the general control packet.
Function
deep_color_mode[1:0]
00 
01
10
11
Values the field can be set to or
take. These values are in binary
format if not preceded by '0x' and in
hexadecimal format if preceded by
'0x' .
Rev. B, August 2013
Description
8-bits per channel
10-bits per channel
12-bits per channel
16-bits per channel (not supported)
Default value
indicated by

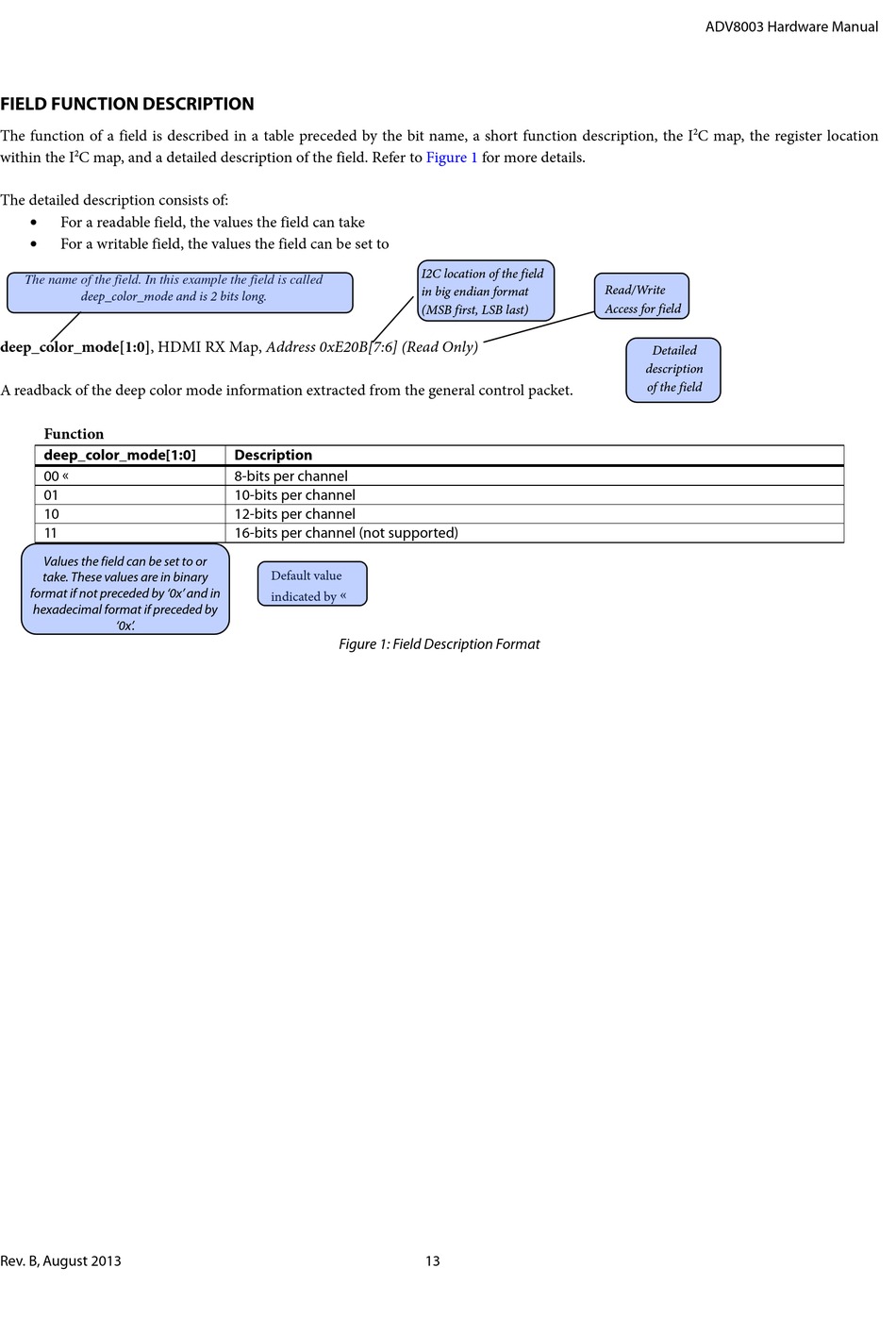

Figure 1: Field Description Format

Figure 1
for more details.
I2C location of the field
in big endian format
(MSB first, LSB last)
13
ADV8003 Hardware Manual
2
C map, the register location
Read/Write
Access for field
Detailed
description
of the field
