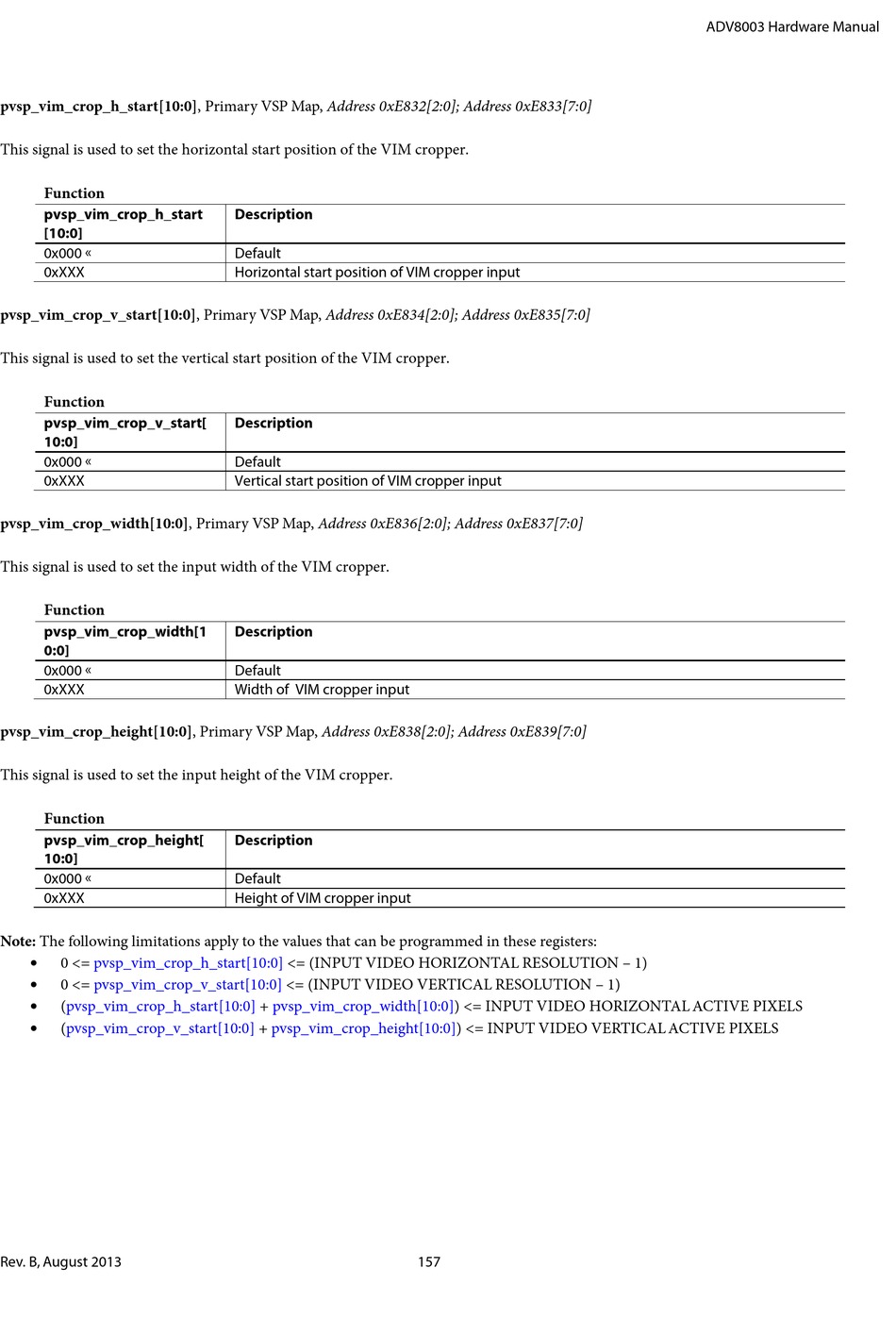

Analog Devices ADV8003 Hardware Manual page 157

pvsp_vim_crop_h_start[10:0], Primary VSP Map, Address 0xE832[2:0]; Address 0xE833[7:0]
This signal is used to set the horizontal start position of the VIM cropper.
Function
pvsp_vim_crop_h_start
[10:0]
0x000 
0xXXX
pvsp_vim_crop_v_start[10:0], Primary VSP Map, Address 0xE834[2:0]; Address 0xE835[7:0]
This signal is used to set the vertical start position of the VIM cropper.
Function
pvsp_vim_crop_v_start[
10:0]
0x000 
0xXXX
pvsp_vim_crop_width[10:0], Primary VSP Map, Address 0xE836[2:0]; Address 0xE837[7:0]
This signal is used to set the input width of the VIM cropper.
Function
pvsp_vim_crop_width[1
0:0]
0x000 
0xXXX
pvsp_vim_crop_height[10:0], Primary VSP Map, Address 0xE838[2:0]; Address 0xE839[7:0]
This signal is used to set the input height of the VIM cropper.
Function
pvsp_vim_crop_height[
10:0]
0x000 
0xXXX
Note: The following limitations apply to the values that can be programmed in these registers:
•
0 <= pvsp_vim_crop_h_start[10:0]
• 0 <= pvsp_vim_crop_v_start[10:0]
•
(pvsp_vim_crop_h_start[10:0]
• (pvsp_vim_crop_v_start[10:0]
Rev. B, August 2013
Description
Default
Horizontal start position of VIM cropper input
Description
Default
Vertical start position of VIM cropper input
Description
Default
Width of VIM cropper input
Description
Default
Height of VIM cropper input
<= (INPUT VIDEO HORIZONTAL RESOLUTION – 1)
<= (INPUT VIDEO VERTICAL RESOLUTION – 1)
+ pvsp_vim_crop_width[10:0]) <= INPUT VIDEO HORIZONTAL ACTIVE PIXELS
+ pvsp_vim_crop_height[10:0]) <= INPUT VIDEO VERTICAL ACTIVE PIXELS
