configuration of the OSD through the IO Map I

4.2.8.1. Overview

It is possible to access the DDR2 and OSD SPI registers in one of two ways:
• The ADV8003 SPI master interface (serial port 2) can pull in resource data to DDR2 memory from an external SPI flash
memory, as shown in
•
The system MCU (SPI master) can write OSD data into DDR2 memory using the ADV8003 SPI slave interface (serial port 1), as
shown in Figure
Rev. B, August 2013
C registers). The SPI slave hardware interface is also described in this section.
2
Figure 77.
78.
OSD_CORE
DDR2 Memory

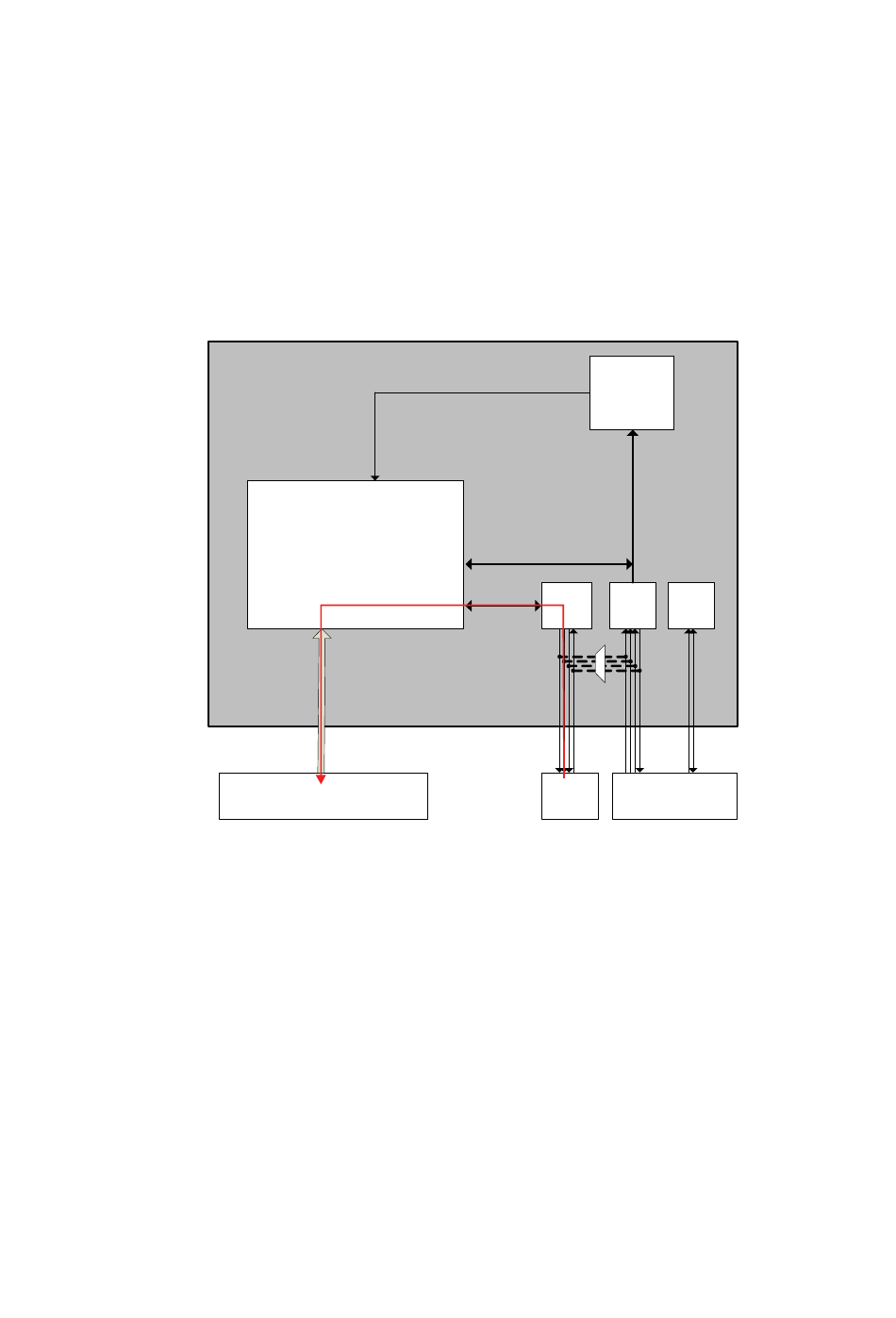

Figure 77: Data Loaded from SPI Flash Through ADV8003 SPI Master Interface

SPI
Master
FLASH
MEM
218
ADV8003 Hardware Manual
Config
Register
SPI I2C
Slave Slave
System
Controller(CPU)
