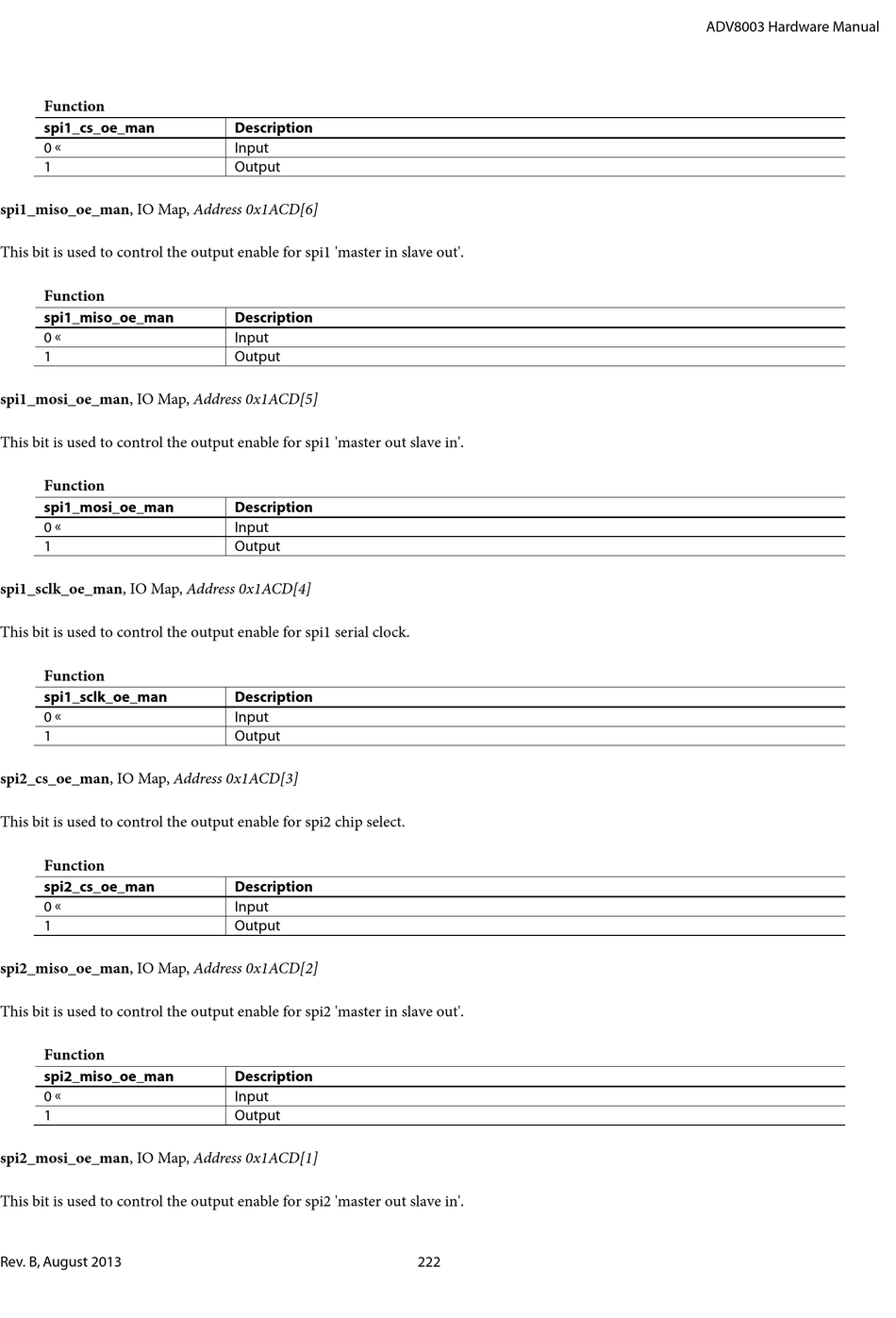

Analog Devices ADV8003 Hardware Manual page 222

Video signal processor with motion adaptive deinterlacing, scaling, bitmap osd, dual hdmi tx and video encoder
Table of Contents

Advertisement

Function
spi1_cs_oe_man
0 
1
spi1_miso_oe_man, IO Map, Address 0x1ACD[6]
This bit is used to control the output enable for spi1 'master in slave out'.
Function
spi1_miso_oe_man
0 
1
spi1_mosi_oe_man, IO Map, Address 0x1ACD[5]
This bit is used to control the output enable for spi1 'master out slave in'.
Function
spi1_mosi_oe_man
0 
1
spi1_sclk_oe_man, IO Map, Address 0x1ACD[4]
This bit is used to control the output enable for spi1 serial clock.
Function
spi1_sclk_oe_man
0 
1
spi2_cs_oe_man, IO Map, Address 0x1ACD[3]
This bit is used to control the output enable for spi2 chip select.
Function
spi2_cs_oe_man
0 
1
spi2_miso_oe_man, IO Map, Address 0x1ACD[2]
This bit is used to control the output enable for spi2 'master in slave out'.
Function
spi2_miso_oe_man
0 
1
spi2_mosi_oe_man, IO Map, Address 0x1ACD[1]
This bit is used to control the output enable for spi2 'master out slave in'.
Rev. B, August 2013
Description
Input
Output
Description
Input
Output
Description
Input
Output
Description
Input
Output
Description
Input
Output
Description
Input
Output
222
