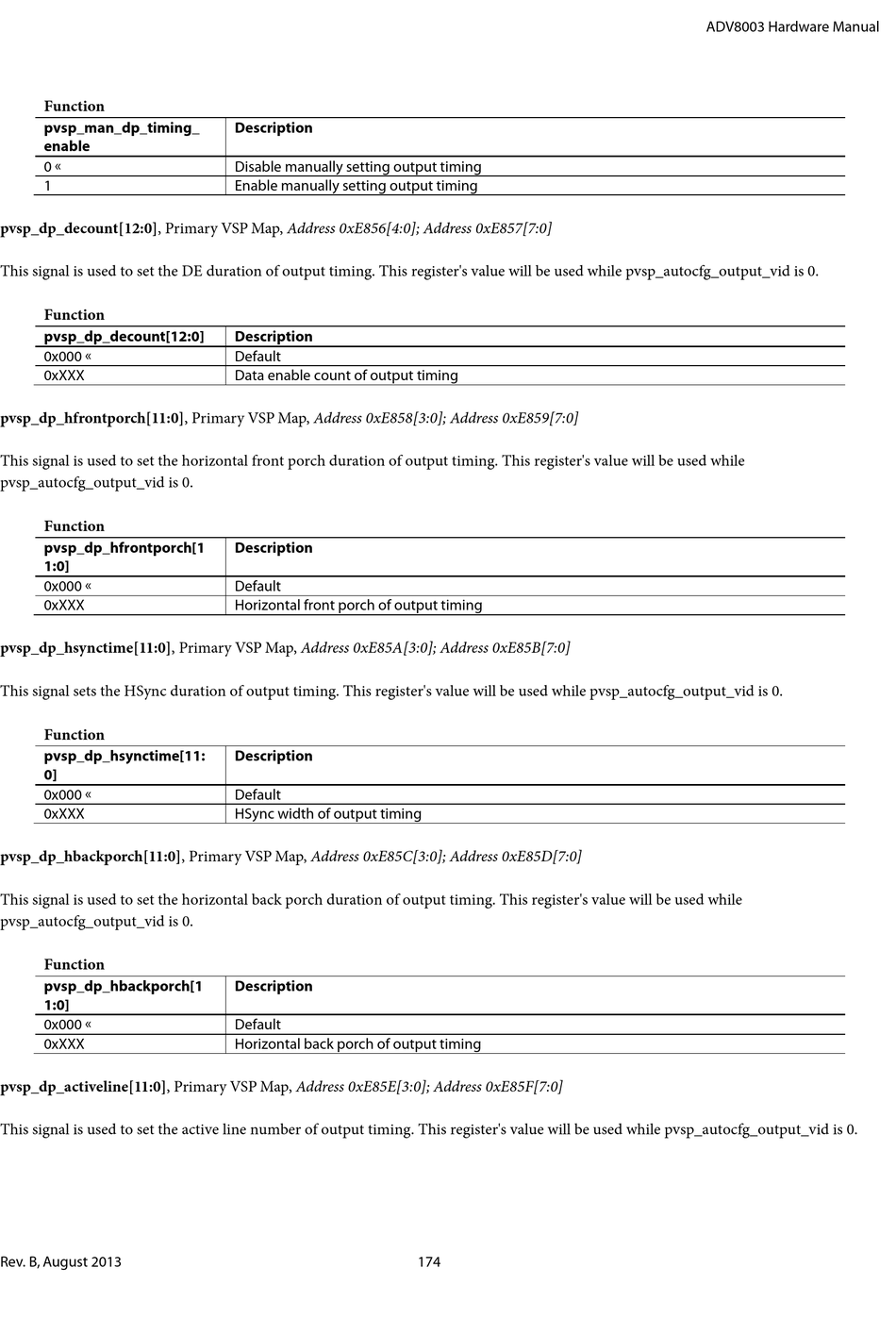

Analog Devices ADV8003 Hardware Manual page 174

Function
pvsp_man_dp_timing_
enable
0 
1
pvsp_dp_decount[12:0], Primary VSP Map, Address 0xE856[4:0]; Address 0xE857[7:0]
This signal is used to set the DE duration of output timing. This register's value will be used while pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_decount[12:0]
0x000 
0xXXX
pvsp_dp_hfrontporch[11:0], Primary VSP Map, Address 0xE858[3:0]; Address 0xE859[7:0]
This signal is used to set the horizontal front porch duration of output timing. This register's value will be used while
pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_hfrontporch[1
1:0]
0x000 
0xXXX
pvsp_dp_hsynctime[11:0], Primary VSP Map, Address 0xE85A[3:0]; Address 0xE85B[7:0]
This signal sets the HSync duration of output timing. This register's value will be used while pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_hsynctime[11:
0]
0x000 
0xXXX
pvsp_dp_hbackporch[11:0], Primary VSP Map, Address 0xE85C[3:0]; Address 0xE85D[7:0]
This signal is used to set the horizontal back porch duration of output timing. This register's value will be used while
pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_hbackporch[1
1:0]
0x000 
0xXXX
pvsp_dp_activeline[11:0], Primary VSP Map, Address 0xE85E[3:0]; Address 0xE85F[7:0]
This signal is used to set the active line number of output timing. This register's value will be used while pvsp_autocfg_output_vid is 0.
Rev. B, August 2013
Description
Disable manually setting output timing
Enable manually setting output timing
Description
Default
Data enable count of output timing
Description
Default
Horizontal front porch of output timing
Description
Default
HSync width of output timing
Description
Default
Horizontal back porch of output timing
174
ADV8003 Hardware Manual
