Data
Enable
HSYNC
a Total number of pixels per line
b Active number of pixels per line
c HSync front porch width in pixel unit
dvi_vsync_polarity, HDMI RX Map, Address 0xE205[4] (Read Only)
This bit is a readback to indicate the polarity of the VSync encoded in the input stream.
Function
dvi_vsync_polarity
0 
1
Data
Enable
HSYNC
VSYNC
Note: Field 1 measurements should not be used for progressive video modes.
Rev. B, August 2013
d
c
e

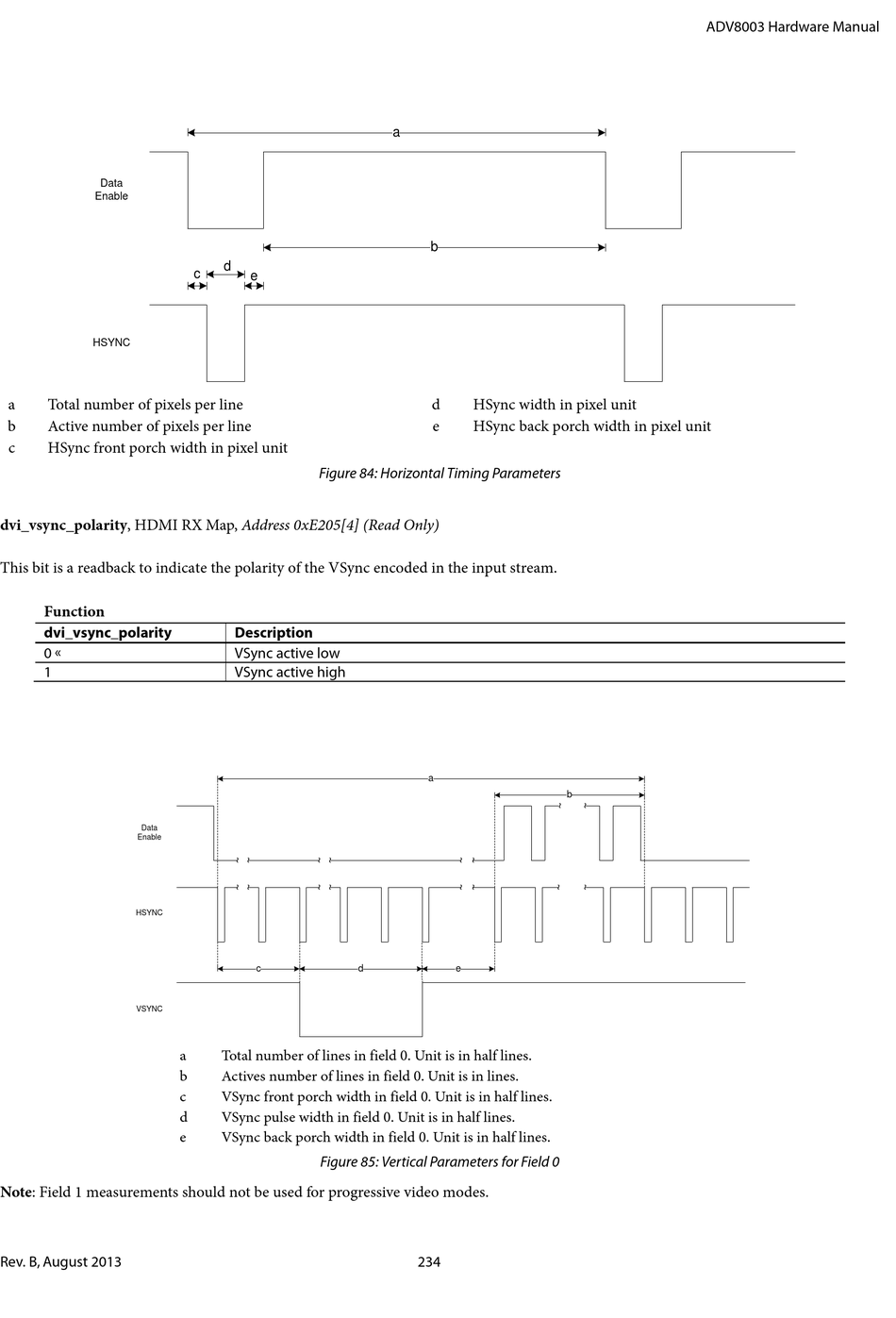

Figure 84: Horizontal Timing Parameters

Description
VSync active low
VSync active high
c
a Total number of lines in field 0. Unit is in half lines.
b Actives number of lines in field 0. Unit is in lines.
c VSync front porch width in field 0. Unit is in half lines.
d VSync pulse width in field 0. Unit is in half lines.
e VSync back porch width in field 0. Unit is in half lines.

Figure 85: Vertical Parameters for Field 0

a
b
d HSync width in pixel unit
e HSync back porch width in pixel unit
a
d e
234
ADV8003 Hardware Manual
b
