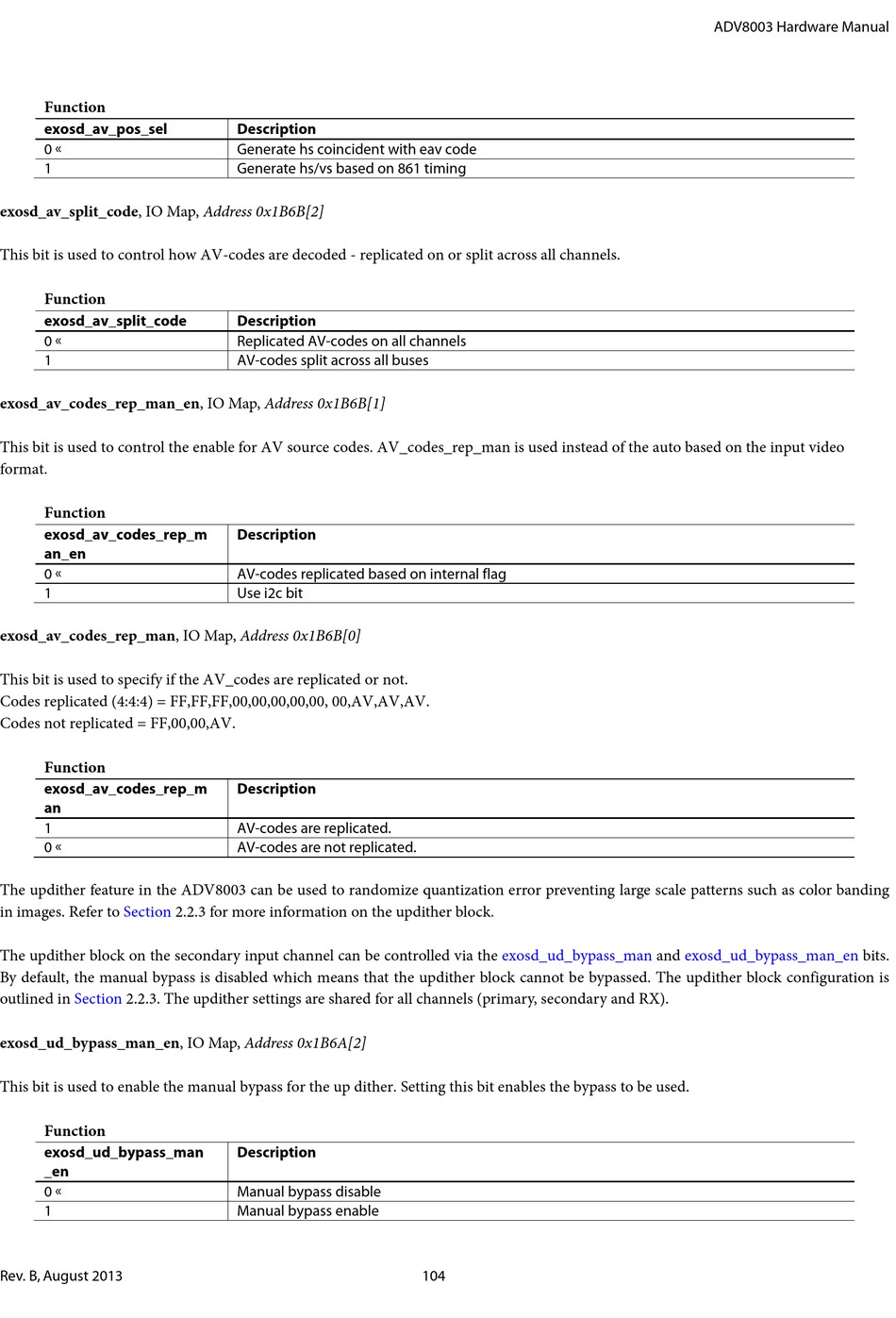

Analog Devices ADV8003 Hardware Manual page 104

Function
exosd_av_pos_sel
0 
1
exosd_av_split_code, IO Map, Address 0x1B6B[2]
This bit is used to control how AV-codes are decoded - replicated on or split across all channels.
Function
exosd_av_split_code
0 
1
exosd_av_codes_rep_man_en, IO Map, Address 0x1B6B[1]
This bit is used to control the enable for AV source codes. AV_codes_rep_man is used instead of the auto based on the input video
format.
Function
exosd_av_codes_rep_m
an_en
0 
1
exosd_av_codes_rep_man, IO Map, Address 0x1B6B[0]
This bit is used to specify if the AV_codes are replicated or not.
Codes replicated (4:4:4) = FF,FF,FF,00,00,00,00,00, 00,AV,AV,AV.
Codes not replicated = FF,00,00,AV.
Function
exosd_av_codes_rep_m
an
1
0 
The updither feature in the ADV8003 can be used to randomize quantization error preventing large scale patterns such as color banding
in images. Refer to Section
The updither block on the secondary input channel can be controlled via the
By default, the manual bypass is disabled which means that the updither block cannot be bypassed. The updither block configuration is
outlined in Section 2.2.3. The updither settings are shared for all channels (primary, secondary and RX).
exosd_ud_bypass_man_en, IO Map, Address 0x1B6A[2]
This bit is used to enable the manual bypass for the up dither. Setting this bit enables the bypass to be used.
Function
exosd_ud_bypass_man
_en
0 
1
Rev. B, August 2013
Description
Generate hs coincident with eav code
Generate hs/vs based on 861 timing
Description
Replicated AV-codes on all channels
AV-codes split across all buses
Description
AV-codes replicated based on internal flag
Use i2c bit
Description
AV-codes are replicated.
AV-codes are not replicated.
2.2.3 for more information on the updither
Description
Manual bypass disable
Manual bypass enable
block.
exosd_ud_bypass_man
104
ADV8003 Hardware Manual
and exosd_ud_bypass_man_en bits.
