UG-707
ADV8005 Hardware Reference Manual
3.4.2.

Reboot Protocol

The reboot protocol is used to reset the PVSP and configure it again using different settings, especially different input timing or output timing.
All registers can be accessed using this protocol. It should be noted that the output video will be interrupted using this protocol.

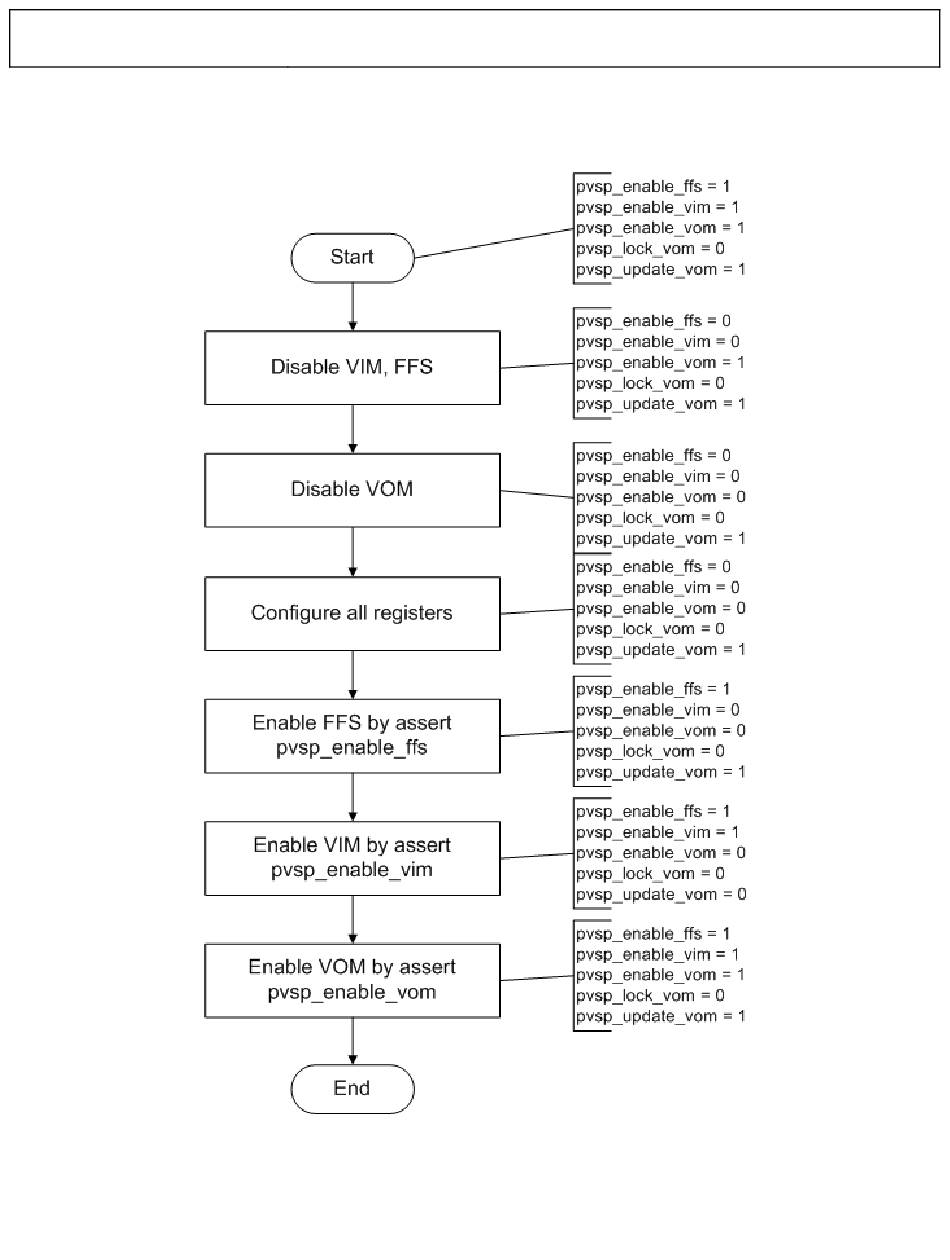

Figure 70: Reboot Protocol Flowchart
Figure 70
shows the process for the reboot protocol for the PVSP. This is exactly the same for the SVSP with the appropriate registers replaced.
Rev. A | Page 154 of 317
