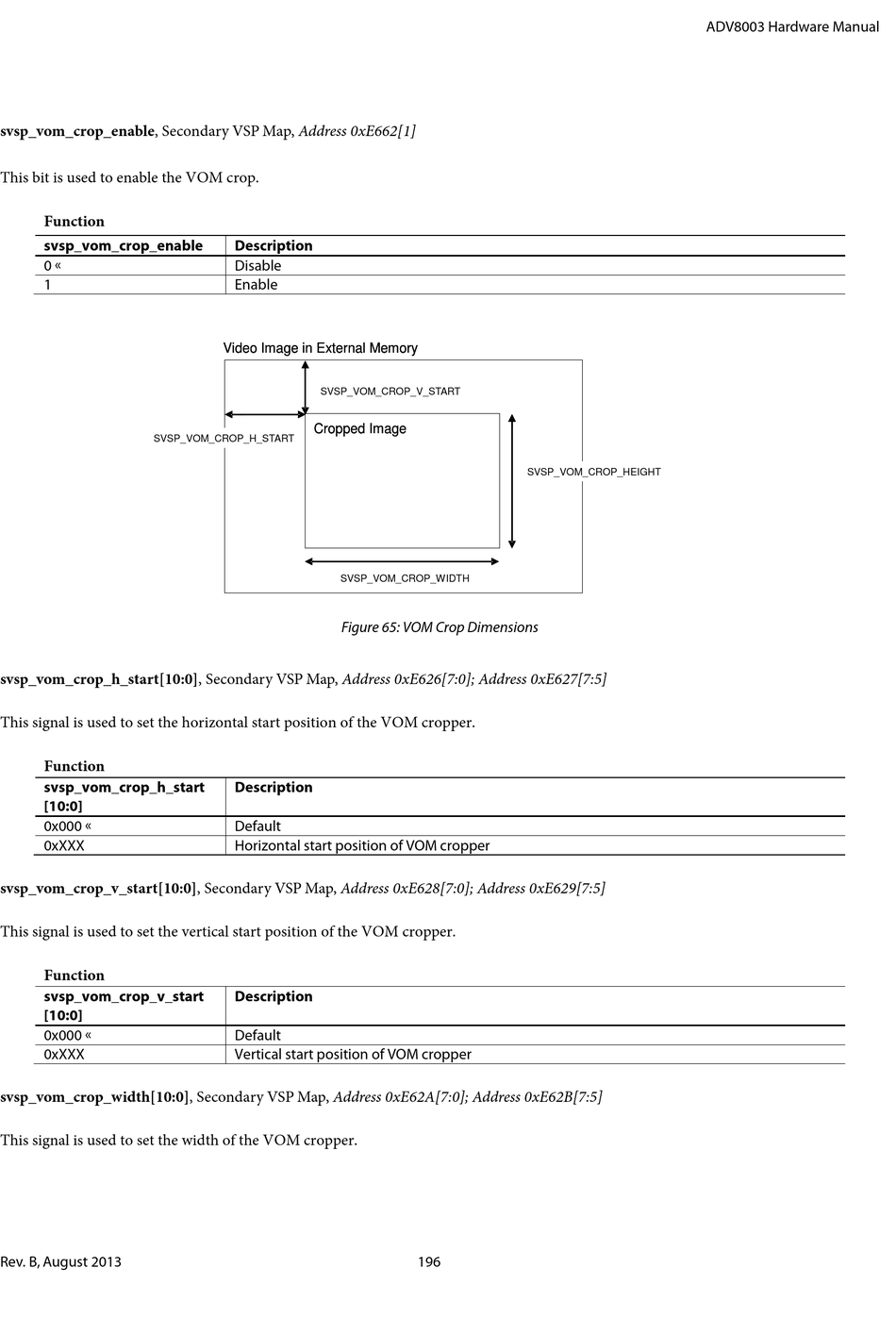

Figure 65: Vom Crop Dimensions - Analog Devices ADV8003 Hardware Manual

svsp_vom_crop_enable, Secondary VSP Map, Address 0xE662[1]
This bit is used to enable the VOM crop.
Function
svsp_vom_crop_enable
0 
1
VSP2D_VOM_CROP_H_START SVSP_VOM_CROP_H_START
svsp_vom_crop_h_start[10:0], Secondary VSP Map, Address 0xE626[7:0]; Address 0xE627[7:5]
This signal is used to set the horizontal start position of the VOM cropper.
Function
svsp_vom_crop_h_start
[10:0]
0x000 
0xXXX
svsp_vom_crop_v_start[10:0], Secondary VSP Map, Address 0xE628[7:0]; Address 0xE629[7:5]
This signal is used to set the vertical start position of the VOM cropper.
Function
svsp_vom_crop_v_start
[10:0]
0x000 
0xXXX
svsp_vom_crop_width[10:0], Secondary VSP Map, Address 0xE62A[7:0]; Address 0xE62B[7:5]
This signal is used to set the width of the VOM cropper.
Rev. B, August 2013
Description
Disable
Enable
Video Image in External Memory Video Image in External Memory
SVSP_VOM_CROP_V_START
Cropped Image Cropped Image
SVSP_VOM_CROP_WIDTH

Figure 65: VOM Crop Dimensions

Description
Default
Horizontal start position of VOM cropper
Description
Default
Vertical start position of VOM cropper
VSP2D_VOM_CROP_HEIGHT SVSP_VOM_CROP_HEIGHT
196
ADV8003 Hardware Manual
