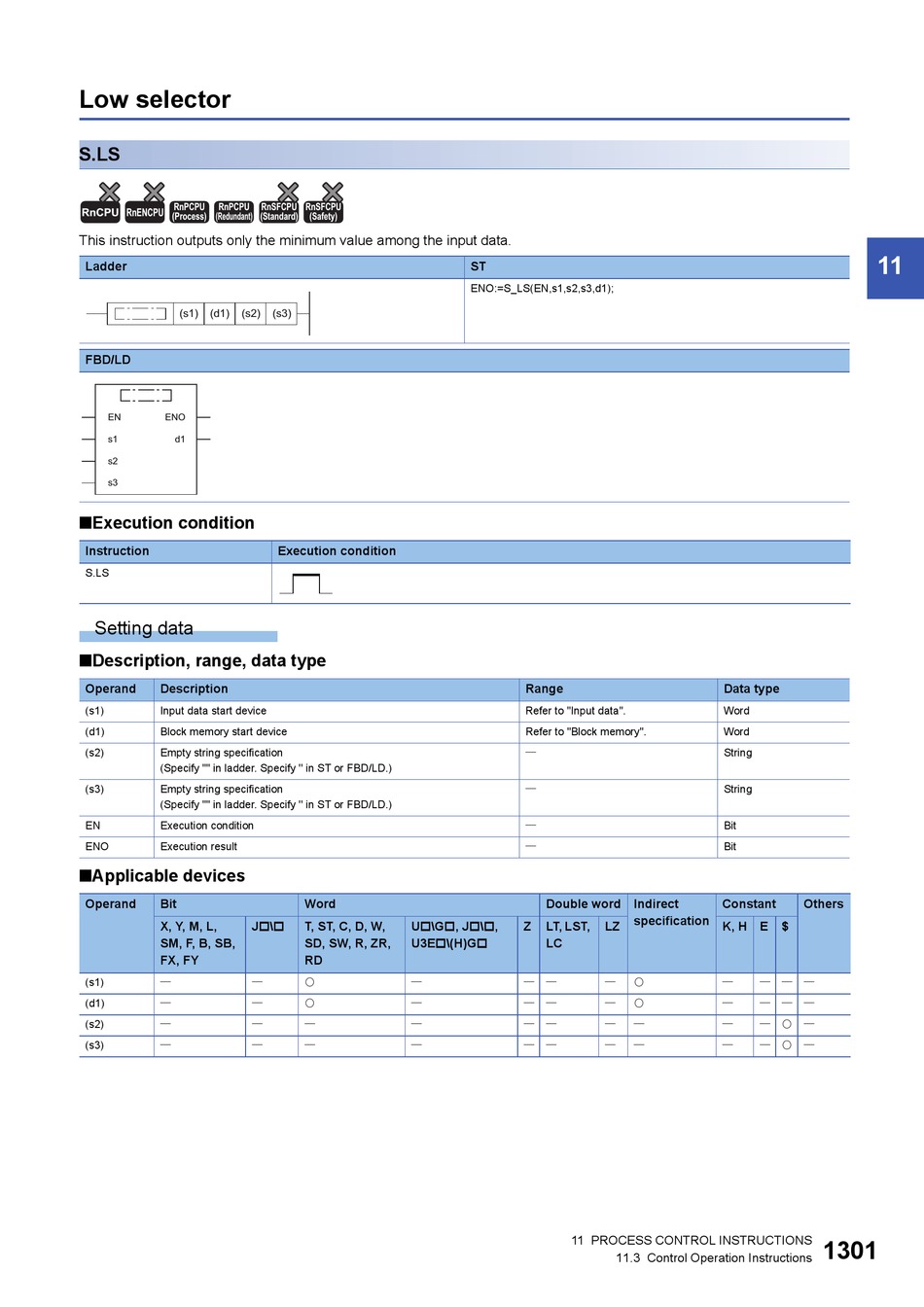

Low selector

S.LS
RnPCPU RnPCPU
RnCPU RnENCPU
(Process) (Redundant)
This instruction outputs only the minimum value among the input data.
Ladder
(s1) (d1) (s2)
FBD/LD
EN ENO
s1 d1
s2
s3
■Execution condition
Instruction
S.LS
Setting data
■Description, range, data type
Operand Description
(s1) Input data start device
(d1) Block memory start device
(s2) Empty string specification
(Specify "" in ladder. Specify '' in ST or FBD/LD.)
(s3) Empty string specification
(Specify "" in ladder. Specify '' in ST or FBD/LD.)
EN Execution condition
ENO Execution result
■Applicable devices
Operand Bit
X, Y, M, L, J\
SM, F, B, SB,
FX, FY
(s1)  
 
(d1)
(s2)  
 
(s3)
RnSFCPU RnSFCPU
(Standard) (Safety)
(s3)
Execution condition
Word
T, ST, C, D, W, U\G, J\,
SD, SW, R, ZR, U3E\(H)G
RD
 
 
 
 
ST
ENO:=S_LS(EN,s1,s2,s3,d1);
Range
Refer to "Input data".
Refer to "Block memory".




Double word Indirect
specification
Z LT, LST, LZ
LC
   
   
   
   
11 PROCESS CONTROL INSTRUCTIONS
11.3 Control Operation Instructions
11
Data type
Word
Word
String
String
Bit
Bit
Constant Others
K, H E $
   
   
   
   
