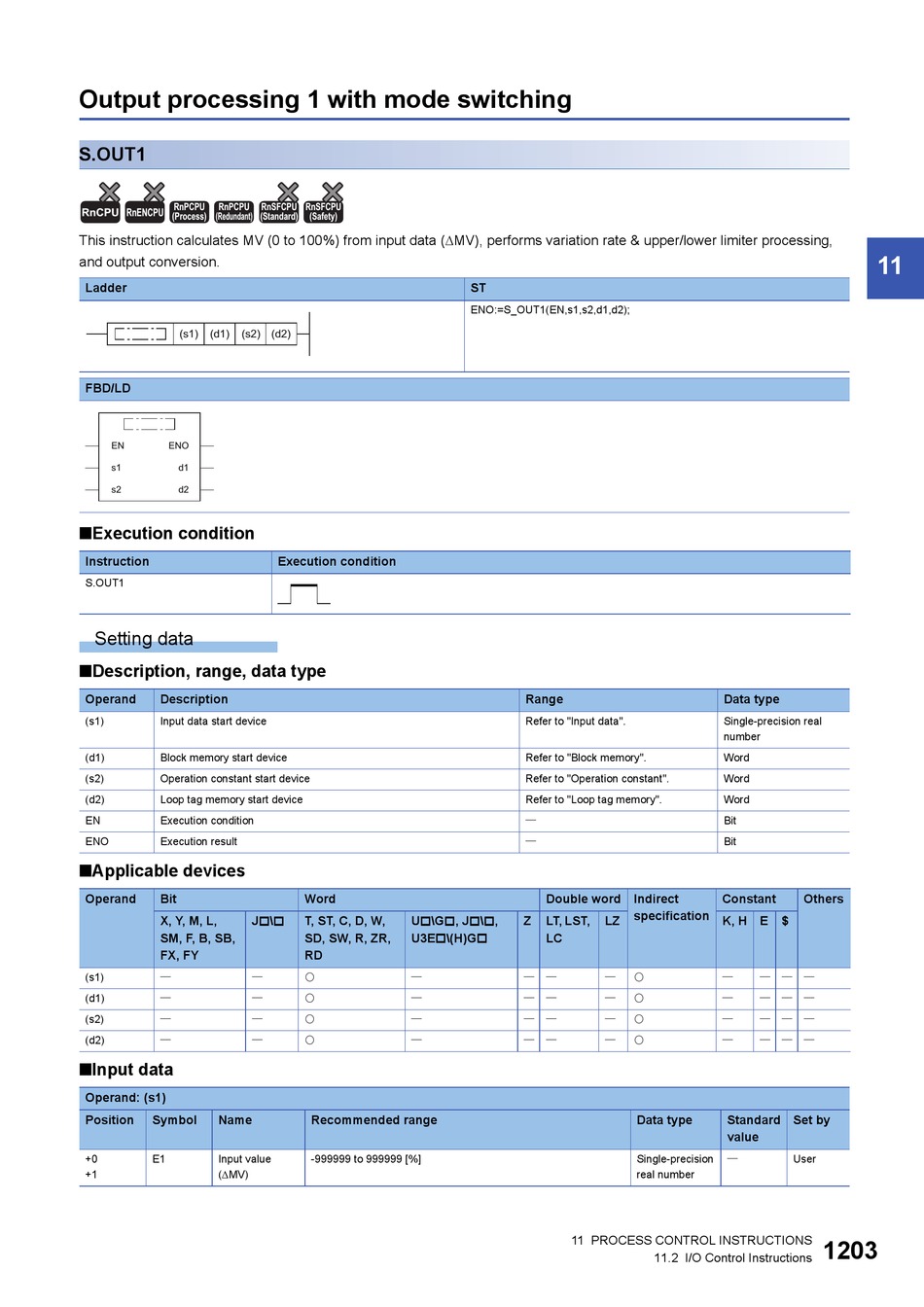

Output processing 1 with mode switching

S.OUT1
RnPCPU RnPCPU
RnCPU RnENCPU
(Process) (Redundant)
This instruction calculates MV (0 to 100%) from input data (MV), performs variation rate & upper/lower limiter processing,
and output conversion.
Ladder
(s1) (d1) (s2) (d2)
FBD/LD
EN ENO
s1 d1
s2 d2
■Execution condition
Instruction
S.OUT1
Setting data
■Description, range, data type
Operand Description
(s1) Input data start device
(d1) Block memory start device
(s2) Operation constant start device
(d2) Loop tag memory start device
EN Execution condition
ENO Execution result
■Applicable devices
Operand Bit
X, Y, M, L, J\
SM, F, B, SB,
FX, FY
(s1)  
 
(d1)
(s2)  
 
(d2)
■Input data
Operand: (s1)
Position Symbol Name
+0 E1 Input value
+1 (MV)
RnSFCPU RnSFCPU
(Standard) (Safety)
Execution condition
Word
T, ST, C, D, W, U\G, J\,
SD, SW, R, ZR, U3E\(H)G
RD
 
 
 
 
Recommended range
-999999 to 999999 [%]
ST
ENO:=S_OUT1(EN,s1,s2,d1,d2);
Range
Refer to "Input data".
Refer to "Block memory".
Refer to "Operation constant".
Refer to "Loop tag memory".


Double word Indirect
specification
Z LT, LST, LZ
LC
   
   
   
   
Data type
Single-precision
real number
11 PROCESS CONTROL INSTRUCTIONS
Data type
Single-precision real
number
Word
Word
Word
Bit
Bit
Constant Others
K, H E $
   
   
   
   
Standard Set by
value

User
1203
11.2 I/O Control Instructions
11
