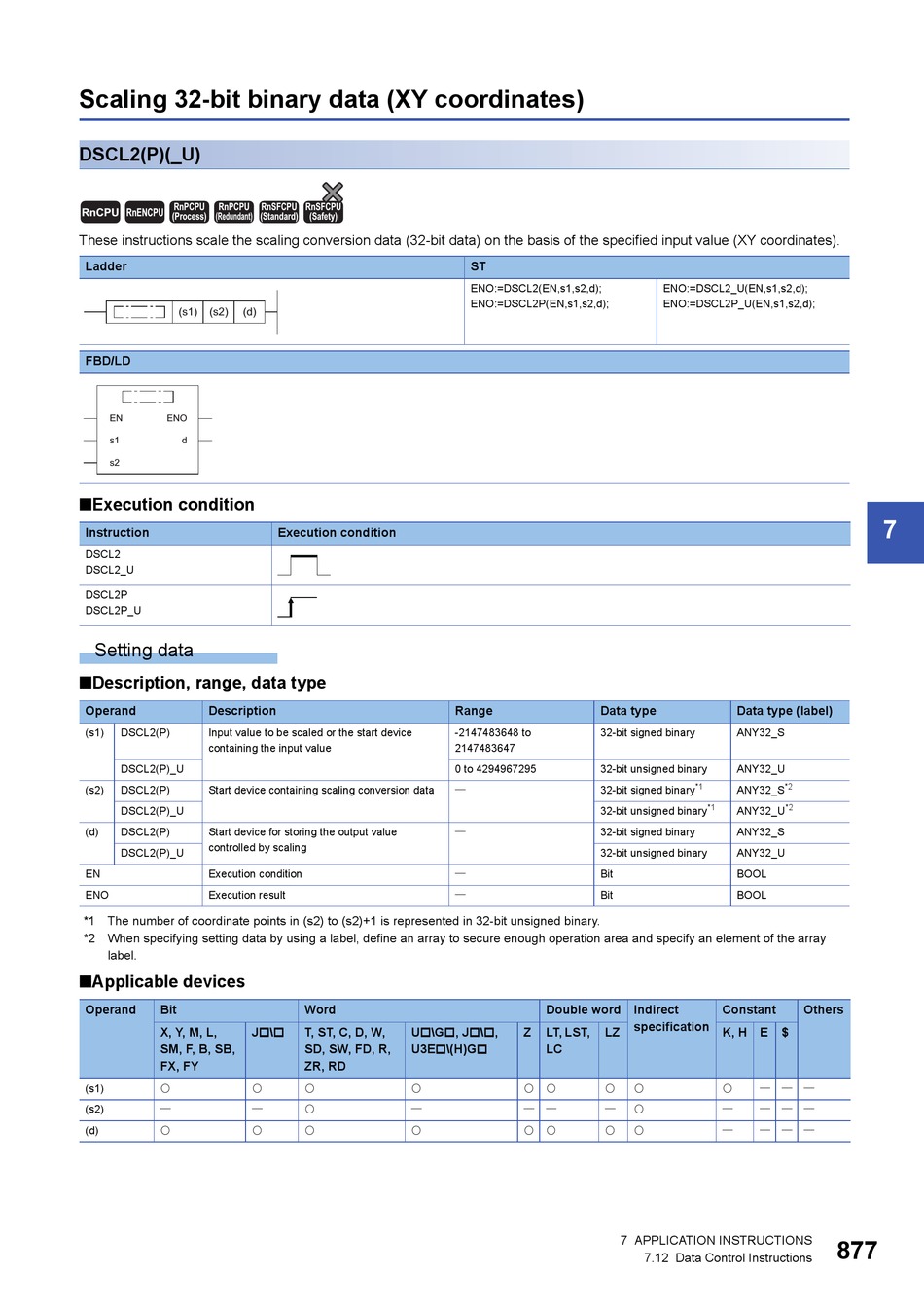

Scaling 32-Bit Binary Data (Xy Coordinates) - Mitsubishi Electric MELSEC iQ-R Series Programming Manual

Scaling 32-bit binary data (XY coordinates)

DSCL2(P)(_U)
RnPCPU RnPCPU
RnCPU RnENCPU
(Process) (Redundant)
These instructions scale the scaling conversion data (32-bit data) on the basis of the specified input value (XY coordinates).
Ladder
(s1) (s2) (d)
FBD/LD
EN ENO
s1 d
s2
■Execution condition
Instruction
DSCL2
DSCL2_U
DSCL2P
DSCL2P_U
Setting data
■Description, range, data type
Operand Description
(s1) DSCL2(P) Input value to be scaled or the start device
containing the input value
DSCL2(P)_U
(s2) DSCL2(P) Start device containing scaling conversion data
DSCL2(P)_U
(d) DSCL2(P) Start device for storing the output value
controlled by scaling
DSCL2(P)_U
EN Execution condition
ENO Execution result
*1 The number of coordinate points in (s2) to (s2)+1 is represented in 32-bit unsigned binary.
*2 When specifying setting data by using a label, define an array to secure enough operation area and specify an element of the array
label.
■Applicable devices
Operand Bit
X, Y, M, L, J\
SM, F, B, SB,
FX, FY
(s1)  
 
(s2)
(d)  
RnSFCPU RnSFCPU
(Standard) (Safety)
Execution condition
Word
T, ST, C, D, W, U\G, J\,
SD, SW, FD, R, U3E\(H)G
ZR, RD
 
 
 
ST
ENO:=DSCL2(EN,s1,s2,d);
ENO:=DSCL2P(EN,s1,s2,d);
Range Data type
-2147483648 to 32-bit signed binary
2147483647
0 to 4294967295 32-bit unsigned binary

32-bit signed binary
32-bit unsigned binary

32-bit signed binary
32-bit unsigned binary

Bit

Bit
Double word Indirect
Z LT, LST, LZ
LC
  
  
  
7 APPLICATION INSTRUCTIONS
ENO:=DSCL2_U(EN,s1,s2,d);
ENO:=DSCL2P_U(EN,s1,s2,d);
Data type (label)
ANY32_S
ANY32_U
*1 *2
ANY32_S
*1 *2
ANY32_U
ANY32_S
ANY32_U
BOOL
BOOL
Constant Others
specification
K, H E $
    
    
    
