9R – 10 BODY FRONT END

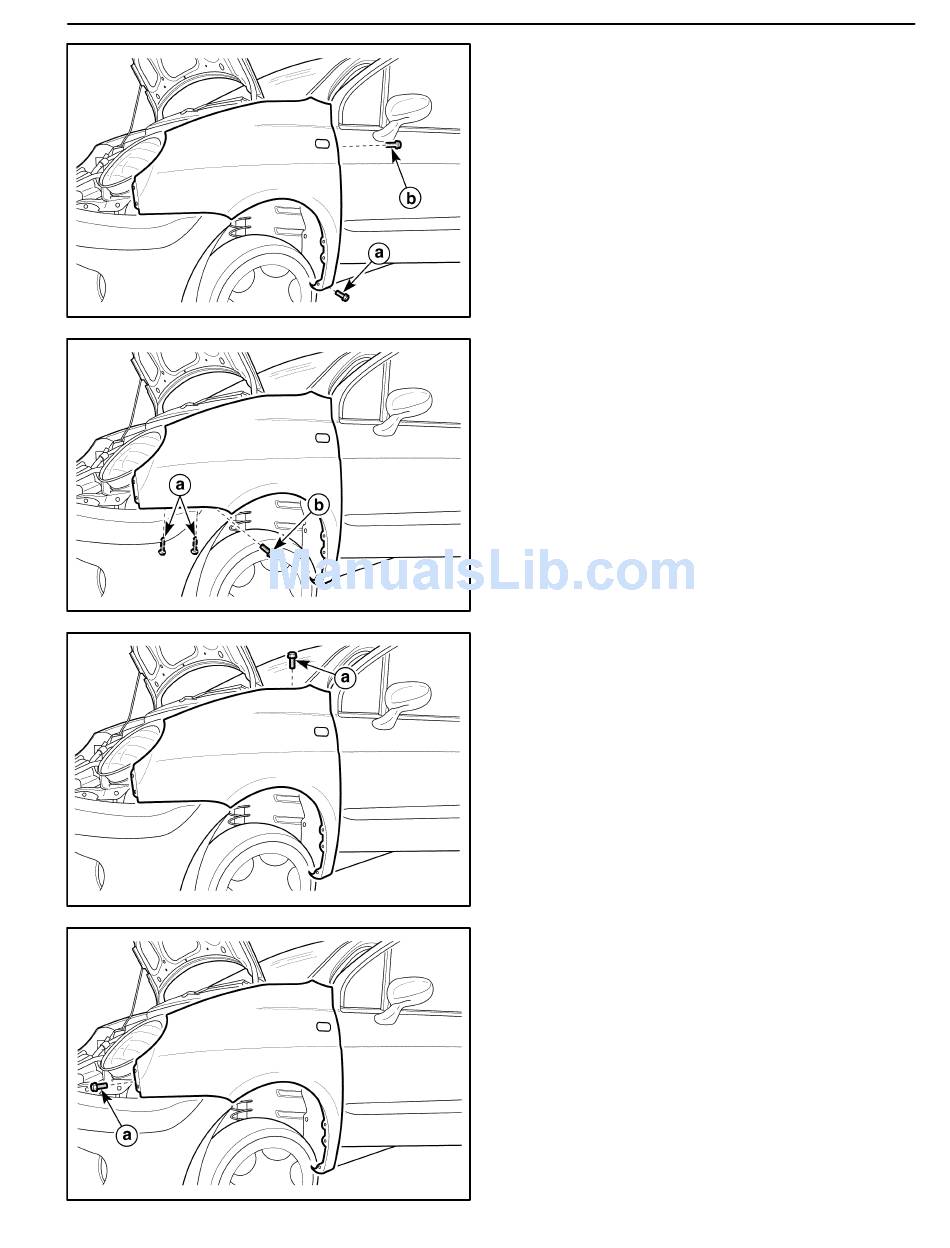

3. Remove the bolt at the base of the fender.
a. Fender mounting lower bolt.
4. Open the front door. Remove the bolt on the A–pillar.
b. Fender mounting bolt.
D19C540A
5. Remove the screws on the side of the front bumper
fascia.
a. Bumper fascia side bolts.
6. Remove the bolt under the fender.
b. Fender mounting bolt.
D19C541A
7. Lower the vehicle.
8. Take off the cowl vent grille. Remove the bolt on the
top of the fender.
a. Fender mounting bolt.
D19C542A
9. Remove the front bumper spacer. Refer to Section
9M, Exterior Trim.
10. Remove the fender front bolt.
a. Fender front bolt.
D19C543A
DAEWOO M-150 BL2
