9P – 14 DOORS

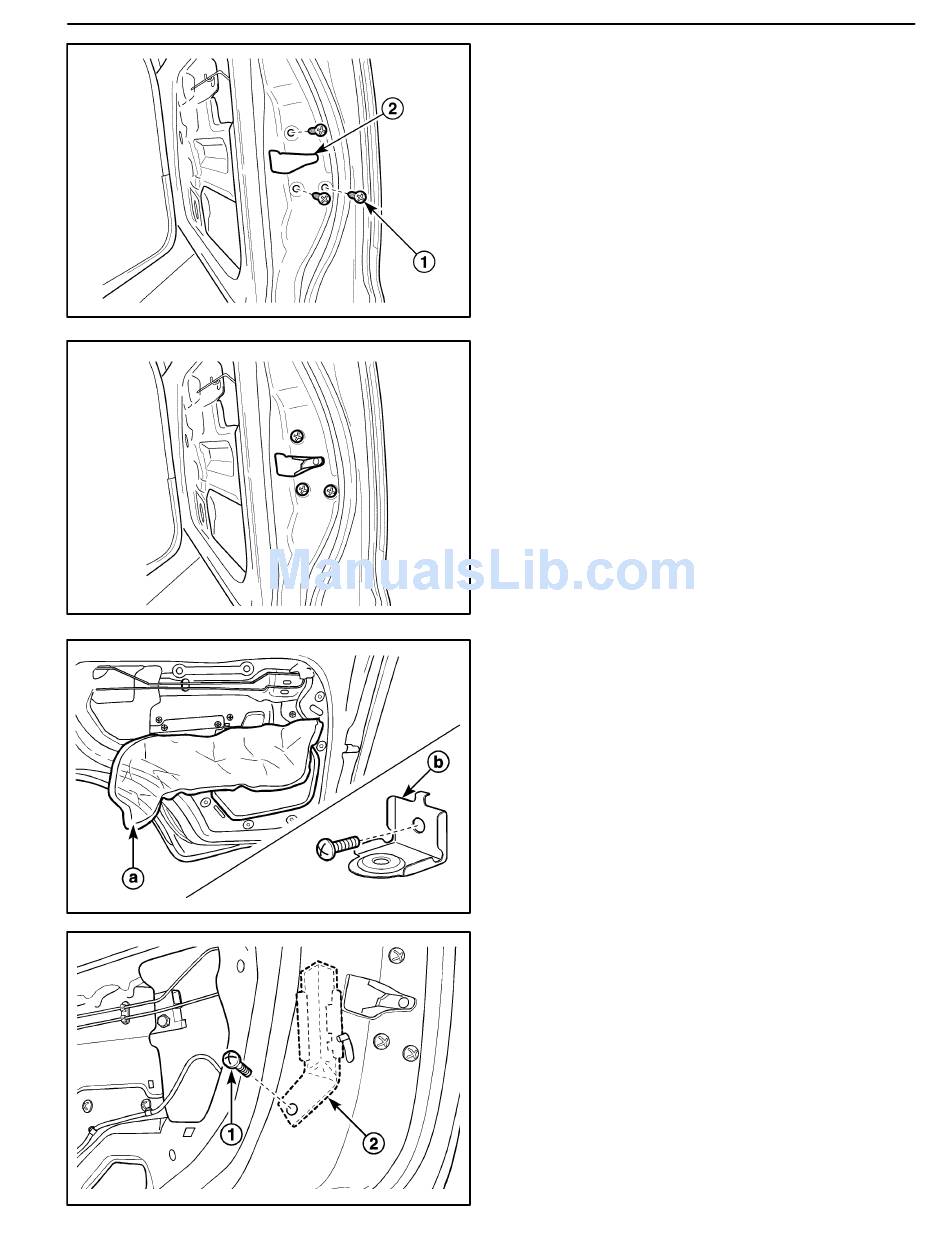

4. Remove the front door lock.
D Remove the screws (1).
D Remove the front door lock (2).
Important: Disconnect the actuator connector, if
equipped with the central door lock system.
D109C584
Installation Procedure
Notice: Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.
1. Install the front door lock with screws.
Important: Connect the actuator connector if equipped
with the central door lock system.
2. Connect the outside door handle rod and the key rod
to the door lock.
3. Install the seal trim. Refer to "Door Seal Trim" in this
section.
4. Connect the negative battery cable, if equipped with
D109C585
the central door lock system.

CHILDPROOF REAR DOOR LOCK

Removal Procedure
1. Disconnect the negative battery cable if equipped
with the central door lock system.
2. Remove the door trim panel. Refer to Section 9G, In-
terior Trim.
3. Remove the door seal trim. Refer to "Door Seal Trim"
in this section.
a. Door seal trim.
b. Door pocket handle bracket.
Important: In case of the deluxe type, remove the seal
trim after removing the door pocket handle bracket.
D109C566
4. Remove the guide piece.
D Remove the screw (1).
D Remove the guide piece (2).
D109C567
DAEWOO M-150 BL2
