Sun Visors - Daewoo MATIZ Service Manual

9Q – 6 ROOF

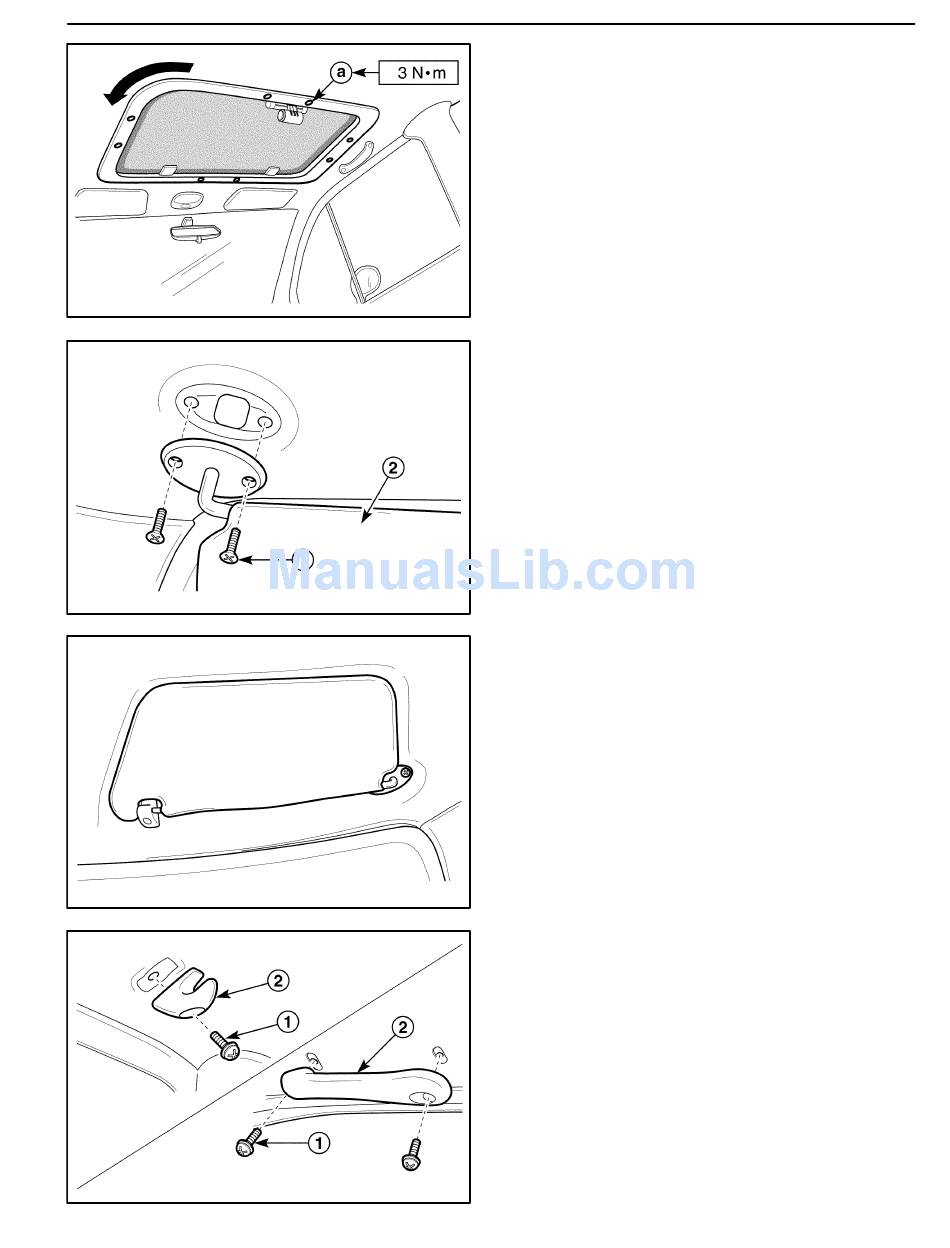

Installation Procedure
1. Install the upper sunroof frame.
2. Install the lower sunroof frame with the screws (a).
3. Install the inside sunroof molding.
4. Install the screen with the clips and the lock.
Tighten
Tighten the screws to 3 NSm (27 lb-in).
Notice: When installing the lower sunroof frame, make
sure to tighten the screws previously as shown the fig-
ure and tighten all the screws.
D19C561A

SUN VISORS

Removal Procedure
1. Remove the sun visors.
D Remove the screws (1).
D Remove the sun visors (2).
D109C562
Installation Procedure
1. Install the sun visors with the screws.
D109C563
PASSENGER ASSIST HANDLE OR
THE COAT HOOK
Removal Procedure
1. Remove the passenger assist handle or the coat
hook from the headliner.
D Remove the screws (1).
D Remove the coat hook or the assist handle (2).
D109C564
DAEWOO M-150 BL2
