DAEWOO M-150 BL2

MANUAL SUNROOF

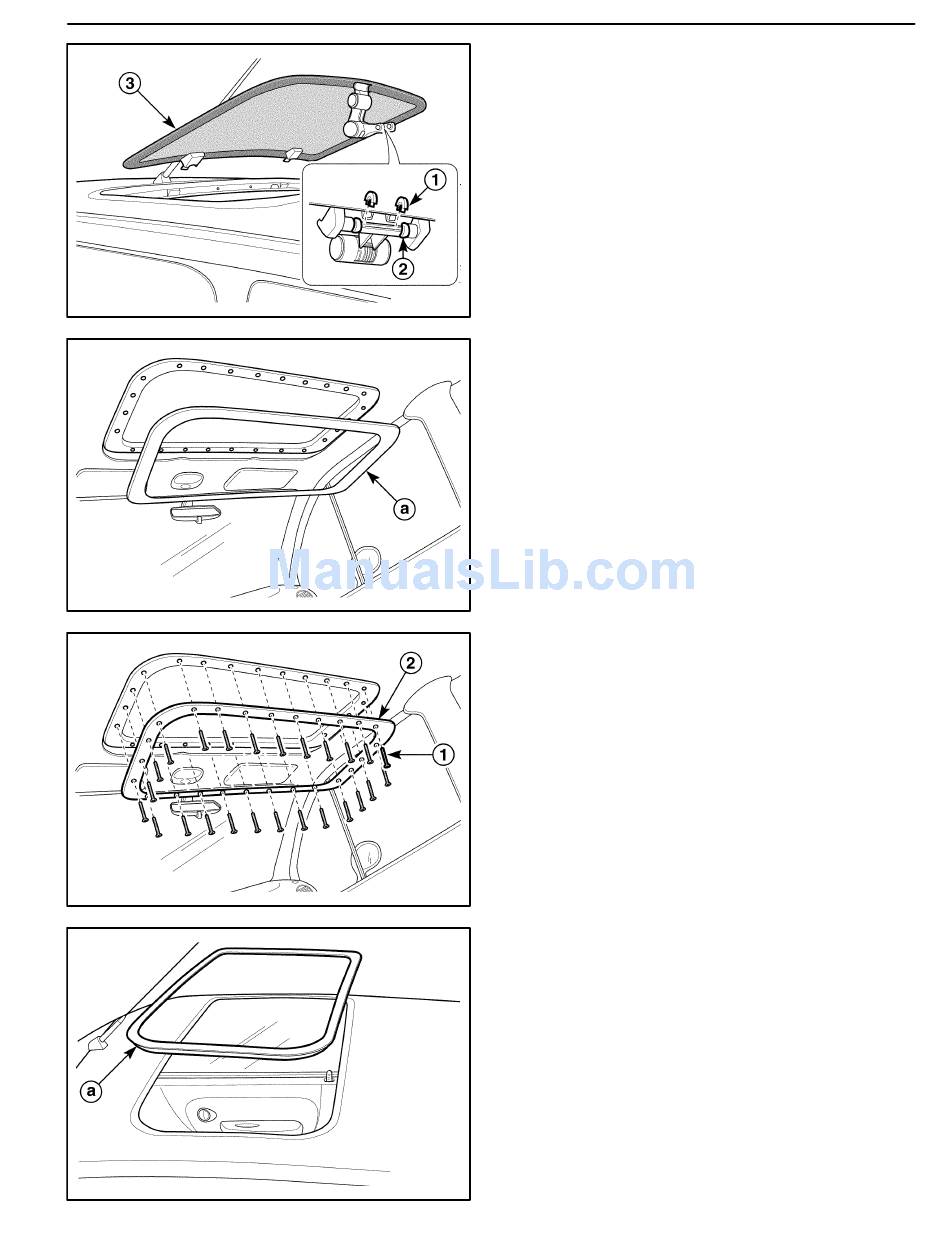

Removal Procedure
1. Remove the sunroof screen.
D Remove the clips (1).
D Remove the lock (2).
D Remove the screen (3).
D109C557
2. Remove the inside sunroof molding in the passenger
compartment.
a. Inside sunroof molding.
D109C558
3. Remove the lower sunroof frame.
D Remove the screws (1).
D Remove the lower sunroof frame (2).
D109C559
4. Remove the upper sunroof frame.
a. Upper sunroof frame.
D109C560
ROOF 9Q – 5
