Level 1
Level 2
Level 3
Level 4
DST MCS 4000
MCU
•
DST MCS 4000 MCUs connect as endpoints to the RMXs or MGCs on
higher levels.
RMX

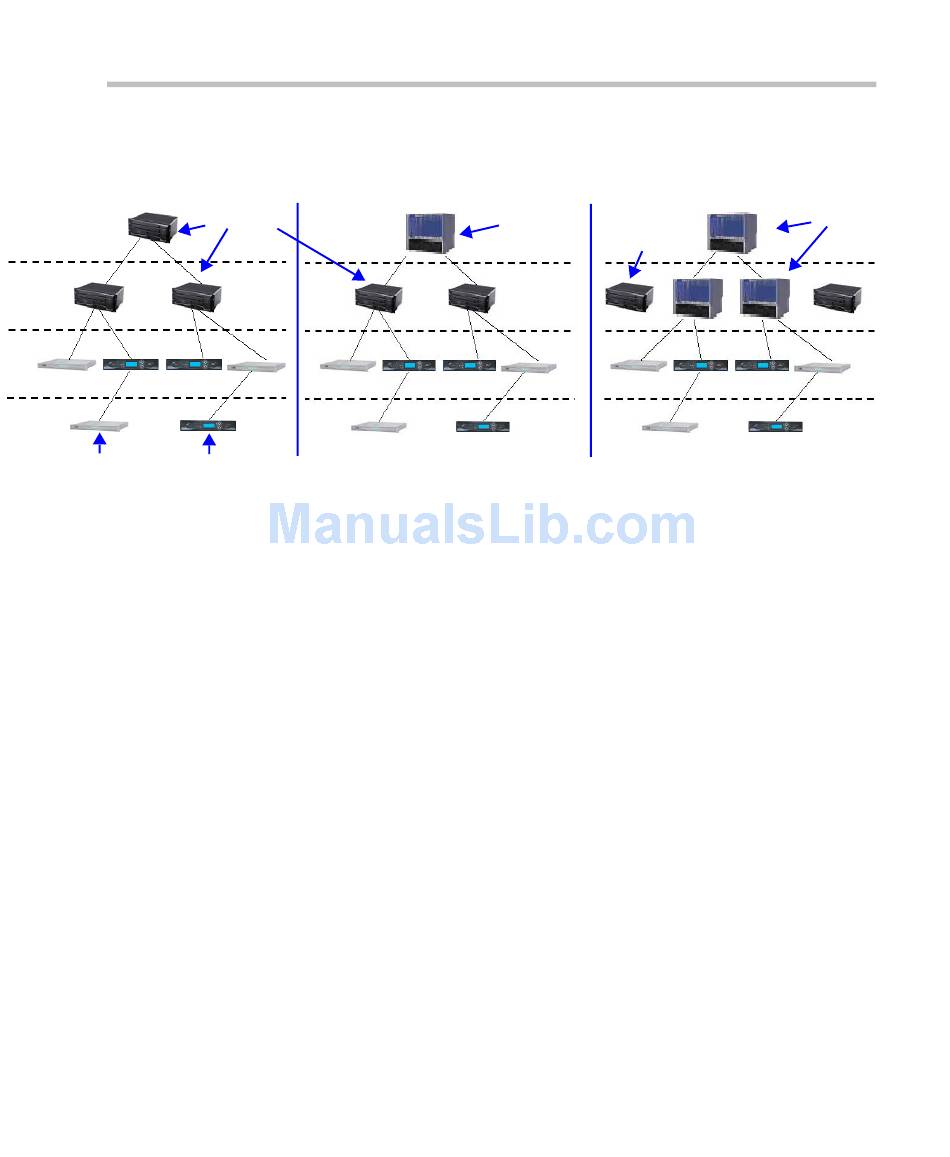

Figure 3-3
MIH Cascade Levels
MIH Cascading Guidelines
Master and Slave Conferences
•
In MIH Cascading conferences, although there are multiple levels of
Master and Slave relationships between conferences, the conference
that runs on the MCU on level 1 of the hierarchy must be the Master
for the entire cascading session. When an MGC is part of the
cascading topology, it must be set as Level 1 MCU, unless MGC
Version 9.0.4 is installed.
•
Conferences running on MCUs on levels 2 and 3 and can be both
Masters and Slaves to conferences running on MCUs on levels above
and below them.
•
All conferences running on MCUs on level 4 are Slave conferences.
•
When the DST MCS 4000 is on level 3 and acting as slave to level 2,
the RMX on level 2 must dial out to it in order for the DST MCS 4000
to be identified as slave. The link between the two MCU (dial out
participant) is defined as a standard participant and not as a
cascading link.
Polycom RMX 1500/2000/4000 Administrator's Guide
MGC
RMX
or
For more information about this
configuration, see the relevant MGC
documentation.
MGC
or
3-37
