Chapter 3 - Defining Network Services
3-26
To define an NFAS Network Service:
1.

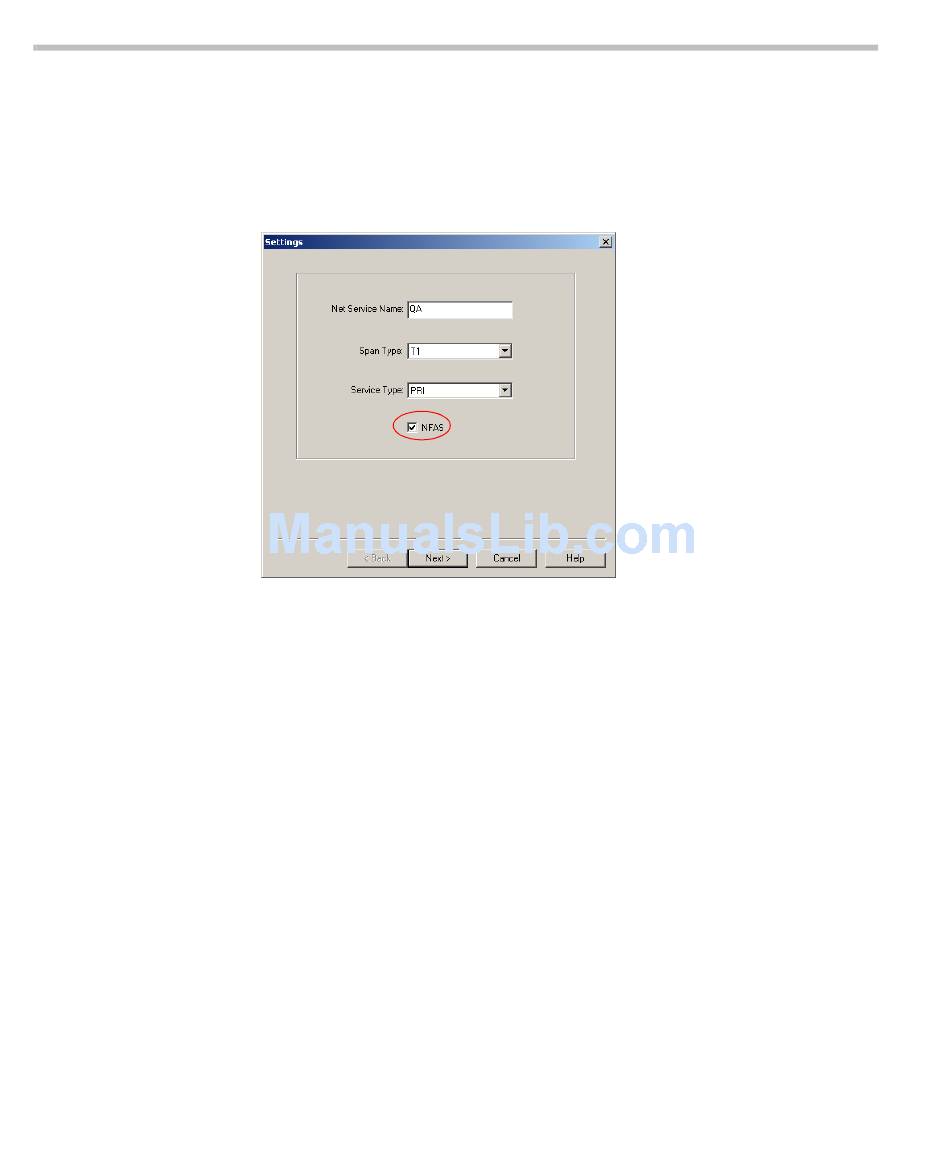

In the Settings dialog box select the NFAS check box.
2.
Define the remaining settings parameters as described for standard PRI
lines. For details, see "Settings Dialog Box" on page 3-4.
3.
Select Next.
The PRI Settings dialog box opens.
Define the service provider's parameters as for standard PRI lines. For
details, see "PRI Settings Dialog Box" on page 3-6.
4.
Select Next.
The Span Definition dialog box opens.
Define the technical span parameters as for standard PRI lines. For
details, see "Span Definition Dialog Box" on page 3-10.
5.
Select Next.
