Polycom MGC Administrator Administrator's Manual page 560

Appendix D: The Falcon Diagnostic Tool
D-18

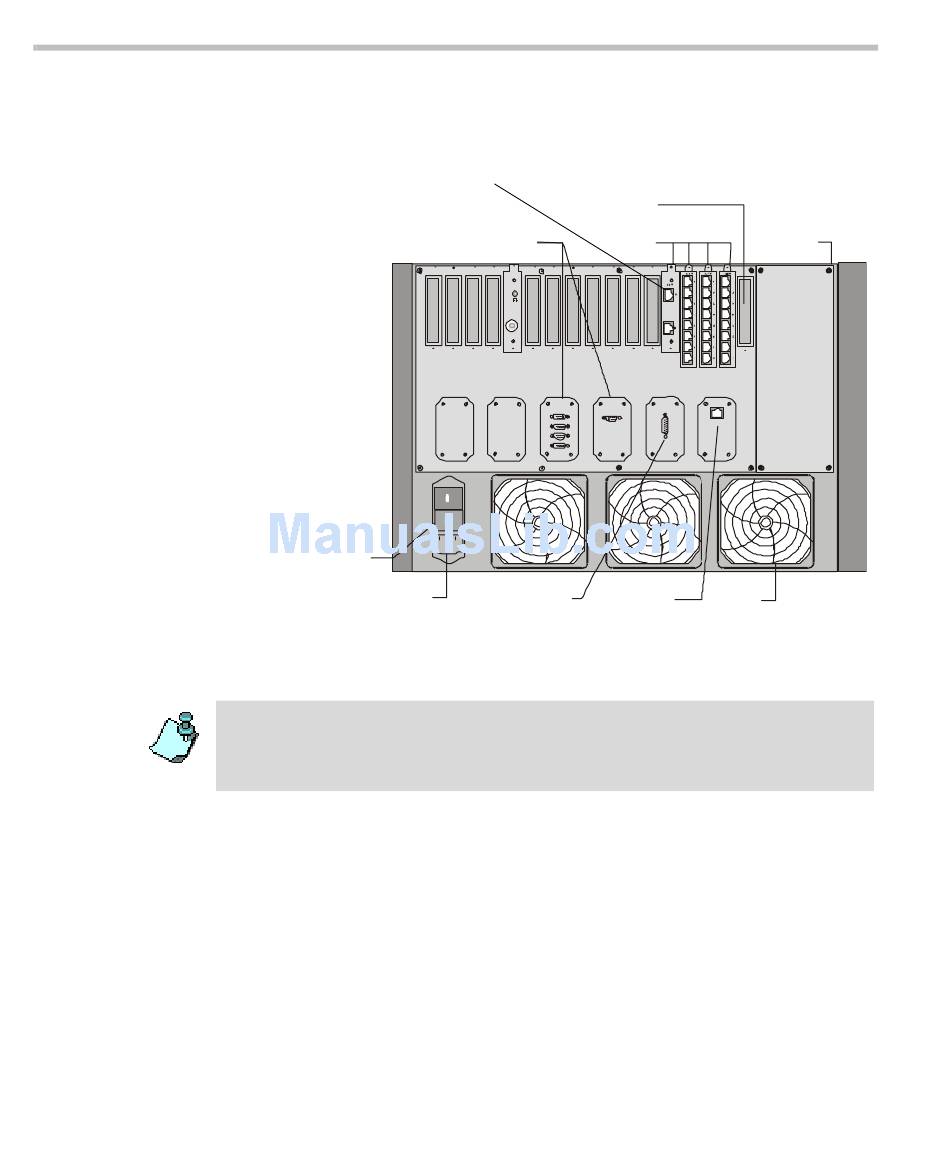

2. Connect a LAN cable to the I/O port on the back of any IP+ card to be
tested.
Main Switch
and Circuit Breaker
AC Inlet
Running the Tests at the MCU Level
To run the diagnostic tests:
The LAN test and the ISDN Loop test are automatically run at the MCU level
testing, so connect the ISDN Loopback and LAN cables to the MCU before
running the tests. For more details, see "Connecting the LAN and ISDN
Loopback cables" on page D-15.
1. Connect to all the MCUs that must be tested.
2. In the Test Options box, select the test mode. For a detailed description
of the three modes, see "Test Options Box" on page D-11.
For a description of how to connect the LAN or ISDN Loopback cables,
see "Connecting the LAN and ISDN Loopback cables" on page D-15.
At the MCU level, the LAN test is automatically run and therefore, the IP
Test fields must be filled in. For a detailed description of the IP Test
fields, see "IP Test Box" on page D-11.
3. Select a test mode in the Test Options box. For a description of the test
selection options, see "Test Selection" on page D-11.
Insert LAN cable to I/O port
Slot A
RS232 Network
Connectors Connectors
MUSIC
LINE IN
COM COM 1
Dry Contacts RJ45 Connector
Main Control
Module Cover
ALARMS LAN
10/100 Mbits
Fan
