Chapter 3 - Defining Network Services
3-22

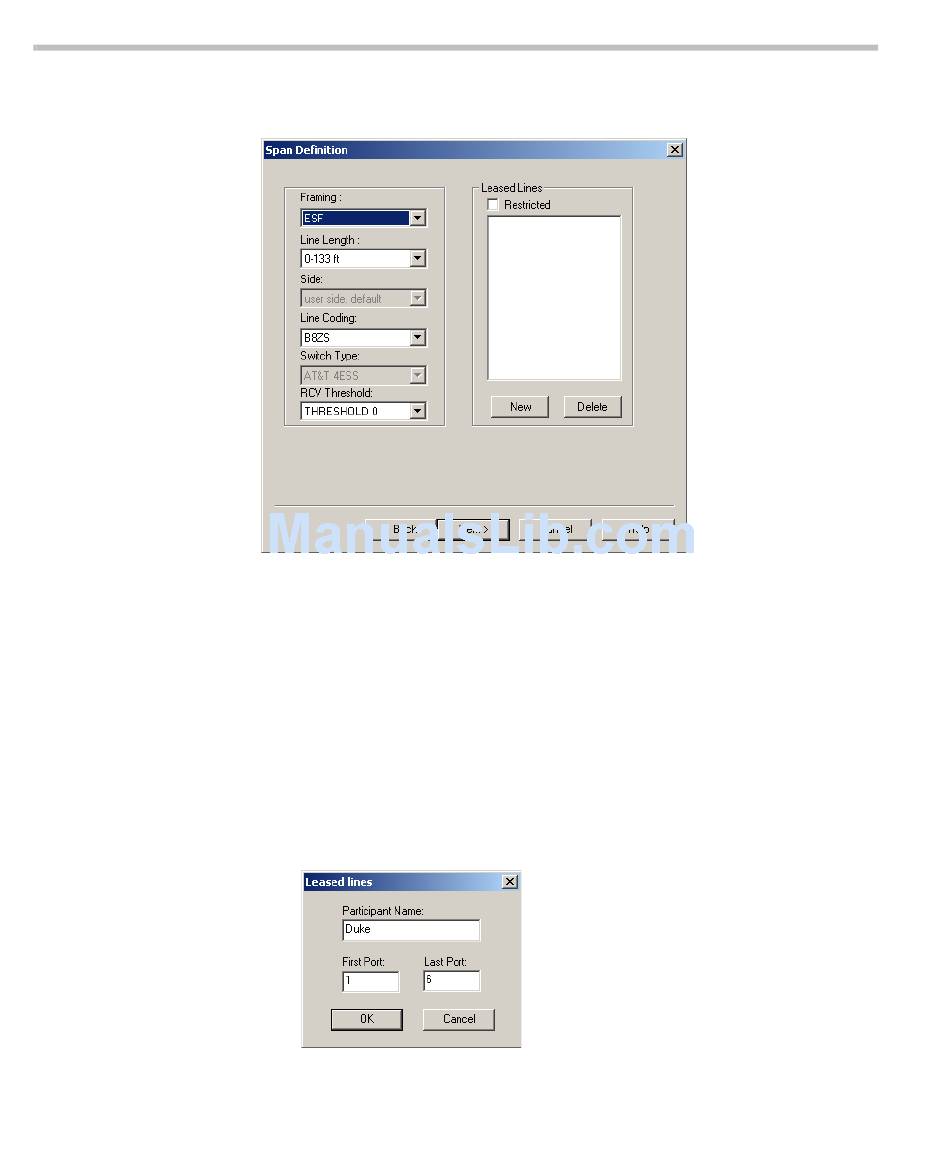

The Span Definition dialog box opens.
6.
Define the applicable span technical properties in the left pane of the
dialog box. For details, see "Span Definition Dialog Box" on page 3-10.
The Leased Lines pane of the Span Definition dialog box is used to
configure leased lines. The Leased Lines pane is active only if you have
selected one of the leased lines options in the Service Type field in the
Settings dialog box.
To add lines:
a.
In the Span Definition dialog box, Leased Line pane, click the New
button.
The Leased Lines dialog box opens:
