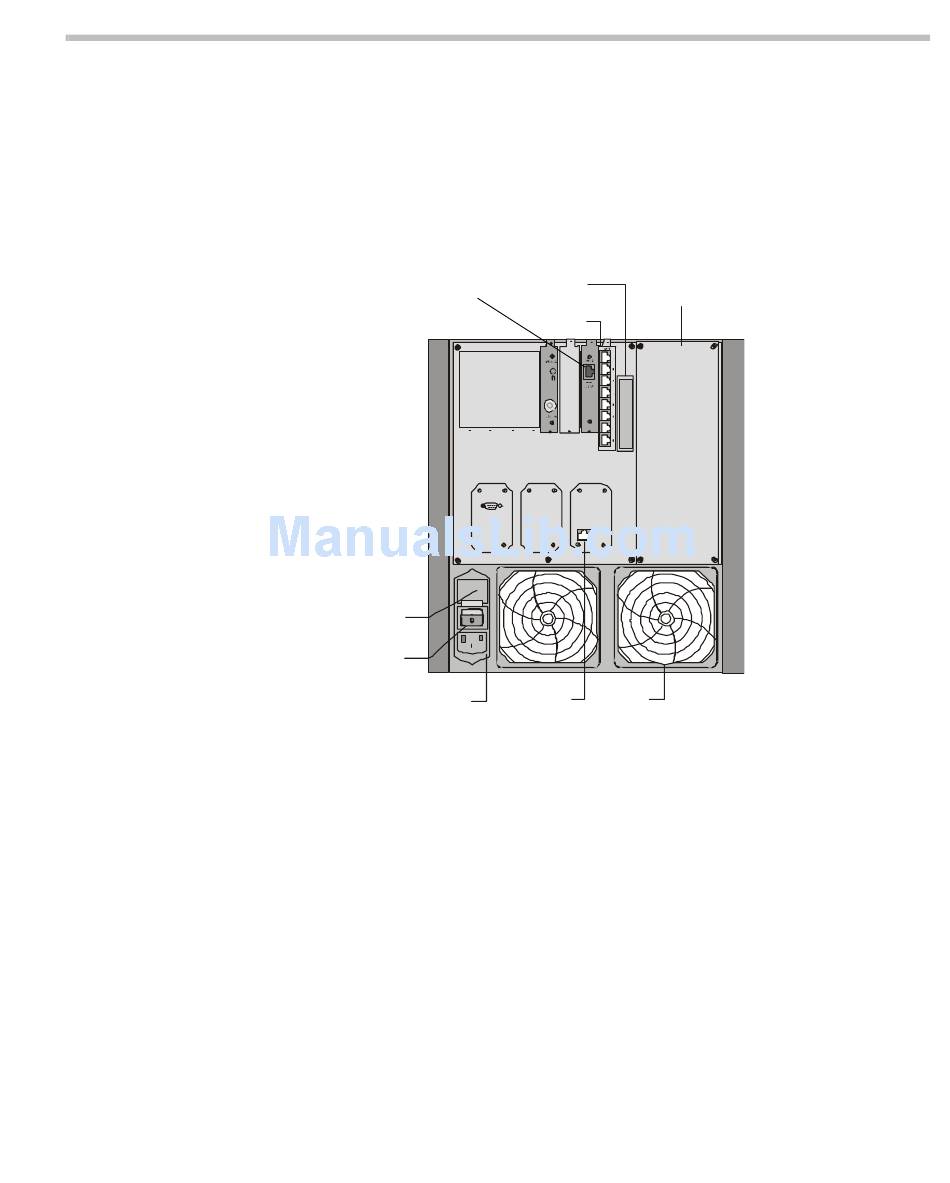

To connect the LAN cable to an MGC-50 unit:
1.
Ensure that the Control LAN cable is connected to the RJ 45 Connector
port.
2.
Connect a LAN cable to the I/O port of any installed IP+ card. This is
necessary to run the diagnostic tests on the installed IP+ cards. There is
no ISDN Loop test on an MGC-50 or MGC-100.
Insert LAN cable
to I/O port
Fuse
Main Switch
AC Inlet
To connect the LAN cable to an MGC-100 unit:
1.
Ensure that the Control LAN cable is connected to the RJ 45 Connector
port.
Slot A
Main Control
Module Cover
IO Card
COM 1
LAN
Fan
RJ45
Connector
MGC Administrator's Guide
D-17
