Chapter 3 - Defining Network Services

Data Flow

3-114

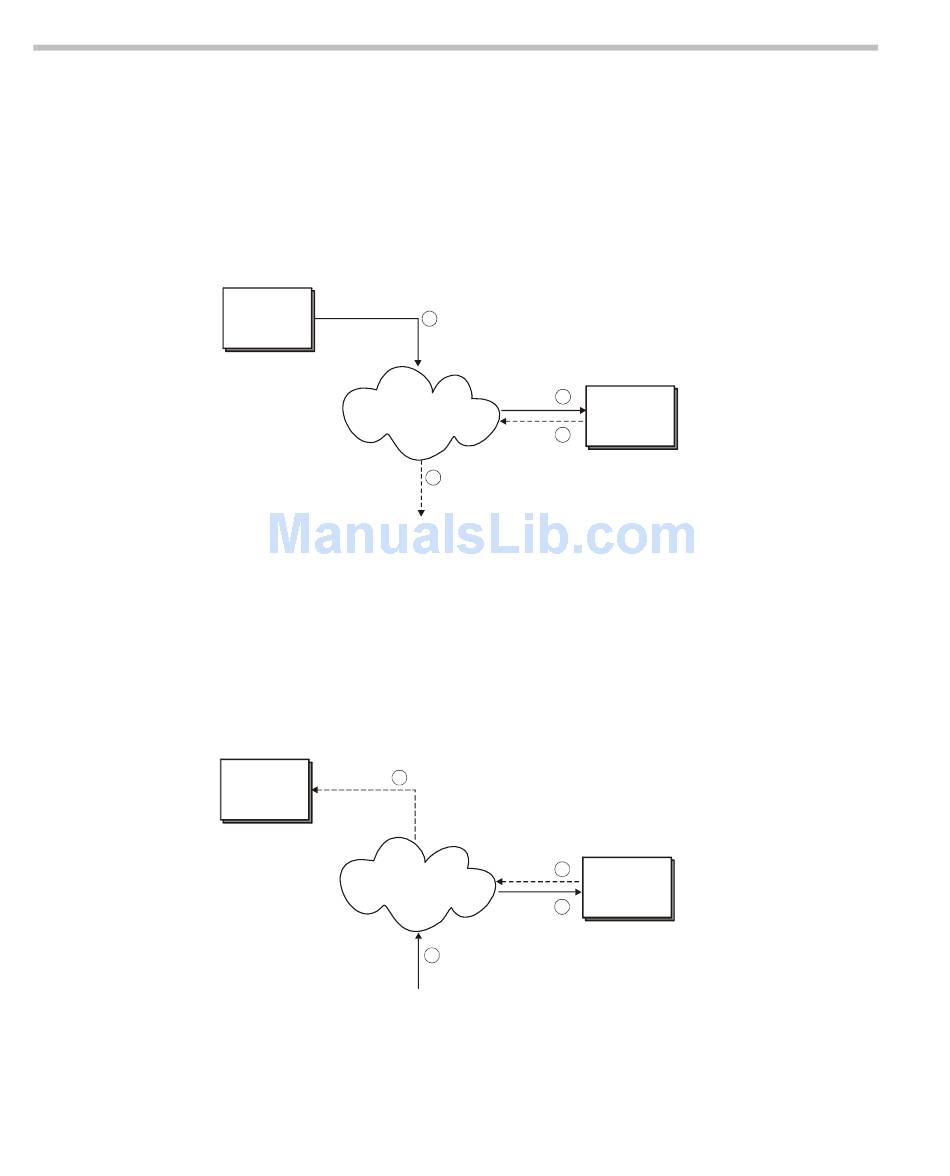

In a dial-out conference (Figure 3-1), the MCU dials the number of the
endpoint. This number is transferred via the switch (which is connected to the
ATM network) to the V-Gate. The V-Gate translates the dialed number to the
appropriate UNI address and sends it back to the MCU. The MCU now
connects to the endpoint.
Dials the number
of the endpoint
MCU
Network
Connects the
endpoint
Endpoint
Figure 3-3: Data flow in dial-out conferences
In a dial-in conference (Figure 3-2), the endpoint dials the MCU number. This
number is transferred via the switch (which is connected to the ATM network)
to the V-Gate. The V-Gate translates the dialed number of the MCU to the
appropriate UNI address and sends it back to the endpoint. The endpoint now
connects to the MCU.
Connects to
the MCU
4
MCU
ATM
Network
Dials the
MCU number
Endpoint
Figure 3-4: Data flow in dial-in conferences
1
Requests the
UNI address
for the dialed
number
2
ATM
3
Receives the
UNI address
4
for the dialed
number
Receives the
UNI address
of the MCU
3
2
Requests the
UNI address
1
of the MCU
V-Gate
V-Gate
