Chapter 4 - MCU Card Management

Viewing the Audio+ Module Specific Properties

4-38
The Audio+ Functional Module performs the audio processing functions for
the MGC unit. The Audio+ card properties display additional information on
the status and state of the connection.
Audio messages are stored directly on the card, and no daughter card is
required (as with the standard Audio card).
There are five different types of Audio+ cards (Audio+8A, Audio+8V,
Audio+12/24, Audio+24/48 and Audio+48/96) available for Audio and Video
conferences. The type of card determines the number of units available and
the audio algorithms that are supported. The number of ports for each card
type varies, depending on the audio algorithm used.
To view Audio+ card units:
To list the Audio+ module's units in the Browser pane, click the plus icon [+]
next to the card icon.
To display the module's units in the Status pane, click the card icon.

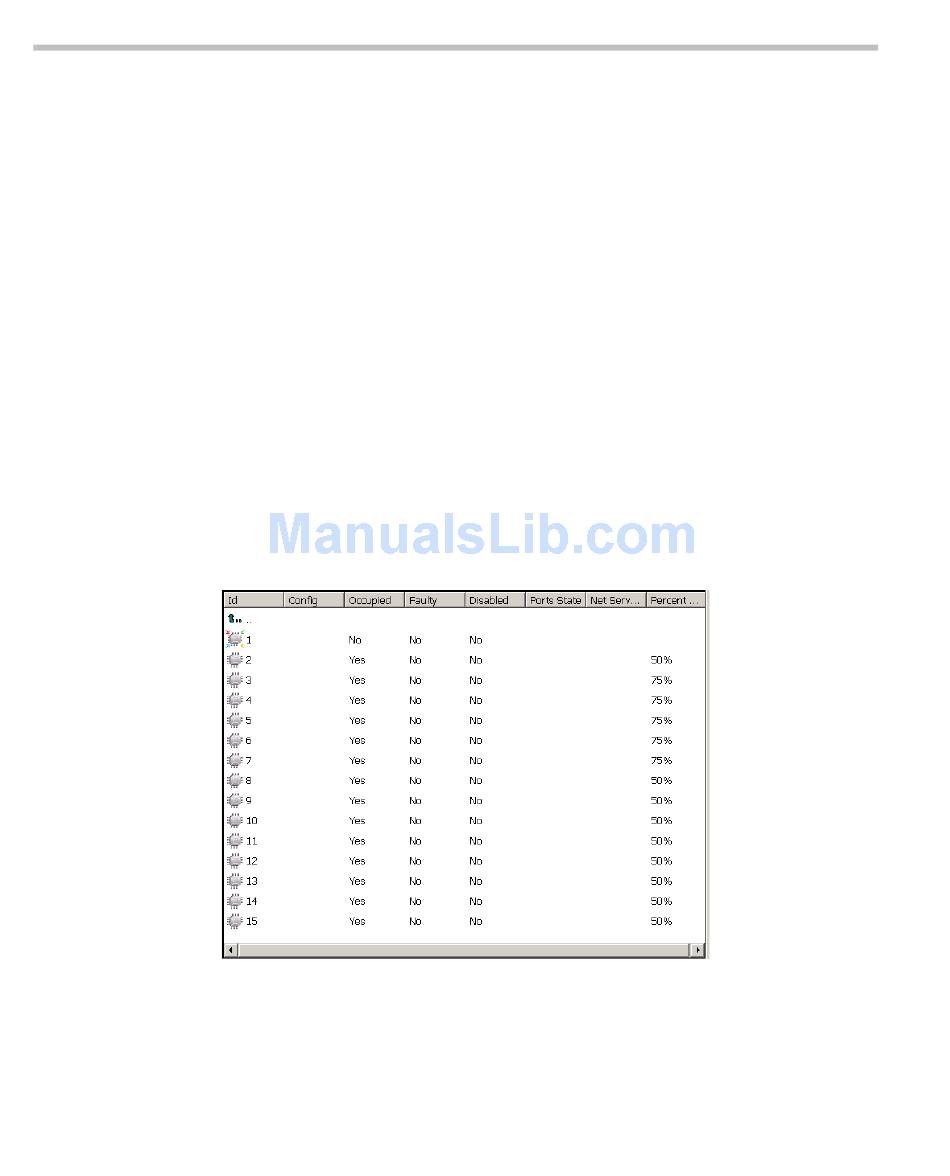

A list of the Audio+ ports appears below the slot icon and in the Status pane.
One unit may be connected to 3 or 6 participants depending on the card type
and the audio algorithm used by the endpoint. Unit 14 represents the
messages storage and unit 15 represents the connection to an external device.
