Chapter 4 - MCU Card Management
4-36
Maximum number of participants in a conference when the 1/30 option
•
is selected for the Audio Bridge is:
— Video Switching: 30 participants
— Continuous Presence: 12 video + 18 Audio only participants
Maximum number of Gateway Sessions when the Audio Bridge is set to
•
6/12 is the number of Audio cards x 6 sessions.

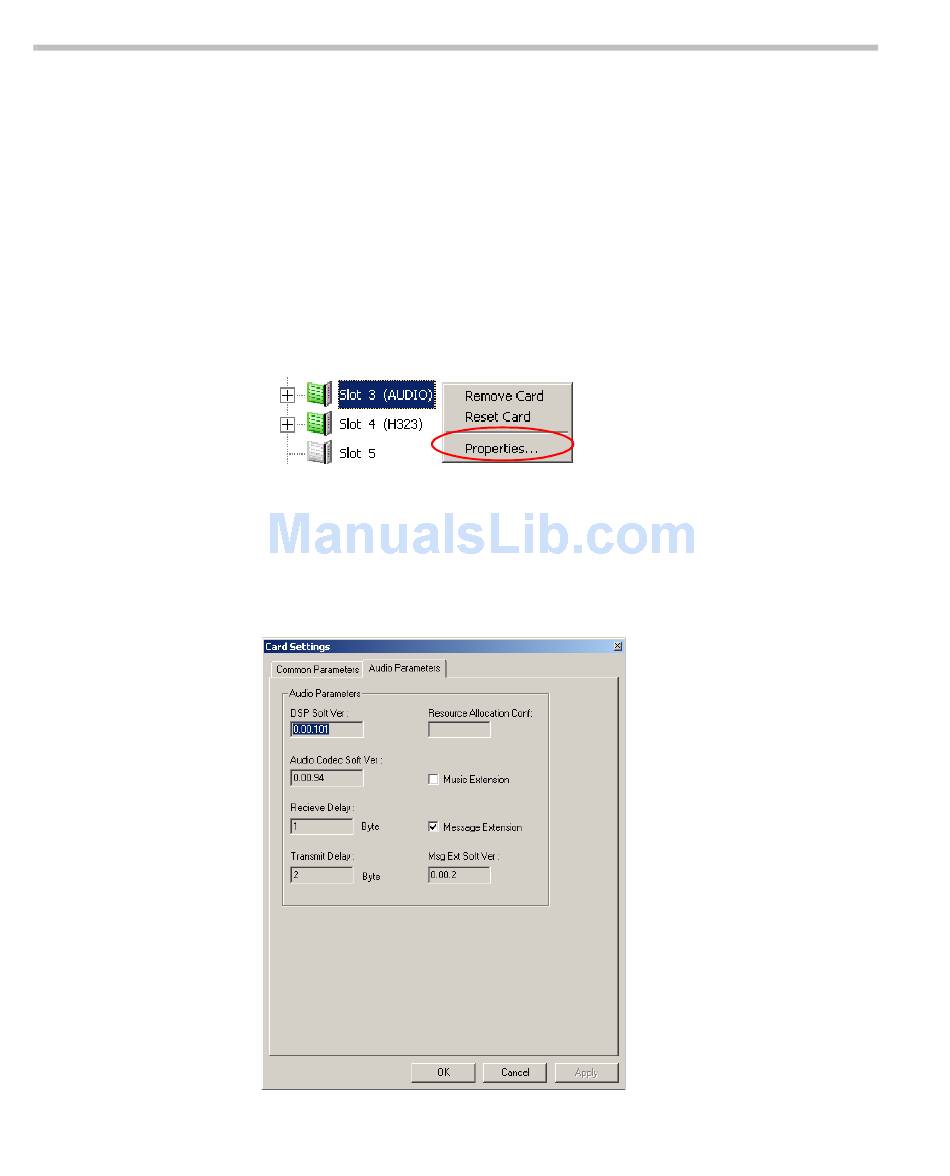

To display the card's properties:
1. In the Browser pane, right-click the slot containing the card, and then
click Properties.
The Card Settings – Common Parameters dialog box opens.
For details, see "Viewing the Common Card Parameters" on page 4-10.
2. Click the Audio Parameters tab.
The Audio Parameters dialog box displays settings that are specific to
the Audio module.
