General-purpose timers (TIM9 to TIM14)
For example you may want to generate a positive pulse on OC1 with a length of t
after a delay of t
Use TI2FP2 as trigger 1:
1. Map TI2FP2 to TI2 by writing CC2S='01' in the TIMx_CCMR1 register.
2. TI2FP2 must detect a rising edge, write CC2P='0' and CC2NP = '0' in the TIMx_CCER
register.
3. Configure TI2FP2 as trigger for the slave mode controller (TRGI) by writing TS='110' in
the TIMx_SMCR register.
4. TI2FP2 is used to start the counter by writing SMS to '110' in the TIMx_SMCR register
(trigger mode).
The OPM waveform is defined by writing the compare registers (taking into account the
clock frequency and the counter prescaler).
•
The t
•
The t
value (TIMx_ARR - TIMx_CCR1).
•
Let's say you want to build a waveform with a transition from '0' to '1' when a compare
match occurs and a transition from '1' to '0' when the counter reaches the auto-reload
value. To do this you enable PWM mode 2 by writing OC1M='111' in the TIMx_CCMR1
register. You can optionally enable the preload registers by writing OC1PE='1' in the
TIMx_CCMR1 register and ARPE in the TIMx_CR1 register. In this case you have to
write the compare value in the TIMx_CCR1 register, the auto-reload value in the
TIMx_ARR register, generate an update by setting the UG bit and wait for external
trigger event on TI2. CC1P is written to '0' in this example.
You only want 1 pulse (Single mode), so you write '1 in the OPM bit in the TIMx_CR1
register to stop the counter at the next update event (when the counter rolls over from the
auto-reload value back to 0). When OPM bit in the TIMx_CR1 register is set to '0', so the
Repetitive Mode is selected.
602/1284

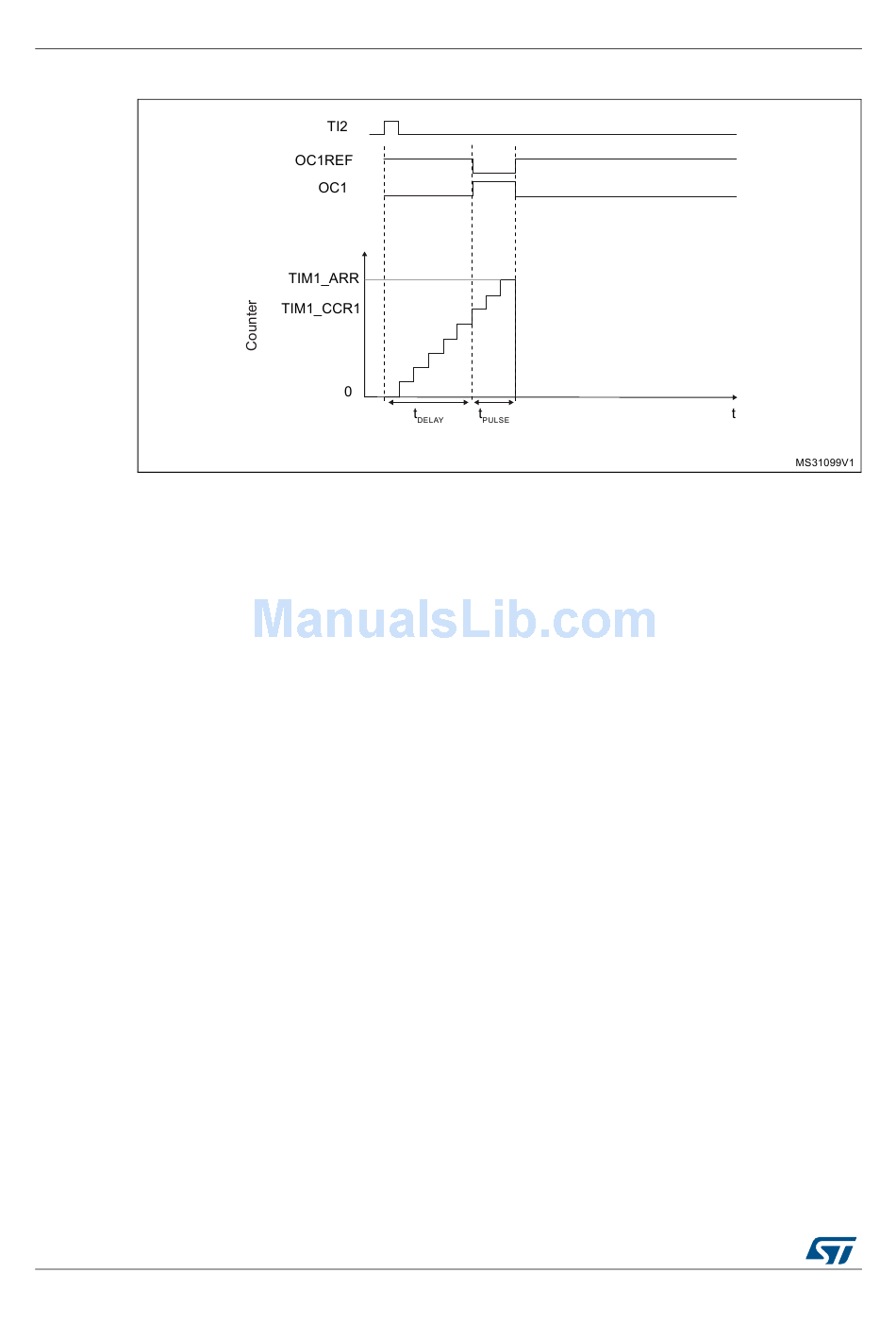

Figure 200. Example of one pulse mode.

as soon as a positive edge is detected on the TI2 input pin.
DELAY
is defined by the value written in the TIMx_CCR1 register.
DELAY
is defined by the difference between the auto-reload value and the compare
PULSE
DocID029473 Rev 3
RM0430
and
PULSE
