General-purpose timers (TIM2 to TIM5)

18.3.15

Timer synchronization

The TIMx timers are linked together internally for timer synchronization or chaining. When
one Timer is configured in Master Mode, it can reset, start, stop or clock the counter of
another Timer configured in Slave Mode.
Figure 175
blocks.
Using one timer as prescaler for another
556/1284

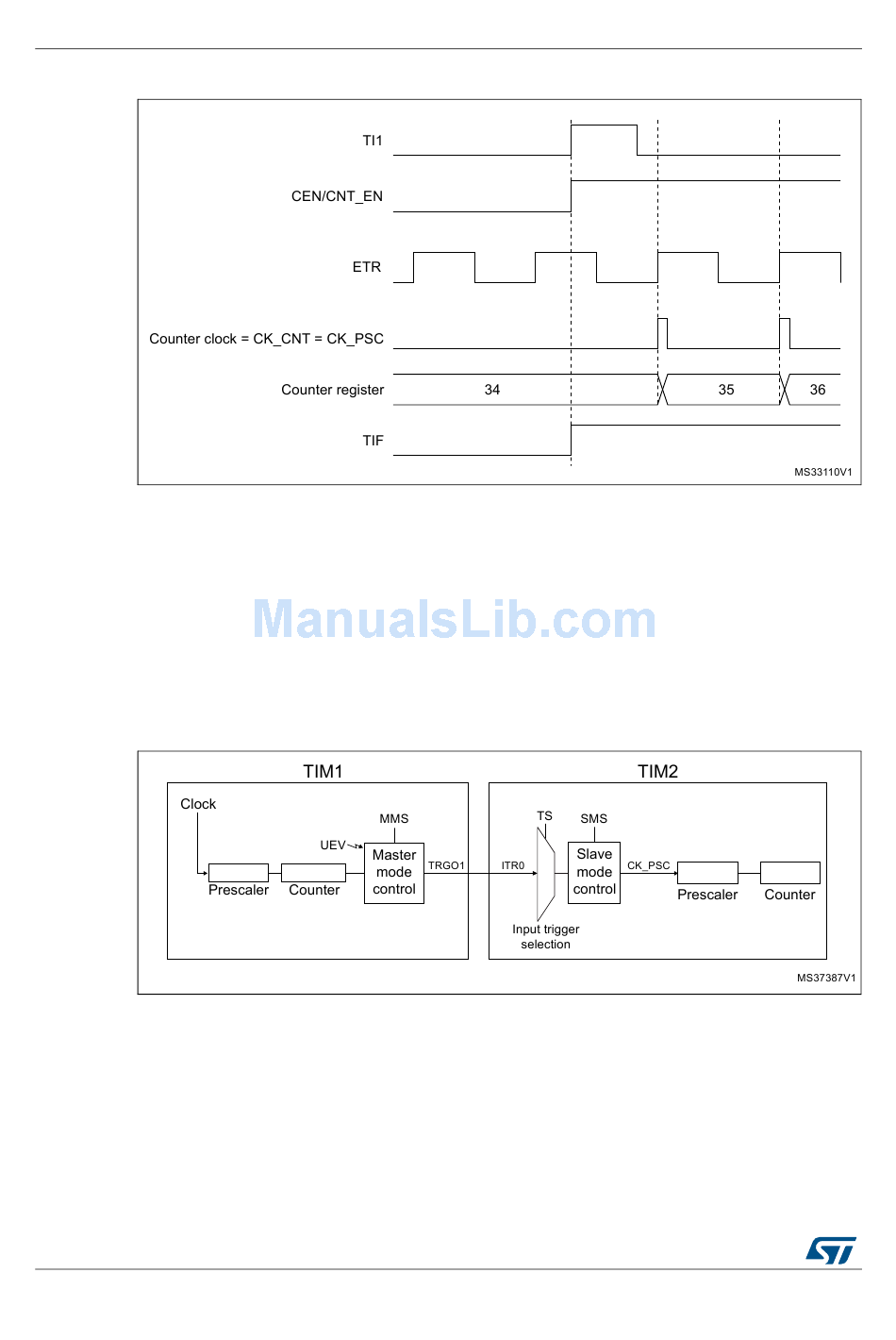

Figure 174. Control circuit in external clock mode 2 + trigger mode
presents an overview of the trigger selection and the master mode selection
Figure 175. Master/Slave timer example
DocID029473 Rev 3
RM0430
