Advanced-control timers (TIM1&TIM8)
RM0430

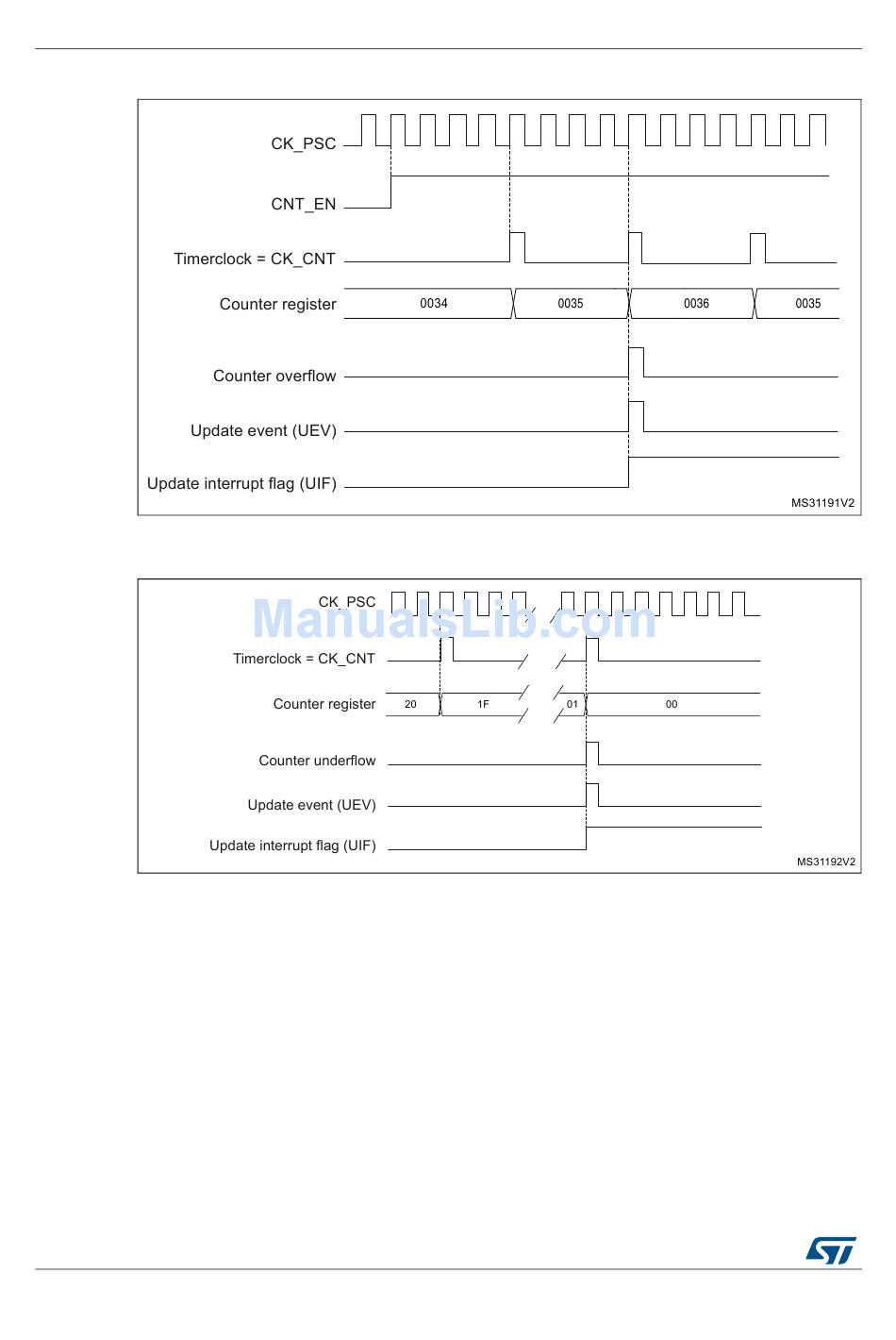

Figure 103. Counter timing diagram, internal clock divided by 4, TIMx_ARR=0x36
1.
Center-aligned mode 2 or 3 is used with an UIF on overflow.
Figure 104. Counter timing diagram, internal clock divided by N
464/1284
DocID029473 Rev 3
