Flexible static memory controller (FSMC)
The differences with Mode1 are the toggling of NWE and the independent read and write
timings when extended mode is set (Mode B).
276/1284

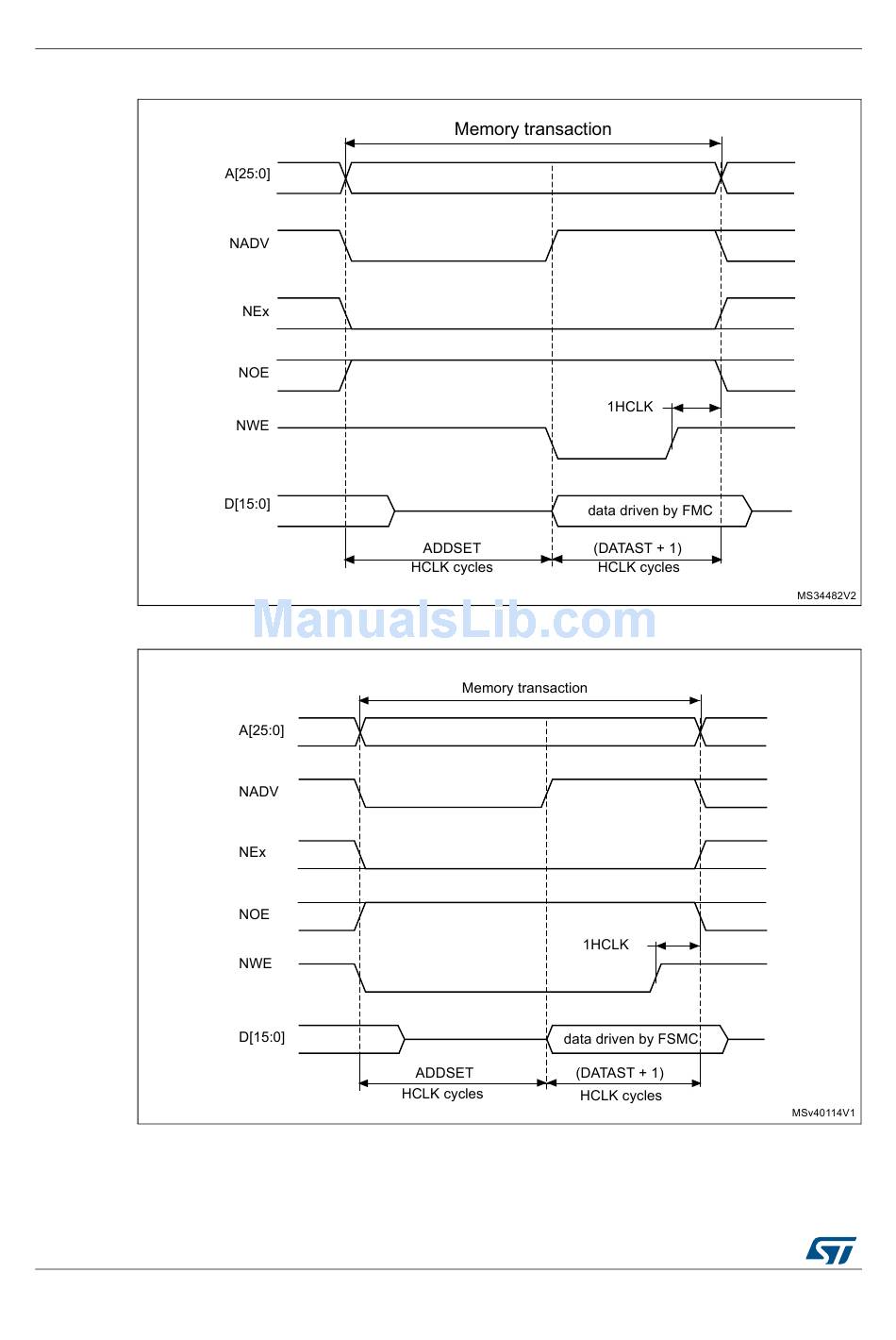

Figure 38. Mode2 write access waveforms
Figure 39. ModeB write access waveforms
DocID029473 Rev 3
RM0430
