RM0430
Figure 120
•
TIMx_ARR=8,
•
PWM mode is the PWM mode 1,
•
The flag is set when the counter counts down corresponding to the center-aligned
mode 1 selected for CMS=01 in TIMx_CR1 register.
shows some center-aligned PWM waveforms in an example where:

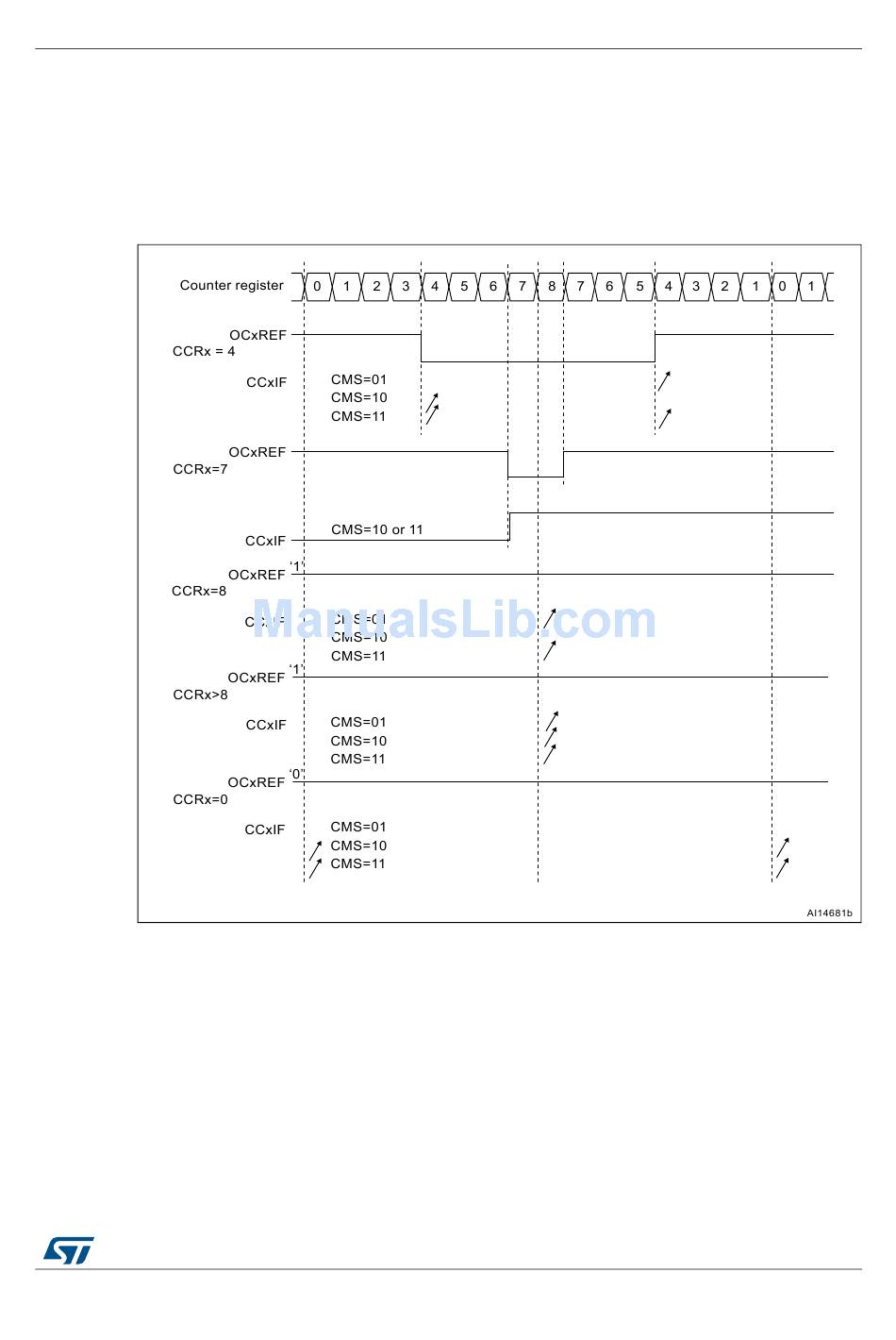

Figure 120. Center-aligned PWM waveforms (ARR=8)

DocID029473 Rev 3
Advanced-control timers (TIM1&TIM8)
479/1284
523
