5.7  Option Card Field Installation Guide
f.
Insert the Gigabit Ethernet option card into Slot 2, and carefully press down to fit the con-
nectors on the bottom of the card to the connector on the mainboard.
g.
Secure the option card by screwing the supplied M3 screws into
- both standoffs on the chassis
- the standoff added onto the mainboard
- and into the rear chassis. Apply a torque of 0.9 Nm/8.9 in-lbs.

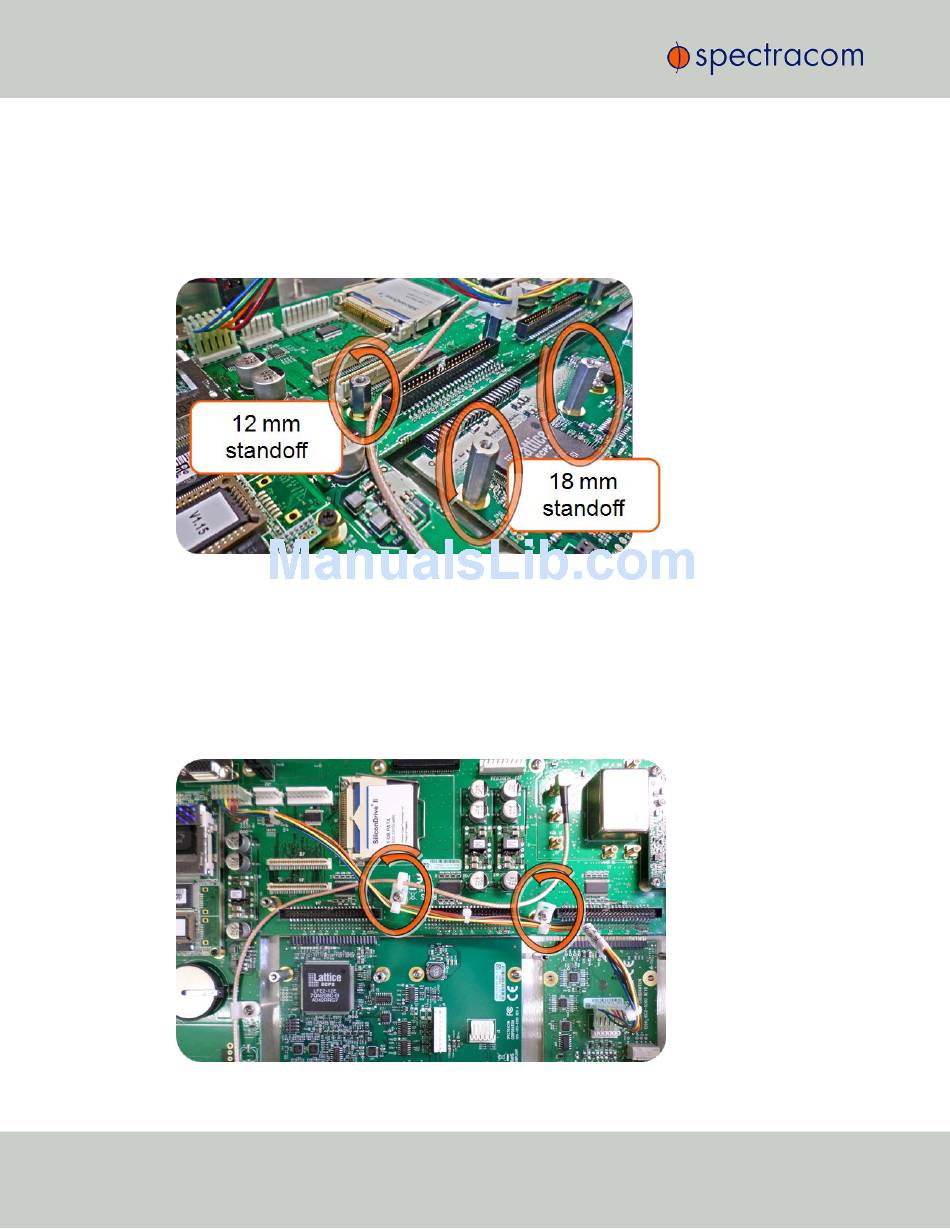

Figure 5-56:
5.7.13
PROCEDURE 10: Alarm Relay Card, Cable Installation
This procedure describes additional steps for the installation of the Alarm Relay Output
card (PN 1204-00F0-0600).
a.
Connect the supplied cable, part number 8195-0000-5000, to the mainboard connector J19
"RELAYS".
442
Gigabit Ethernet option card installation
CHAPTER
5
