3.6 OTHER Setup Pages
1.
Navigate to the 1PPS edit screen, for example by choosing INTERFACES/OUTPUTS (or
INTERFACES/OPTION CARDS for PPS outputs other than 0) to directly access the desired
output, or by clicking OUTPUTS or OPTION CARDS .
2.
In the latter case, click the GEAR button next to the PPS Output 0. Otherwise, click the Edit
button.
3.

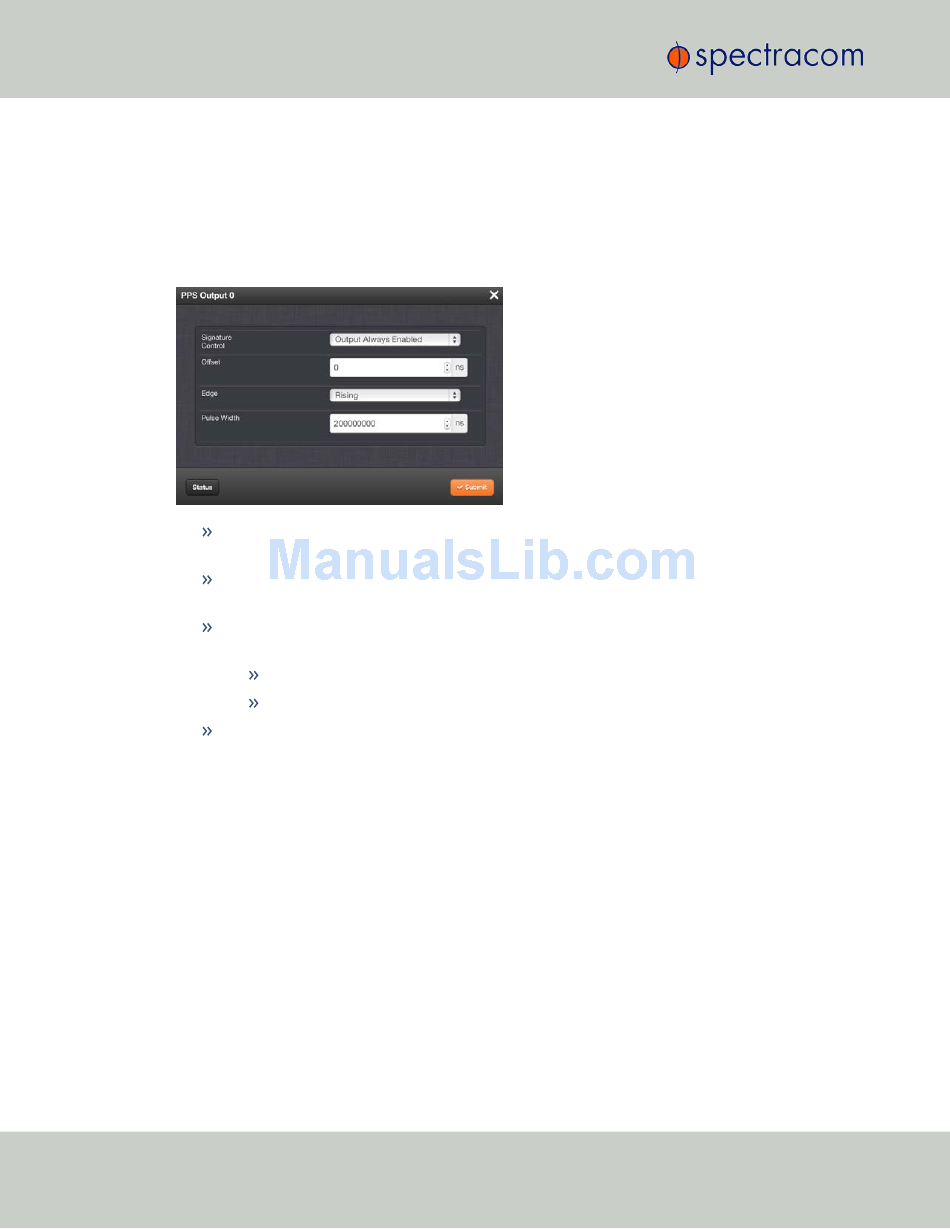

The PPS Output 0 Edit window will display, allowing the following items to be configured:
Signature Control : Determines when the output is enabled. See "Signature Control" on the
facing page.
Offset [ns]: Allows to offset the system's 1PPS on-time point, e.g. to compensate for cable
delays and other latencies [range = –500000000 to 500000000 ns = ±0.5 s]
Edge : Used to determine if the on-time point of the 1PPS output is the rising or the falling
edge of the signal.
Pulse Width [ns]: Configures the Pulse Width of the 1PPS output.
[range= 20 to 900000000 ns = 0.0s μs to 0.9 s]
[default = 200 ms]
Configuring a 10 MHz Output
To configure the 10 MHz output of the main unit (i.e. not that of an option card):
1.
Click the GEAR icon next to the 10 MHz output you wish to configure.
2.
The 10 MHz 0 screen will display. Choose a value from the Signature Control field drop-
down list to determine what SecureSync shall do with the output when its input reference is
lost. See also "Signature Control" on the facing page.
200
Rising
Falling
