3.6 OTHER Setup Pages
3.6.10.2 The Oscillator Disciplining Screen
1.
Navigate to the Oscillator Management screen by choosing MANAGEMENT/OTHER/
Disciplining .
2.

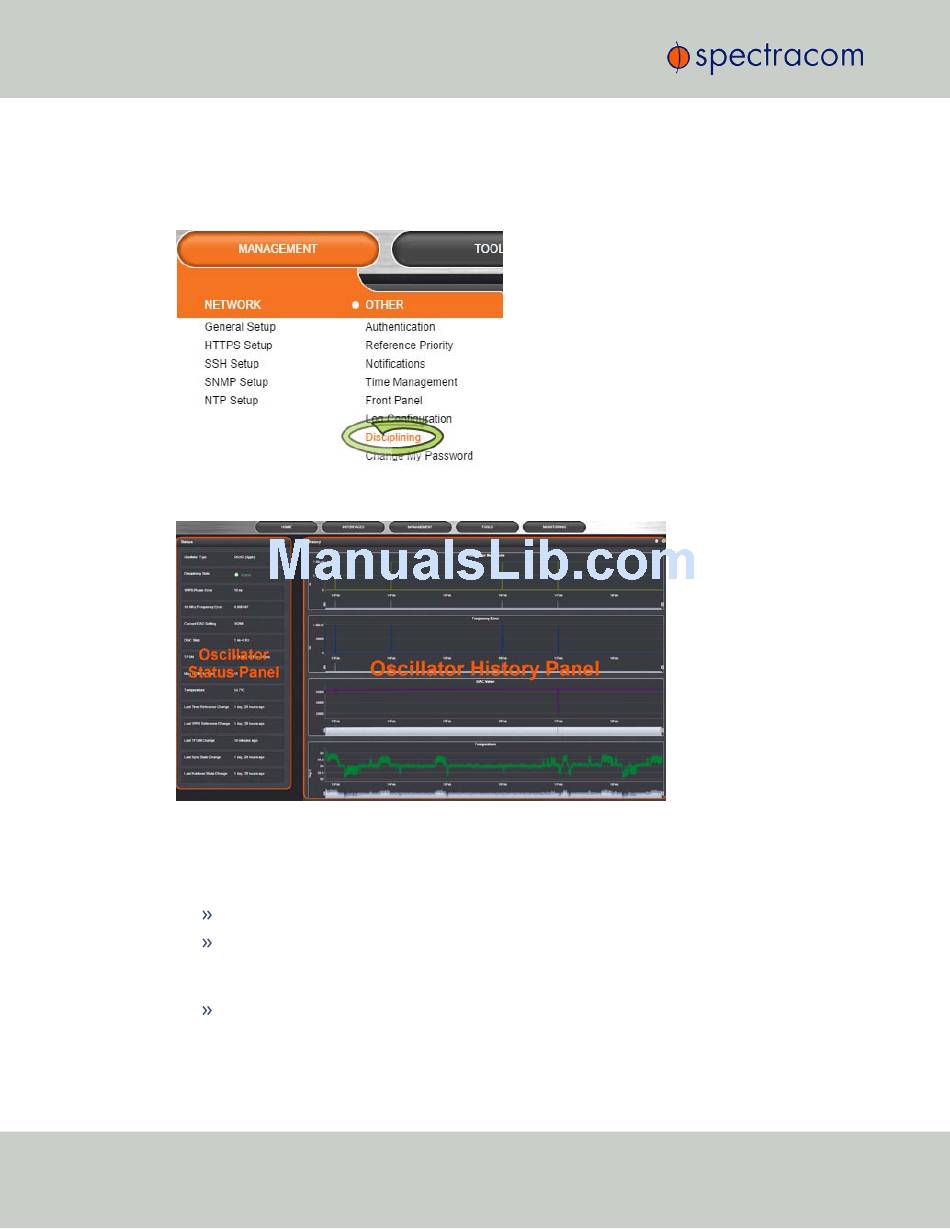

The Oscillator Management screen will display. It consists of two panels.
Oscillator Status Panel
This panel provides comprehensive information on the current status of SecureSync's timing
state.
Oscillator Type
Disciplining State
internal oscillator is currently being disciplined (steered to an input reference). The states
are: "Warm up", "Calibration", "Tracking Setup", "Lock State", "Freerun", and "Fault".
1PPS Phase Error
1PPSs' phase error with respect to the selected input reference. Long holdover periods or
an input reference with excessive jitter will cause the phase error to be high. The oscillator
190
: See "Oscillator Types" on the previous page.
: State of oscillator control and disciplining; indicates whether or not the
: A tracking measurement [scaled time, in ns, or ms] of the internal
