5.6  Miscellaneous Option Cards
5.6.4

Bi-Directional Communication, RS-485 [1204-0B]

Inputs/Outputs : Bi-directional Communication Port
Signal Type and Connector : Balanced RS-485 (3.8 mm terminal block)
Maximum Number of Cards : 1
Ordering Information : 1204-0B: RS-485 Communications Module

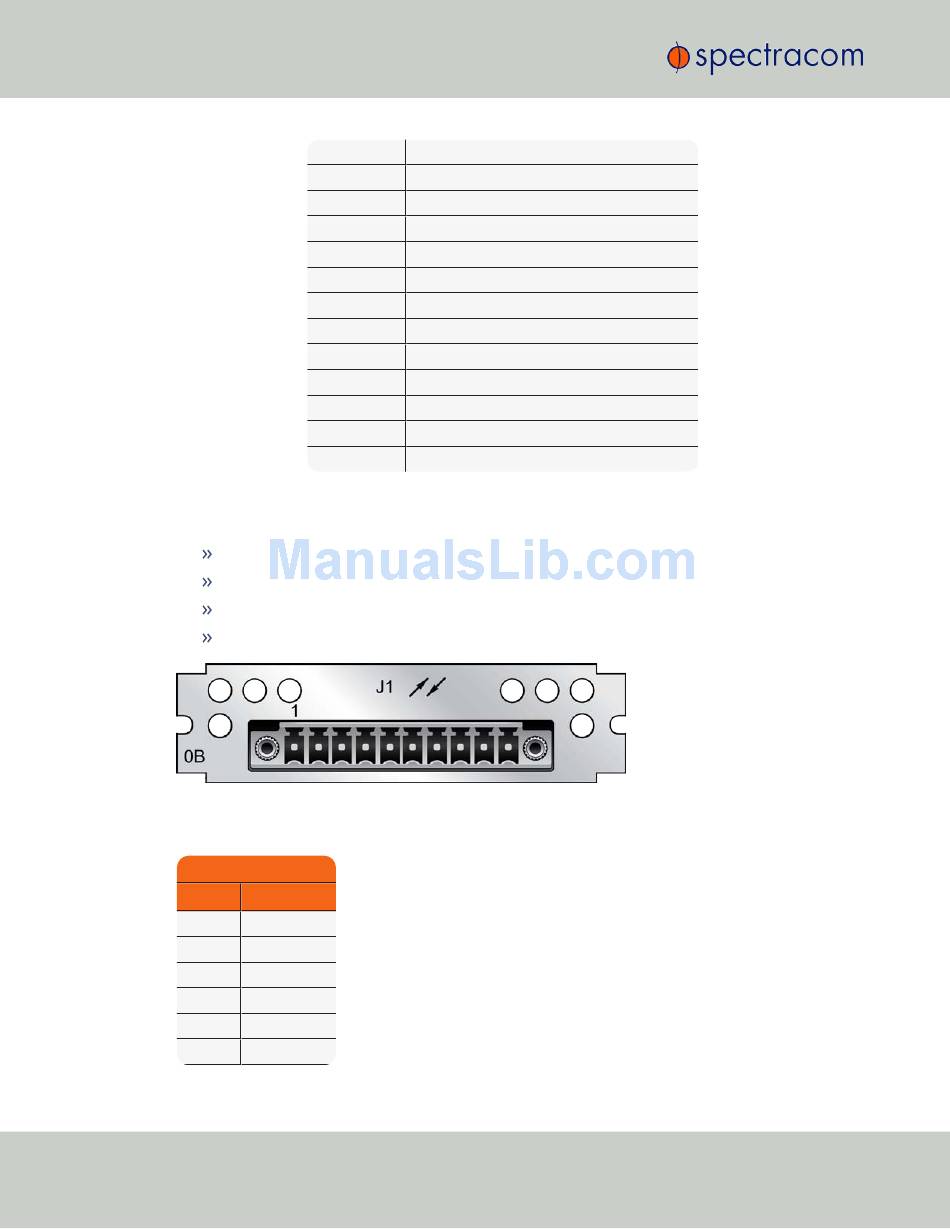

Figure 5-46:
Pin Assignments
Pin No.
1
2
3
4
5
6
430
YYYY
Year
Space Separator
DDD
Day of Year (001-366)
Space Separator
HH
Hour of the Day (00-23)
:
Colon Separator
MM
Minutes of the Hour (00-59)
:
Colon Separator
SS
Seconds (00-59), (00-60 for leap second)
.
Period Separator
XXXXXXXXX
9-digit Sub-Seconds Time (5 ns resolution)
CR
Carriage Return
LF
Line Feed
Model 1204-0B option card rear plate
Signal
GND
RS-485 IN+
RS-485 IN-
GND
RS485 OUT+
RS485 OUT-
