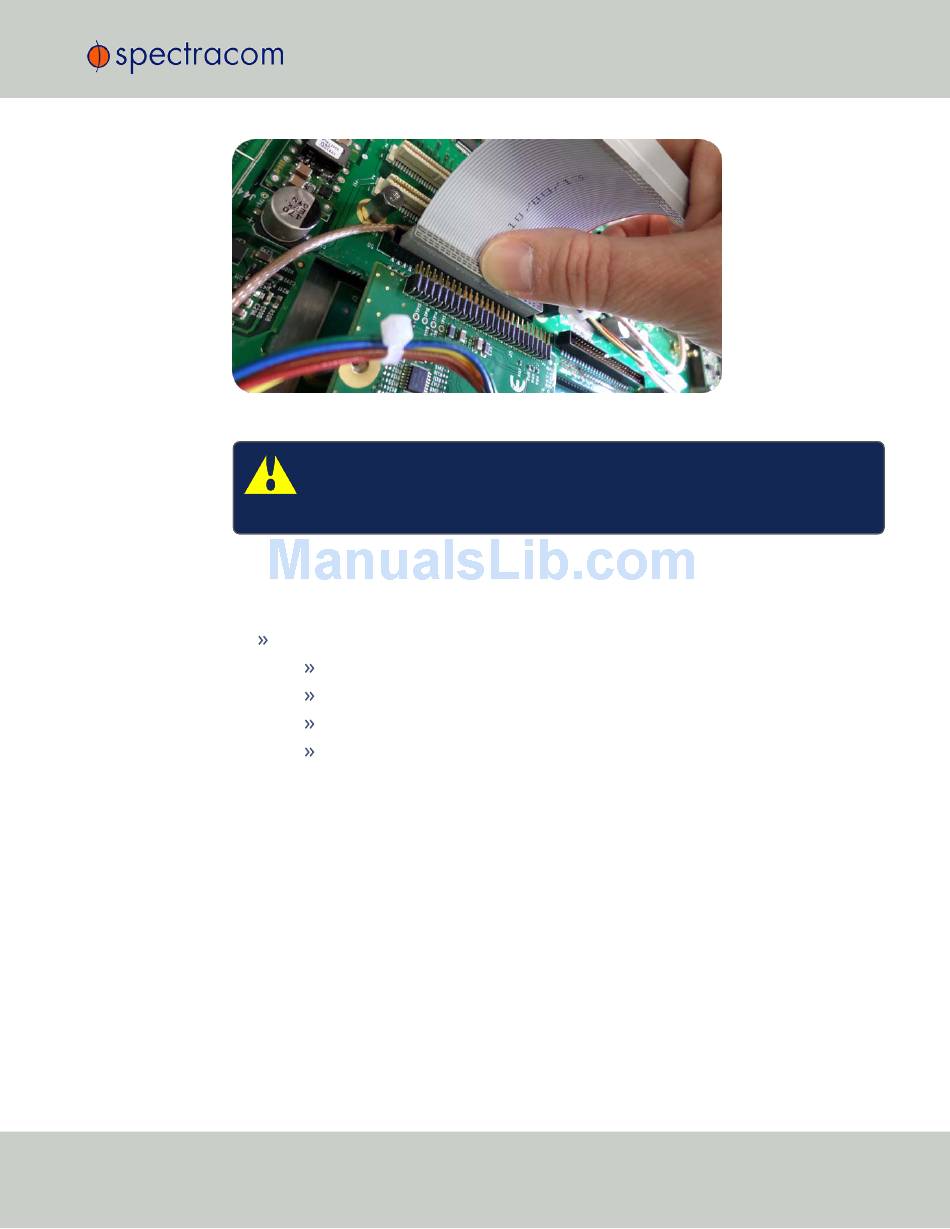

Figure 5-52:
5.7.10
PROCEDURE 7: Frequency Output Cards: Wiring
This procedure includes additional installation instructions for the following option card types:
For the cable installation, follow the steps detailed below:
a.
CHAPTER
•
5
SecureSync User Reference Guide Rev. 18
Ribbon cable installation
Caution:
Ensure that the ribbon cable is aligned and fastened properly to all pins on
the connector of the card. Otherwise, damage to equipment may result during power
up.
Frequency Output cards:
1MHz (PN 1204-0260-0600)
5MHz (PN 1204-0080-0600)
10 MHz (PN 1204-00C0-0600)
10 MHz (PN 1204-01C0-0600)
Install the coax cable(s) onto the main PCB, connecting them to the first available open con-
nectors, from J1... J4. See figure below:
