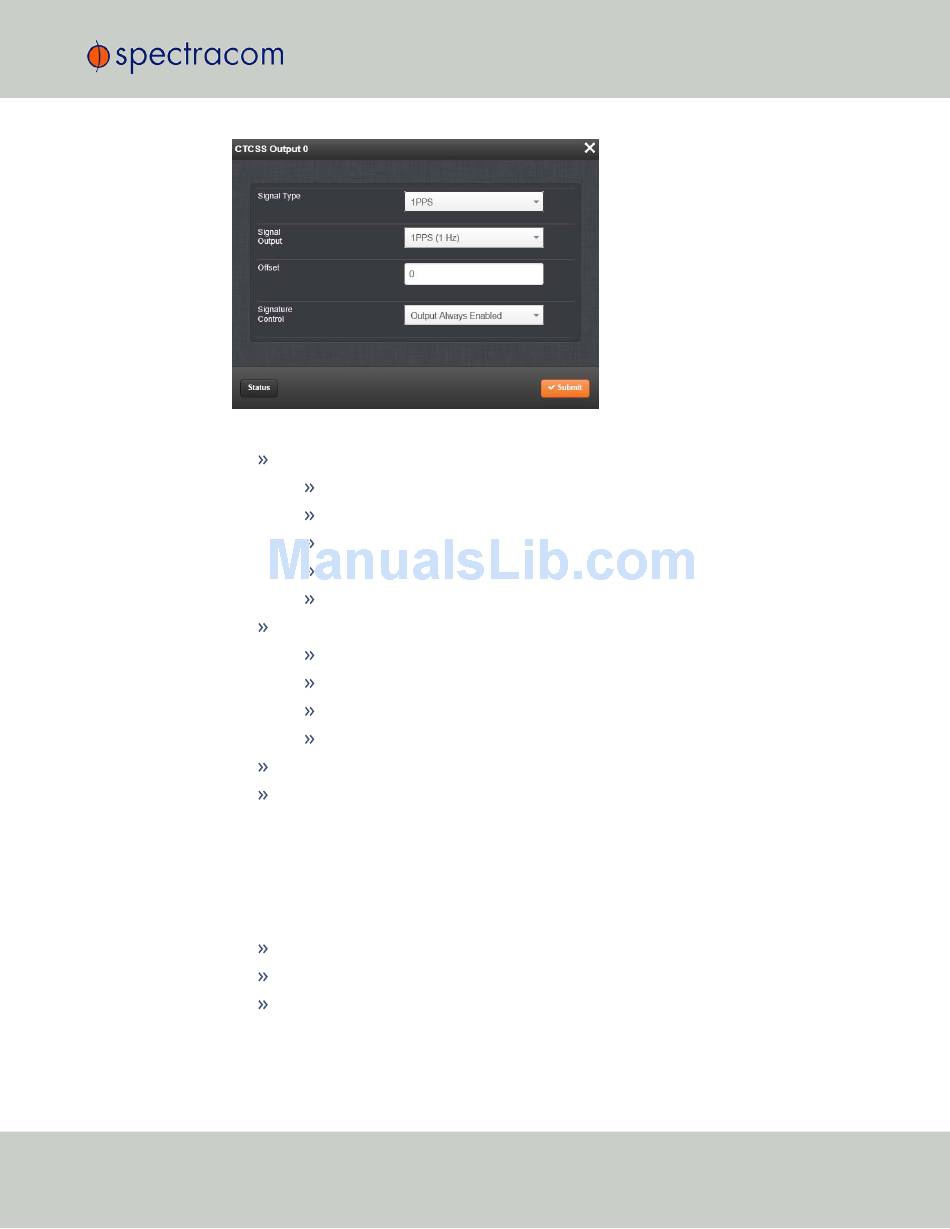

The Edit window allows the configuration of the following settings:
5.2.7.5 819x Option 17 Mapping
To replicate settings used in Series 819x devices, use the following information to configure option
card no. 1204-14 for compatible CTCSS operation:
CHAPTER •
5 SecureSync User Reference Guide Rev. 18
Signal Type : Allows selection of the desired signal type. Available options include:
Disabled
CTCSS 1/3 Tones
CTCSS 1/10 Tones
Data Clocks
1PPS
Signal Output :
CTCSS 1/3 Tones (see also: "CTCSS 1/3 Tones" on the next page)
CTCSS 1/10 Tones (see also: "CTCSS 1/10 Tones" on page 327)
Data Clocks (see also: "Data Clock Signals" on page 328)
1PPS (see also: "1PPS Signal" on page 328)
Offset : Value (in nanoseconds) that can be used to adjust for cable delays or latencies.
Signature Control : Controls when the output will be present. For more information, see
"Signature Control" on page 201.
DB-9 Output Index 0 : Set to desired CTCSS 1/10 or CTCSS 1/3 tone
DB-9 Output Index 1 : Set to 18 KHz Data Clock
DB-9 Output Index 2 : Set to desired CTCSS 1/10 or CTCSS 1/3 tone.
