5.7.12 PROCEDURE 9: Gb ETH Card Installation, Slot1 Occupied
This procedure describes the installation of the Gigabit Ethernet card (PN 1204- 0060- 0600),
if there is an option card installed in slot 1.
The Gigabit Ethernet option card must be installed in Slot 2. If there is a card already installed in
Slot 2, it must be relocated to a different slot.
a.
b.
c.
d.
e.
CHAPTER •
5 SecureSync User Reference Guide Rev. 18

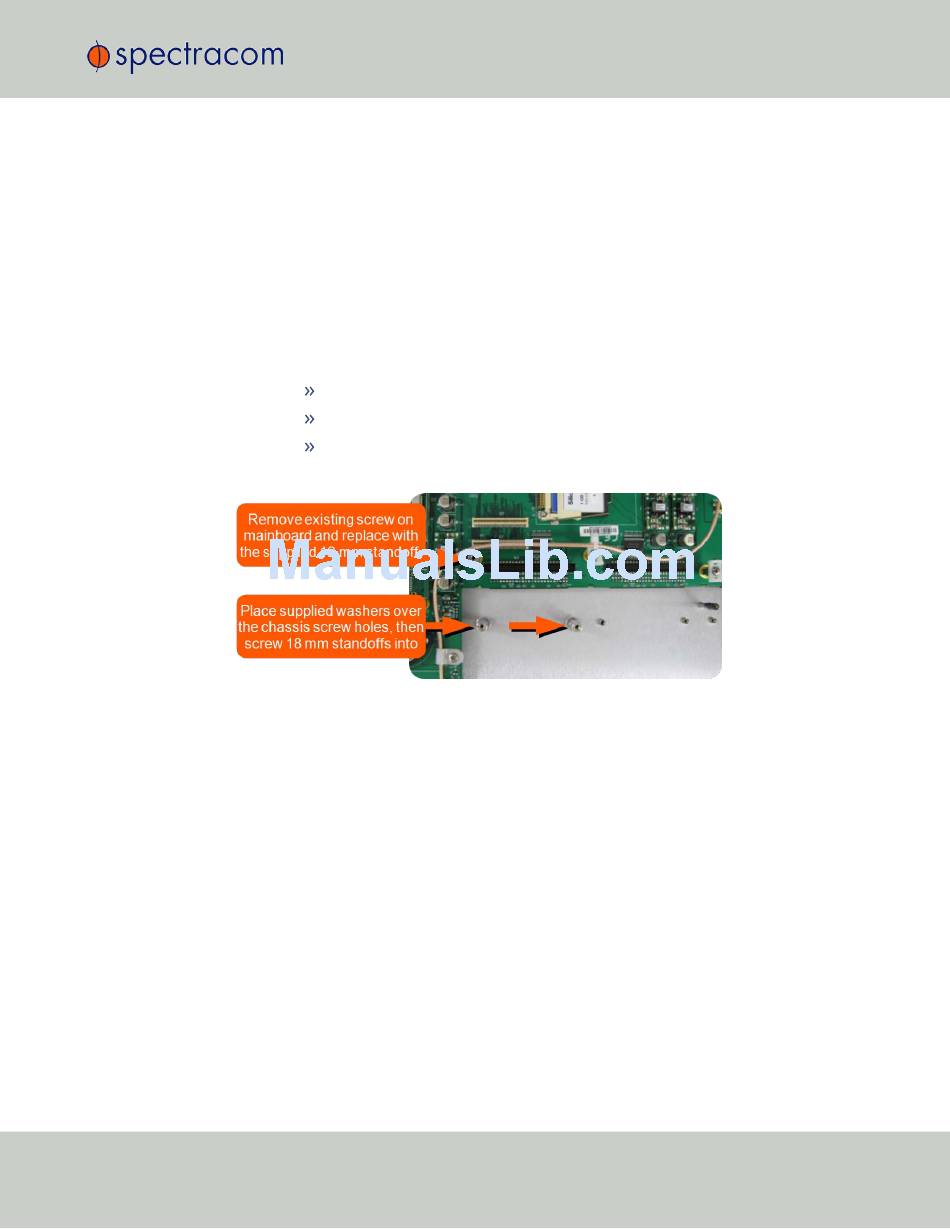

Washer placement
Take the supplied washers and place them over the chassis screw holes (see figure above)
Screw the supplied 18-mm standoffs into place above the washers (see figure below), apply-
ing a torque of 0.9 Nm/8.9 in-lbs.
On the SecureSync mainboard, remove the screw located under the J11 connector and
replace with the supplied 12-mm standoff (see figure below).
Insert the Gigabit Ethernet option card into Slot 2, and carefully press down to fit the con-
nectors on the bottom of the Gigabit Ethernet card to the connectors on the mainboard.
Secure the option card by screwing the supplied M3 screws into:
both standoffs on the chassis
the standoff added onto the mainboard
and into the rear chassis. Apply a torque of 0.9 Nm/8.9 in-lbs.
Gigabit Ethernet option card installation
Safely power down the SecureSync unit and remove chassis cover. Save the screws.
Remove the blank option card panel, or the existing option card. Save the screws.
Remove the two screws securing the lower card (not the panel screws). Save the screws.
Screw the supplied 18-mm standoffs into place, applying a torque of 0.9 Nm/8.9 in-lbs.
On the SecureSync mainboard, remove the screw located under the J11 connector and
replace with the supplied 12-mm standoff (see figure below).
