Table 5-13:

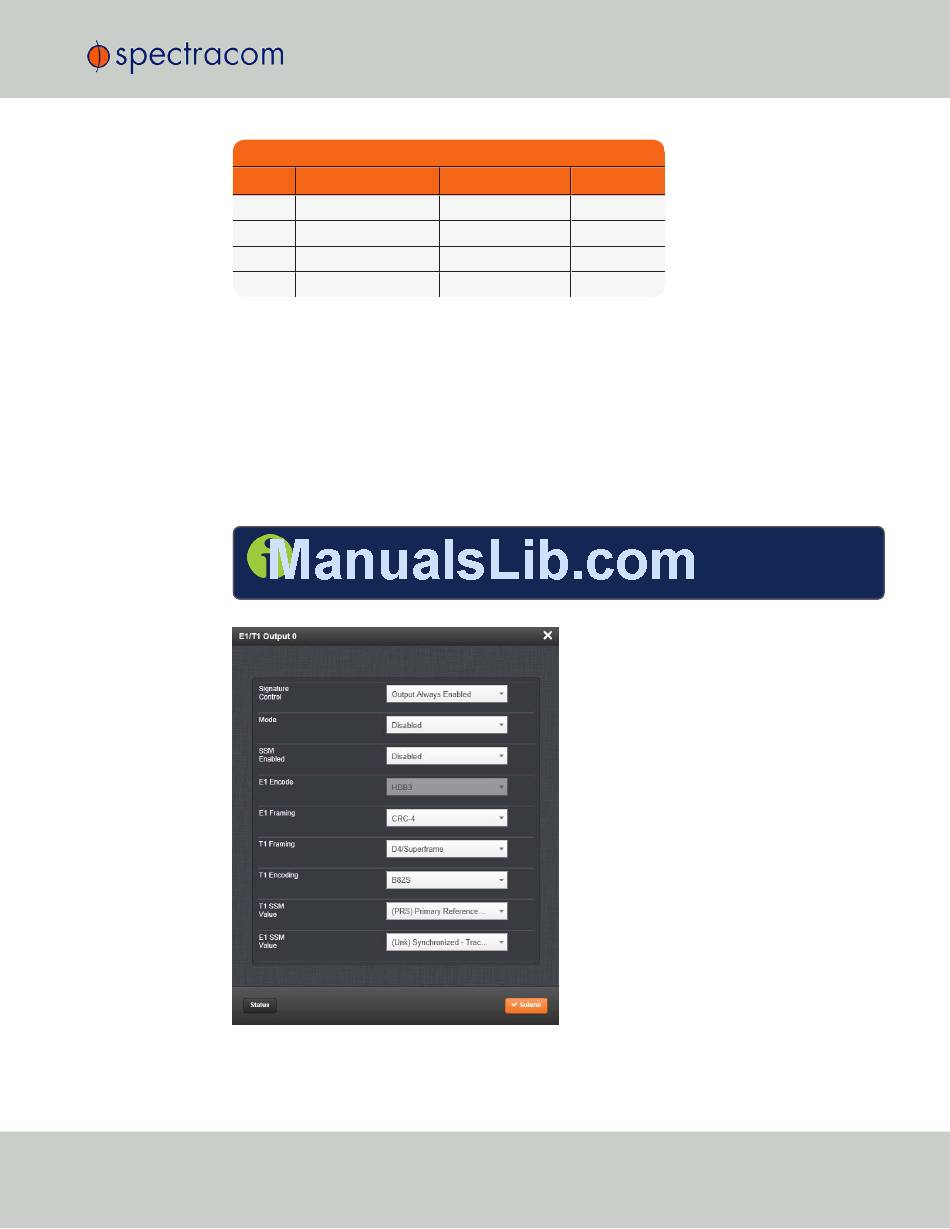

5.3.1.3 E1/T1 Output: Edit Window
To configure an E1/T1 data output (1.544/2.048 MHz clock on J1 BNC connector and unbalanced
E1/T1 outputs on J2 to J3 BNC connectors, or all outputs J1 terminal block, of the E1/T1module),
go to its Edit window. For instructions, see: "Configuring the Settings of an Input or Output" on
page 290.
The Web UI list entries for this card are: E1/T1 Out BNC and E1/T1 OUT Terminal .
The Edit window allows the configuration of the following settings:
CHAPTER •
5 SecureSync User Reference Guide Rev. 18
Pin Assignments
Signal Function
GND Ground
T1/E1 output A2 GR-499/G.703
T1/E1 output B2 GR-499/G.703
GND Ground
1204-0A option card pin assignments
NOTE – SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out-
puts start at 1, because of the built-in outputs).
5.3 Telecom Option Cards
Description
Ground
Tip
Ring
Ground
