Pin No.
6
7
8
9
10
Table 5-18:
5.4.5.3 HAVE QUICK Output: Viewing Signal State
To quickly view if a HAVE QUICK Output is enabled or disabled, go to the option card's Status
Summary panel. For instructions, see: "Viewing the Signal State of an Input or Output" on
page 291.

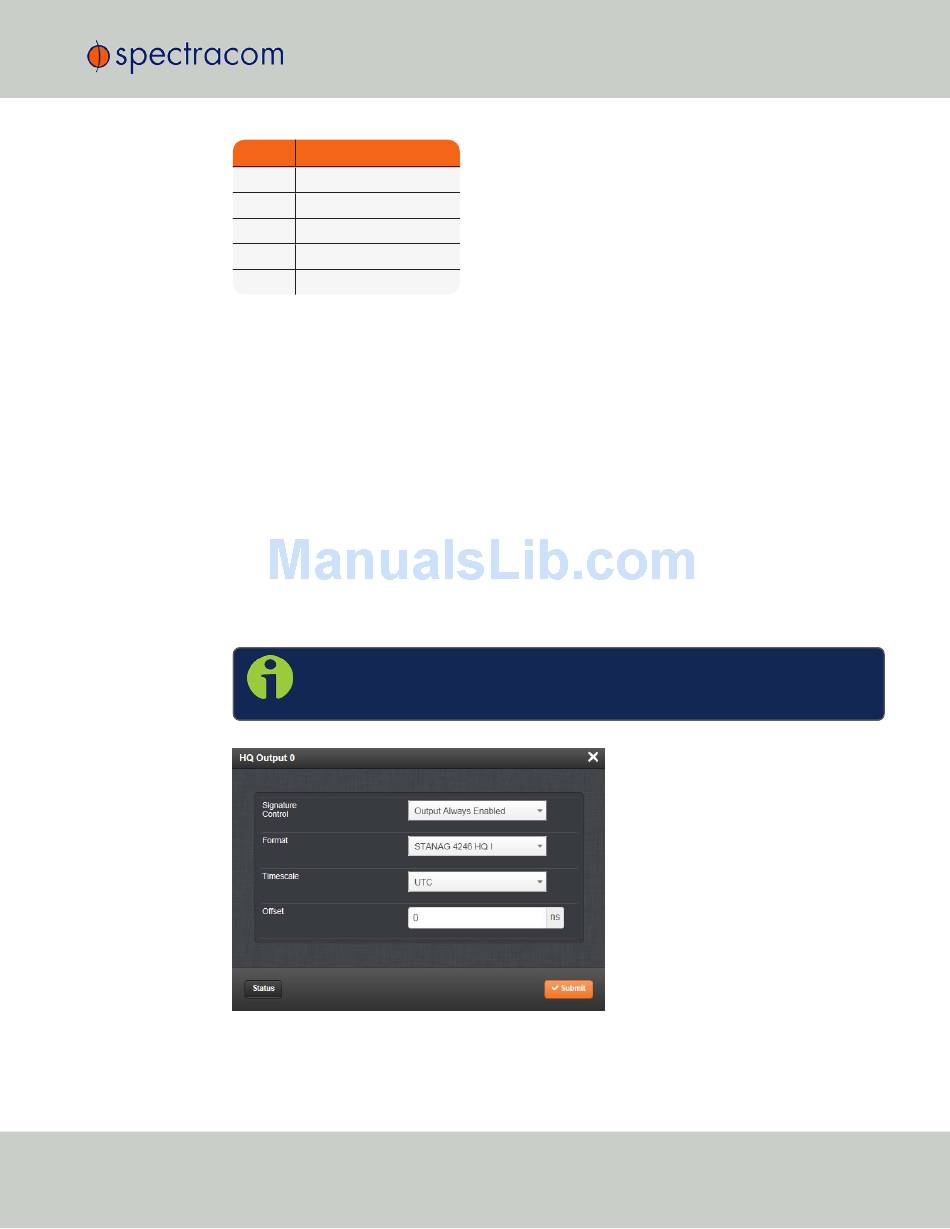

5.4.5.4 HAVE QUICK Output: Edit Window
To configure a HAVE QUICK Output , go to its Edit window. For instructions, see: "Configuring
the Settings of an Input or Output" on page 290.
The Web UI list entries for this card are: HAVE QUICK out, BNC and HAVE QUICK Out, RS-
485 .
The outputs are named: HQ Output [number] .
The Edit window allows the configuration of the following settings:
CHAPTER •
5 SecureSync User Reference Guide Rev. 18
Function
HAVE QUICK Output 3 +
HAVE QUICK Output 3 -
GND
HAVE QUICK Output 4 +
HAVE QUICK Output 4 -
1204-1B terminal block pin-out
NOTE – SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out-
puts start at 1, because of the built-in outputs).
