5.1 Option Cards Quick Reference Guide
5.1.4

Web UI Navigation: Option Cards

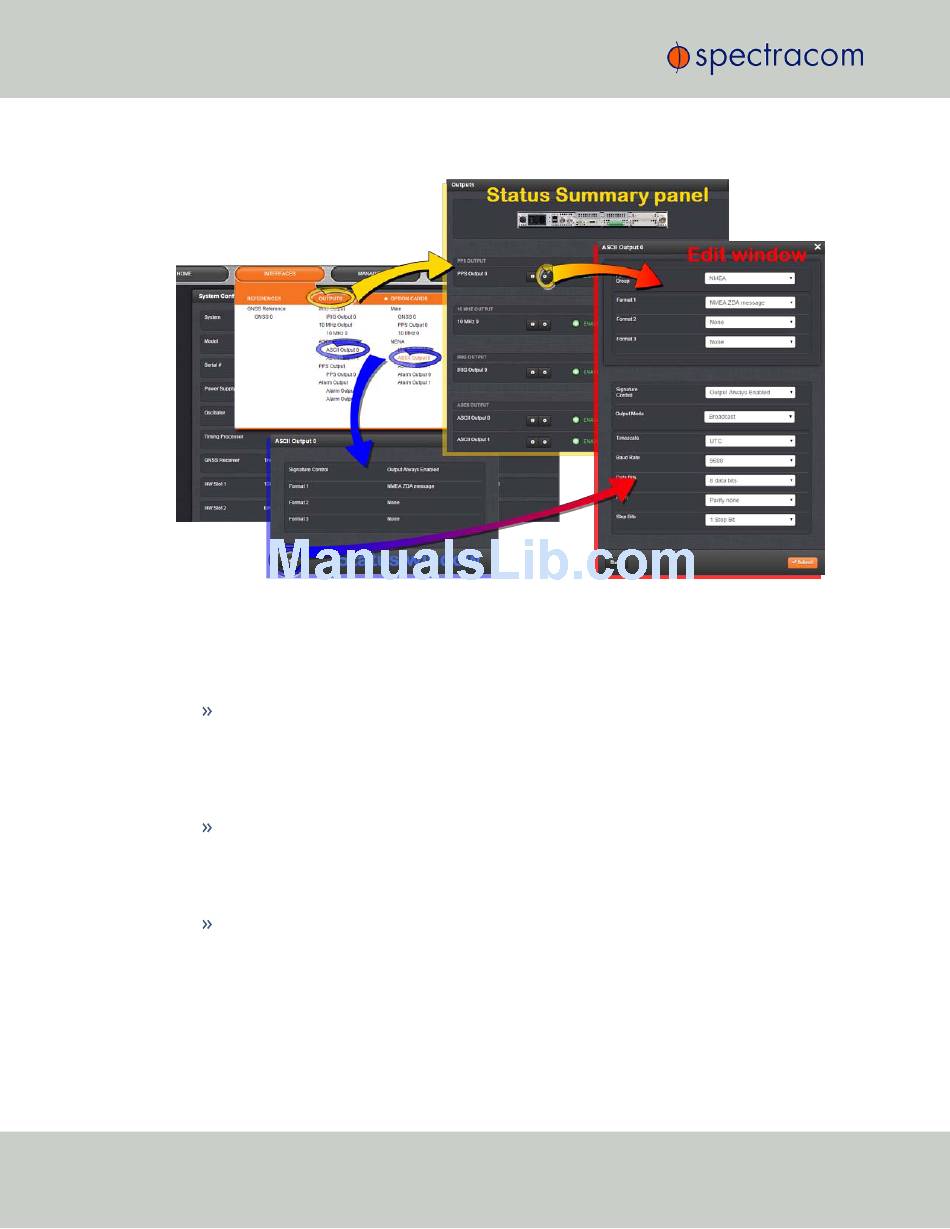

Figure 5-1:
To view or edit option card settings in the SecureSync Web UI (see also image above):
Status Summary panel
Under INTERFACES/OPTION CARDS , clicking the superordinate list entry will open the
Status Summary panel
window
Status window
Under INTERFACES/OPTION CARDS , clicking subordinate (indented) entries will open
the
Edit window
To edit option card settings, either click the Edit button in the lower-left corner of the
window
5.1.5

Viewing the Configuration of an Input or Output

The configurable settings of any SecureSync input or output interface can be viewed in its Status
window . The Status window can be accessed in several ways; the procedure below describes the
standard way:
288
Option card navigation
, which provides a status overview, as well as access to the
and the Edit window .
Status window , providing detailed option card status information.
, or click the GEAR button in the Status Summary panel
CHAPTER •
5 SecureSync User Reference Guide Rev. 18
Status
Status
: The Edit window will open.
