Spectracom SecureSync User Reference Manual page 253

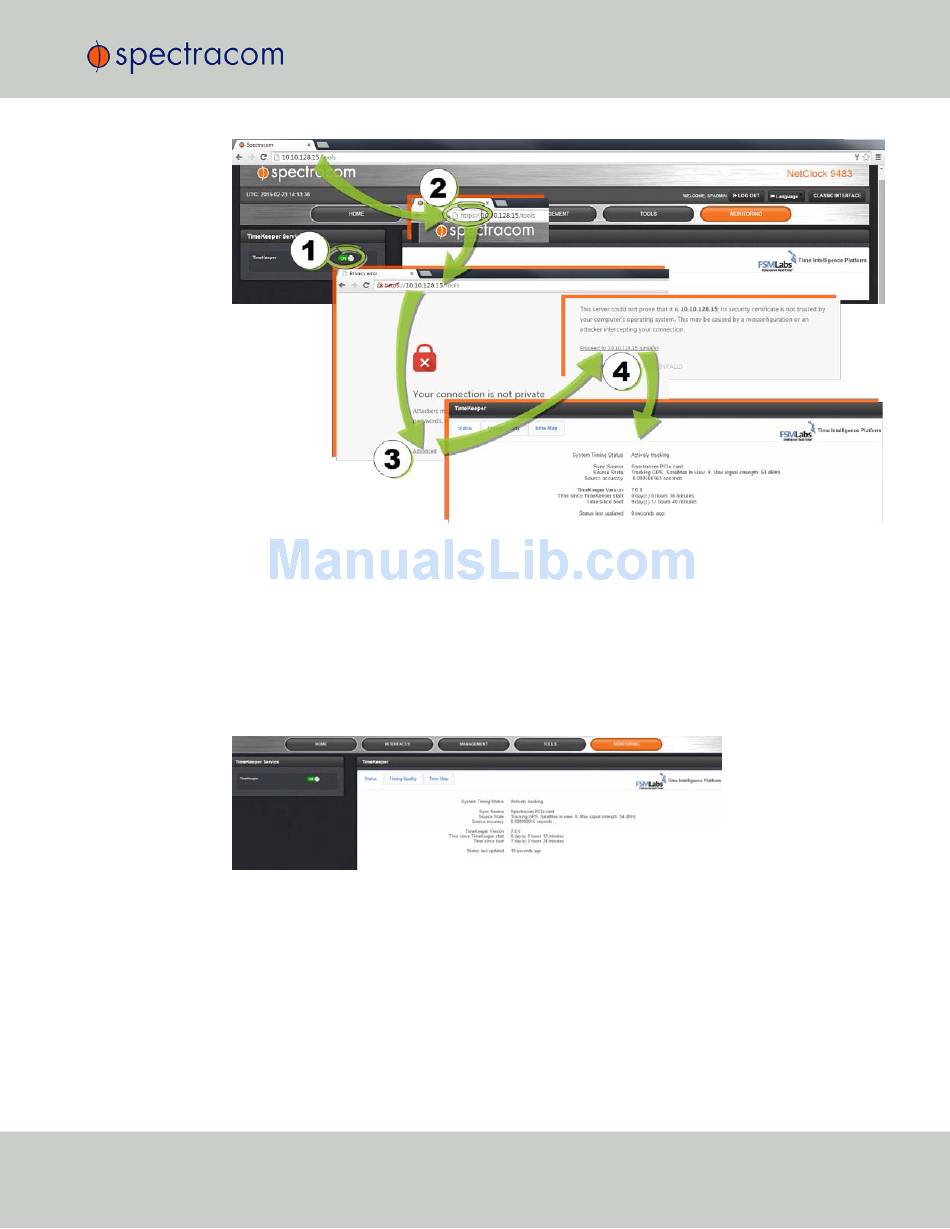

Figure 4-1:
Once the status monitoring functionality has been enabled, it can be accessed via the
MONITORING button in the Main Navigation bar.
The TimeKeeper monitoring interface has three tabs: Status , Timing Quality , and Time Map :
4.5.5.2 TKL "Status" Tab
The Status tab provides information on the source currently tracked, as well as TimeKeeper sys-
tem data, and system tracking information.
Figure 4-2:
4.5.5.3 TKL "Timing Quality" Tab
The Timing Quality tab offers detailed information on the quality of NTP and PTP sources, such as
timing offsets and delays.
CHAPTER •
4 SecureSync User Reference Guide Rev. 18
Enabling TimeKeeper Status Monitoring via https
TimeKeeper Status tab
4.5 TimeKeeper™
237
