synchronization. Or, it can also be used in conjunction with other primary references (such as
GNSS and NTP) to synchronize SecureSync. Available with BNC or Fiber Optic ST connectors.
5.4.2.1 IRIG In/Out, BNC [1204-05]: Input Specifications
5.4.2.2 IRIG In/Out, BNC [1204-05]: Output Specifications
Figure 5-26:
CHAPTER •
5 SecureSync User Reference Guide Rev. 18
Input Signal : IRIG A, B, G or NASA-36;
amplitude modulated sine wave (AM) OR pulse-width-coded (DCLS); user-selectable, with
automatic switching of load on input
AM Carrier : IRIG B 1000 Hz, IRIG A 10 kHz and G 100 kHz
AM Signal Level : 500 mV to 10 V
DCLS Signal Level : TTL; 0.8V max., 2.3V min fail.; >10 kΩ load
Connector : AM and DCLS: BNC female
Accuracy : n/a
Number of Cards : Up to 6
Ordering Information : 1204-05, IRIG module, BNC Connector
Output Signal : IRIG A, B, G, E or NASA-36, amplitude modulated sine wave (AM), 0.5V to
6V into 50 Ω; or pulse-width-coded (DCLS). User-selectable.
p-p
AM Carrier : IRIG B 1000 Hz, IRIG A and G 100 or 100
AM Signal Level : 500 mV to 10 V
DCLS Signal Level : >10 kΩ TTL
Connector : AM and DCLS: BNC female
Accuracy : see "IRIG Output Accuracy Specifications" on page 499
Number of Cards : Up to 6
Ordering Information : 1204-05, IRIG module, BNC Connector

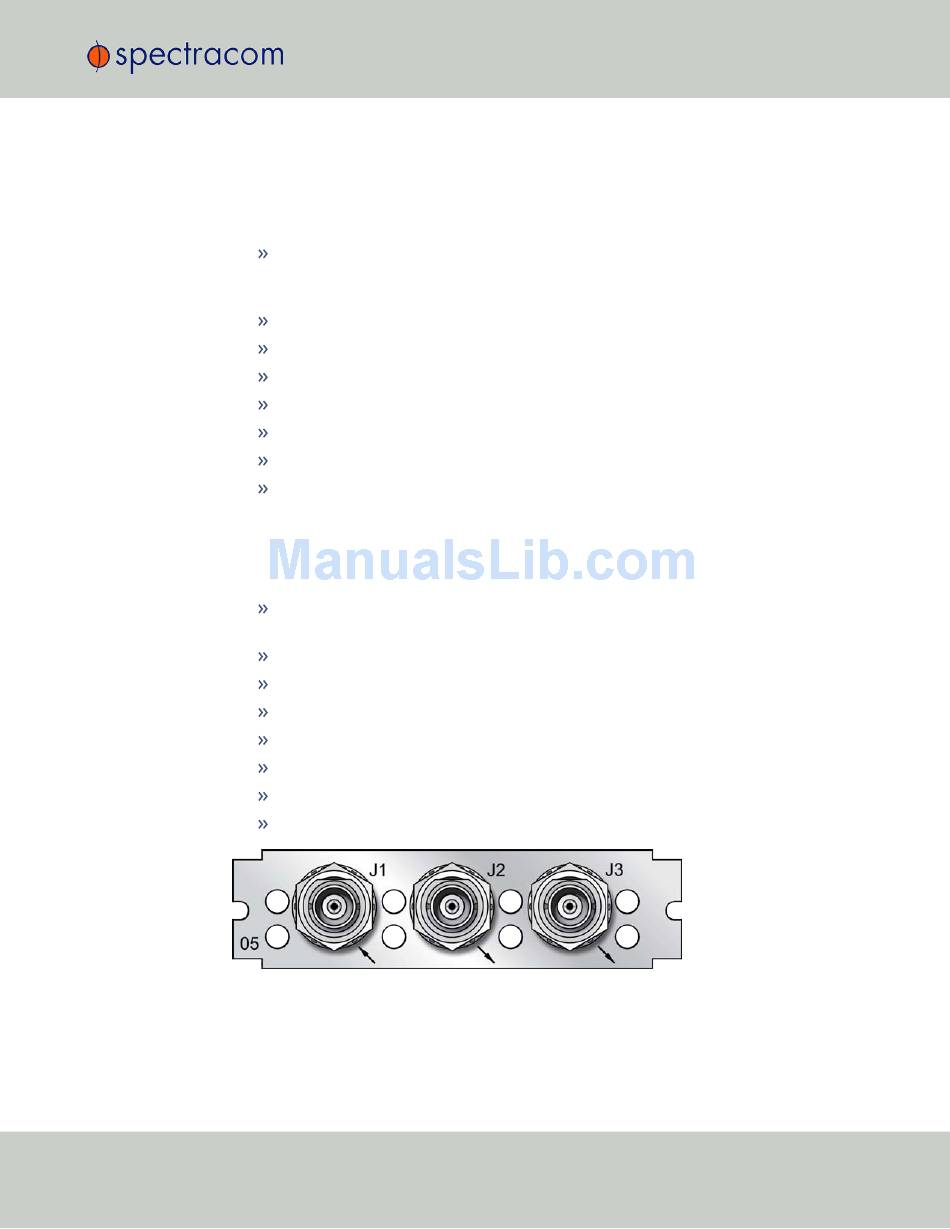

Model 1204-05 option card rear plate
(modulated 2:1 to 6:1); 50 Ω load
p-p
[high Z]; (modulated 2:1 to 6:1).
p-p
5.4 Time Code Option Cards
