5.4 Time Code Option Cards
The incoming input time information may be provided as local time, but System Time may be con-
figured as UTC time, so internal computations need to be performed. With the Timescale field set
to "Local", select the name of a previously created Local Clock. The Time Zone and DST rules, as
configured in the Local Clock will be applied to the front panel time display. Refer to "Setting up a
Local Clock" on page 175 for more information on Local Clocks.
Offset : Provides the ability to account for HAVE QUICK cable delays or other latencies in
the HAVE QUICK outputs. The Offset values are entered in nanoseconds (ns). The avail-
able Offset range is –500 to +500 ms.
5.4.6

HAVE QUICK In/Out [1204-29]

The HAVE QUICK input/output option card 1204-29 provides SecureSync with (1) HAVE QUICK
input and (3) HAVE QUICK outputs.
5.4.6.1 HAVE QUICK In/Out [1204-29]: Specifications
Inputs/Outputs : (1) HAVE QUICK input/(3) HAVE QUICK outputs
Signal Type and Connector : TTL levels (BNC)
Output Load Impedance : 50 Ω
Start of Signal : <10 µs after 1PPS output
Programmable phase shift : ±5ns to 500 ms with 5ns resolution
Maximum Number of Cards : 6
Ordering Information : 1204-29: HAVE QUICK Input/Output

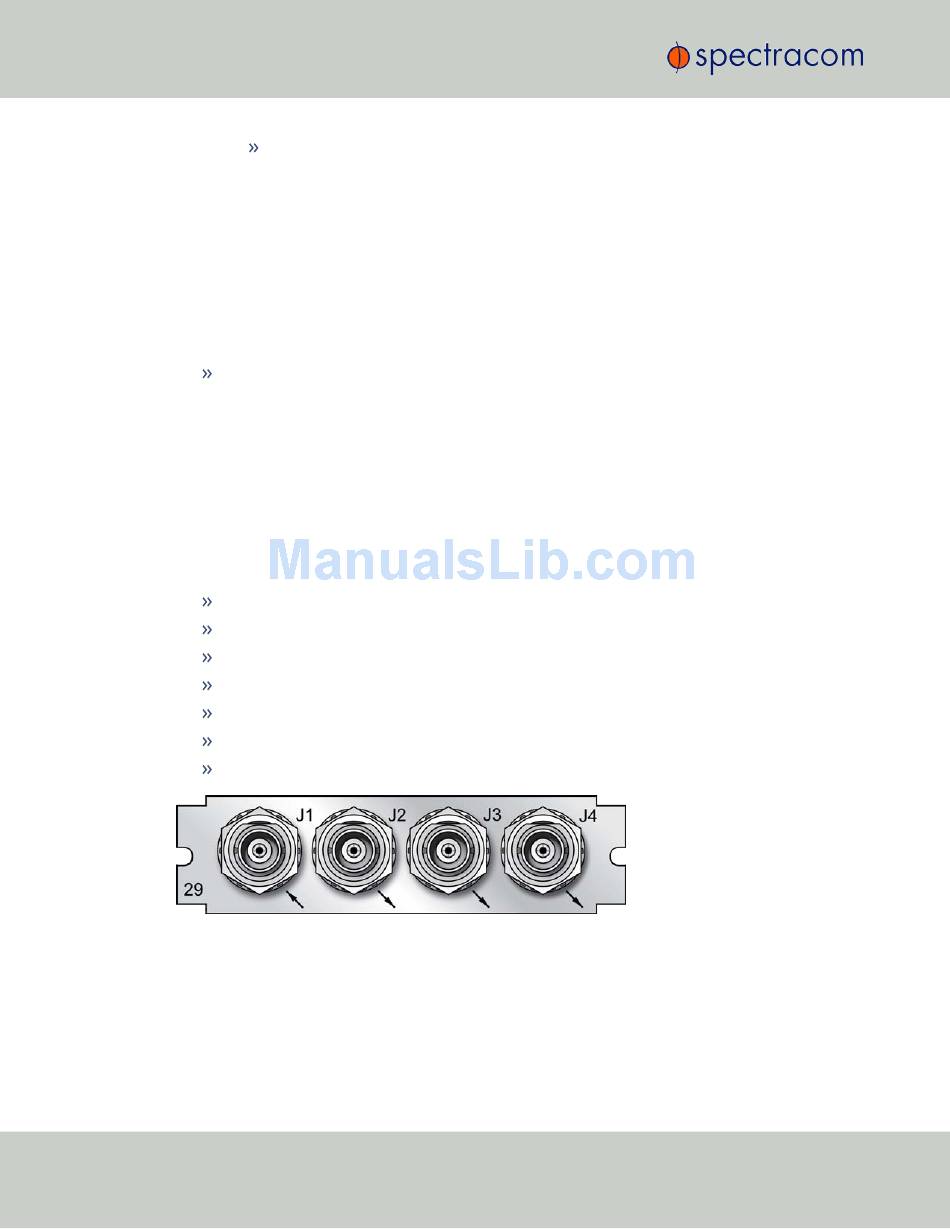

Figure 5-34:
5.4.6.2 HAVE QUICK Output: Viewing Signal State
To quickly view if a HAVE QUICK Output is enabled or disabled, go to the option card's Status
Summary panel. For instructions, see: "Viewing the Signal State of an Input or Output" on
page 291.
370
A local clock set up through the Time Management Page: This option will appear
under the name of the local clock you have set up. Refer to "The Time Management
Screen" on page 168 for more information on how to configure and read the System
Time. Local timescale allows a Local Clock to apply a time offset for Time Zone and
DST correction.
Model 1204-29 option card rear plate
