5.2 Time and Frequency Option Cards

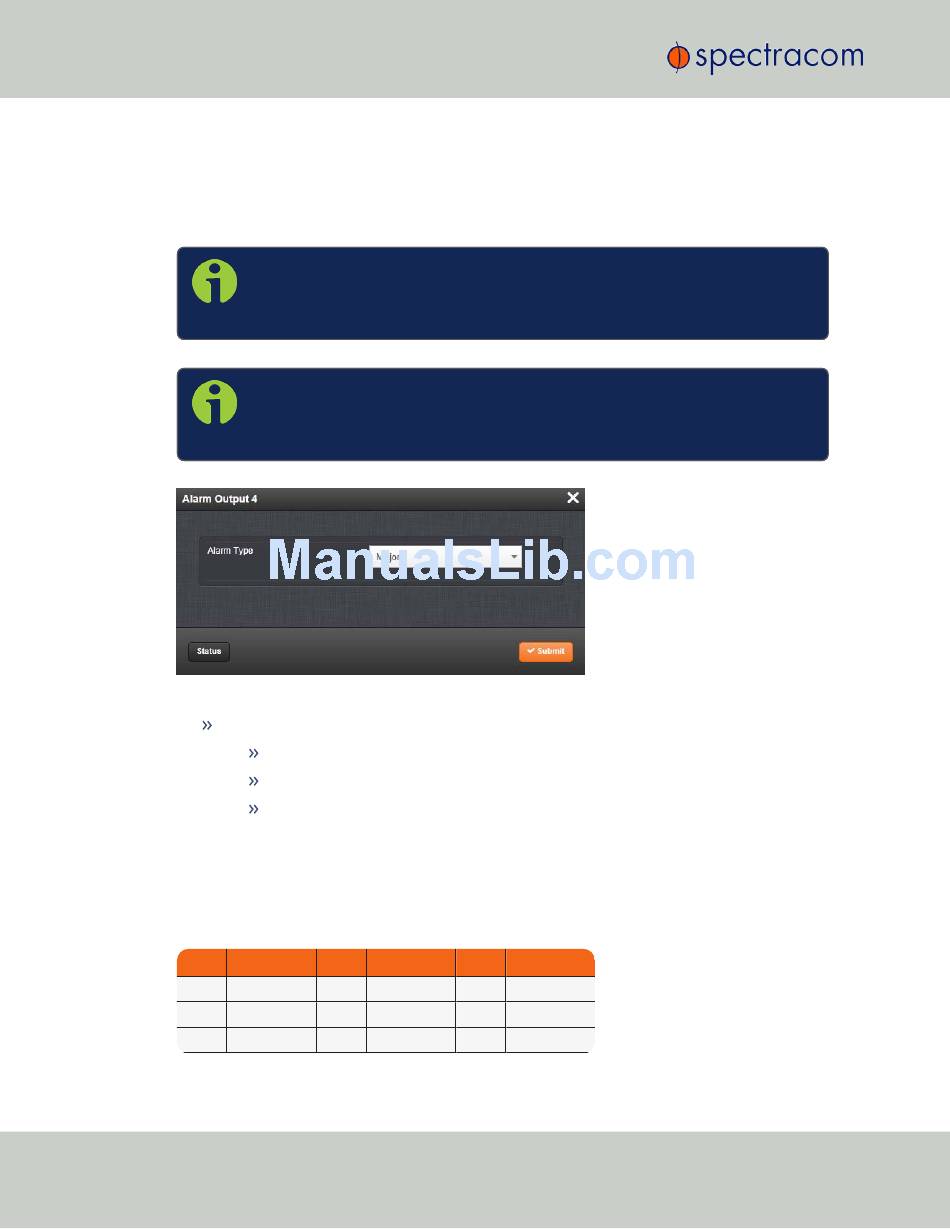

5.2.7.6 Alarm Outputs: Edit Window
To configure one of the ALARM Outputs , go to its Edit window. For instructions, see: "Configuring
the Settings of an Input or Output" on page 290.
The Web UI list entry for this card is named: Simulcast .
The Edit window allows the configuration of the following settings:
Alarm Type :
5.2.7.7 CTCSS Encoding Tables, Signal Data
CTCSS 1/3 Tones
Code Tone Freq. Code Tone Freq. Code Tone Freq.
XZ 67.000
326
NOTE – Alarm Output 0 through Alarm Output 3 are reserved by SecureSync. Num-
bering for alarm outputs from the option card will begin at Alarm 4, which is available
on the DB-9 output, while Alarms 5 and 6 are assigned to the RJ-12 connector.
NOTE – You can configure the alarm type (None, Minor, or Major) for both the DB-9
and RJ-12 connectors. For additional information on alarm types, see "Minor and
Major Alarms" on page 448 and "Minor and Major Alarms" on page 448.
None—Will not output for an alarm
Minor—Will output on a minor alarm
Major—Will output on a major alarm.
1A 103.666
1B 107.333
2Z 111.000
6A 174.000
6B 180.000
7Z 186.333
