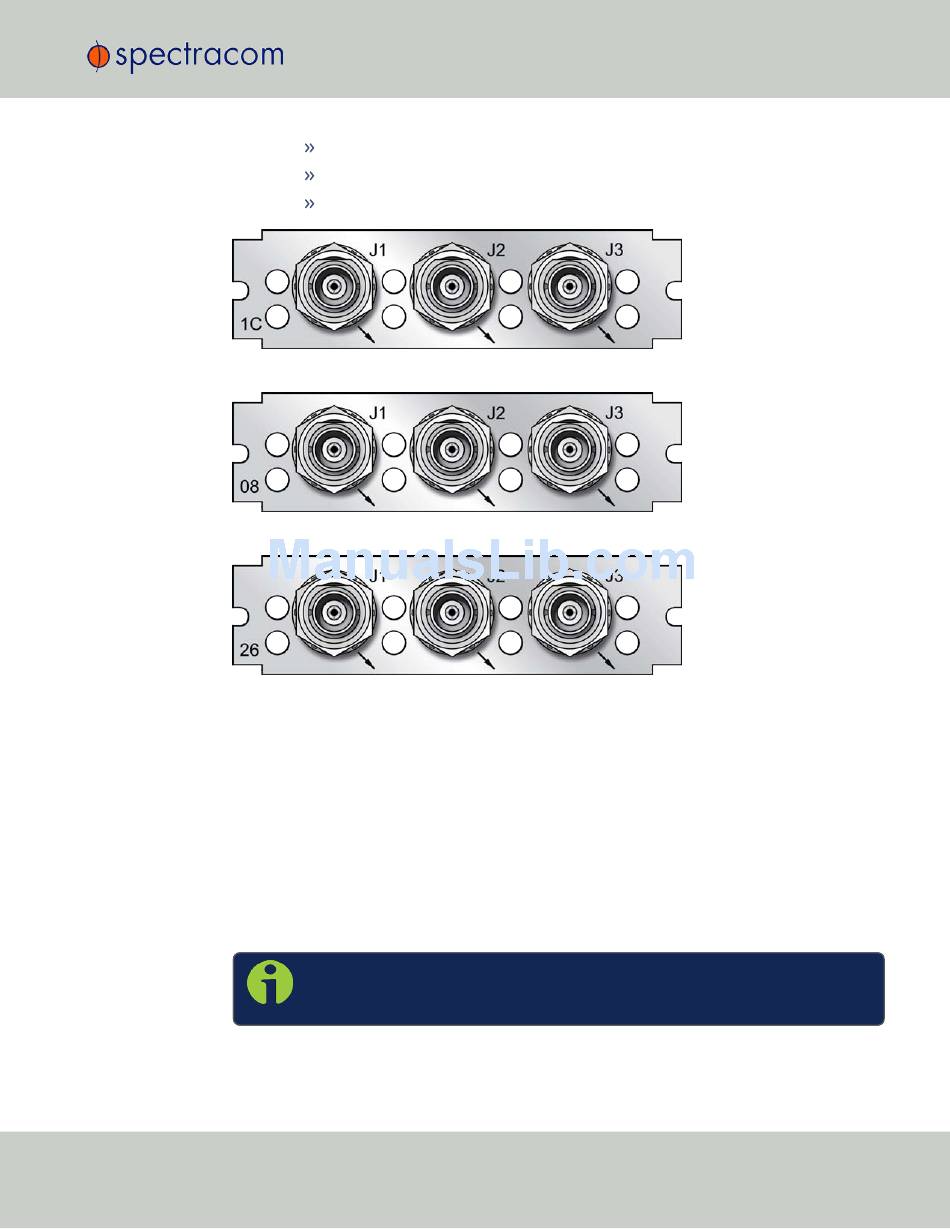

Figure 5-10:
Figure 5-11:
Figure 5-12:
The Frequency Out option cards each have 3 outputs, distributing a 1MHz signal, 5MHz or 10 MHz
signal (depending on the card model). All 3 outputs are configured as a single output and will
appear as such in the SecureSync Web UI, numbered sequentially by card instance, starting with
0 (except the 10 MHz option card, which starts with no.1 because of the built-in 10 MHz output.)
5.2.4.2 Frequency Output: Edit Window
To configure the settings of a Frequency Output , go to its Edit window. For instructions, see:
"Configuring the Settings of an Input or Output" on page 290.
The list entry for this card is named: 1/5/10 MHz BNC.
The connector numbers are: J1...J3.
CHAPTER •
5 SecureSync User Reference Guide Rev. 18
1204-1C: 10 MHz output (3X) Module
1204-08: 5MHz output (3X) Module
1204-26: 1MHz output (3X) Module
Model 1204-1C option card rear plate
Model 1204-08 option card rear plate
Model 1204-26 option card rear plate
NOTE – SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out-
puts start at 1, because of the built-in outputs).
5.2 Time and Frequency Option Cards
