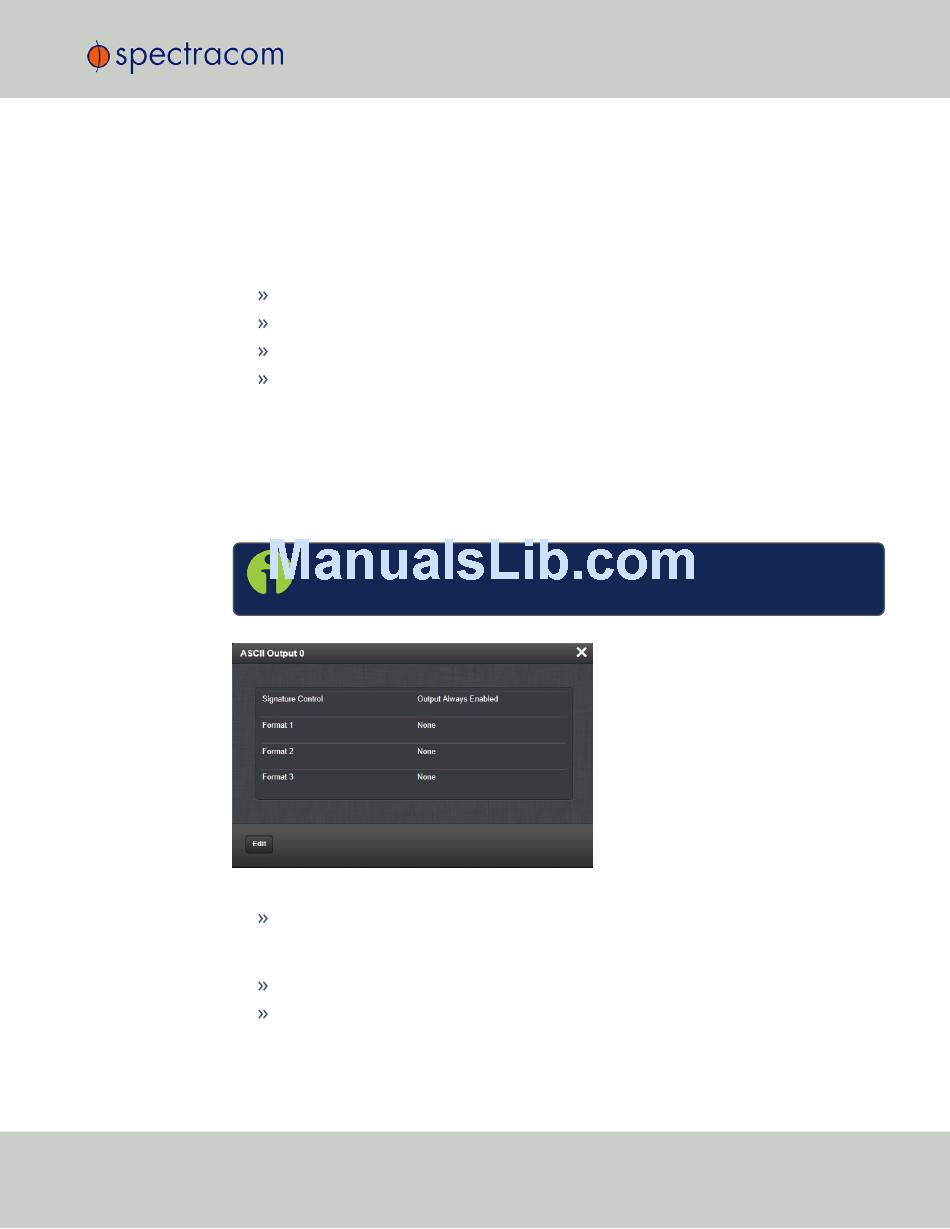

5.4.7.5 ASCII Time Code Output: Status Window
To view the current settings of the ASCII Output , go to its Status window. For instructions, see:
"Viewing the Configuration of an Input or Output" on page 288.
The Web UI list entries for this card are: ASCII TIMECODE RS-232 and ASCII TIMECODE RS-
485 .
The Status window displays the following settings:
CHAPTER •
5 SecureSync User Reference Guide Rev. 18
offset for Time Zone and DST correction.
The incoming input time information may be provided as local time, but System Time
may be configured as UTC time, so internal computations need to be performed.
With the Timescale field set to "Local", select the name of a previously created Local
Clock. The Time Zone and DST rules, as configured in the Local Clock will be
applied to the front panel time display. See "Setting up a Local Clock" on page 175
for more information on Local Clocks.
Baud Rate : Determines the speed at which the output port will operate.
Data Bits : Defines the number of Data Bits for the output port.
Parity : Configures the parity checking of the output port.
Stop Bits : Defines the number of Stop Bits for the output.
NOTE – SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out-
puts start at 1, because of the built-in outputs).
Signature Control : Indicates whether Signature Control is enabled (Signature Control
determines when the ASCII data stream will be enabled to be present). See also: "Sig-
nature Control" on page 201.
Format 1 : Indicates the configured format of the ASCII time code input data stream.
Format 2 : Indicates the configured format of the second consecutive ASCII time code
input data stream.
