5.6 Miscellaneous Option Cards

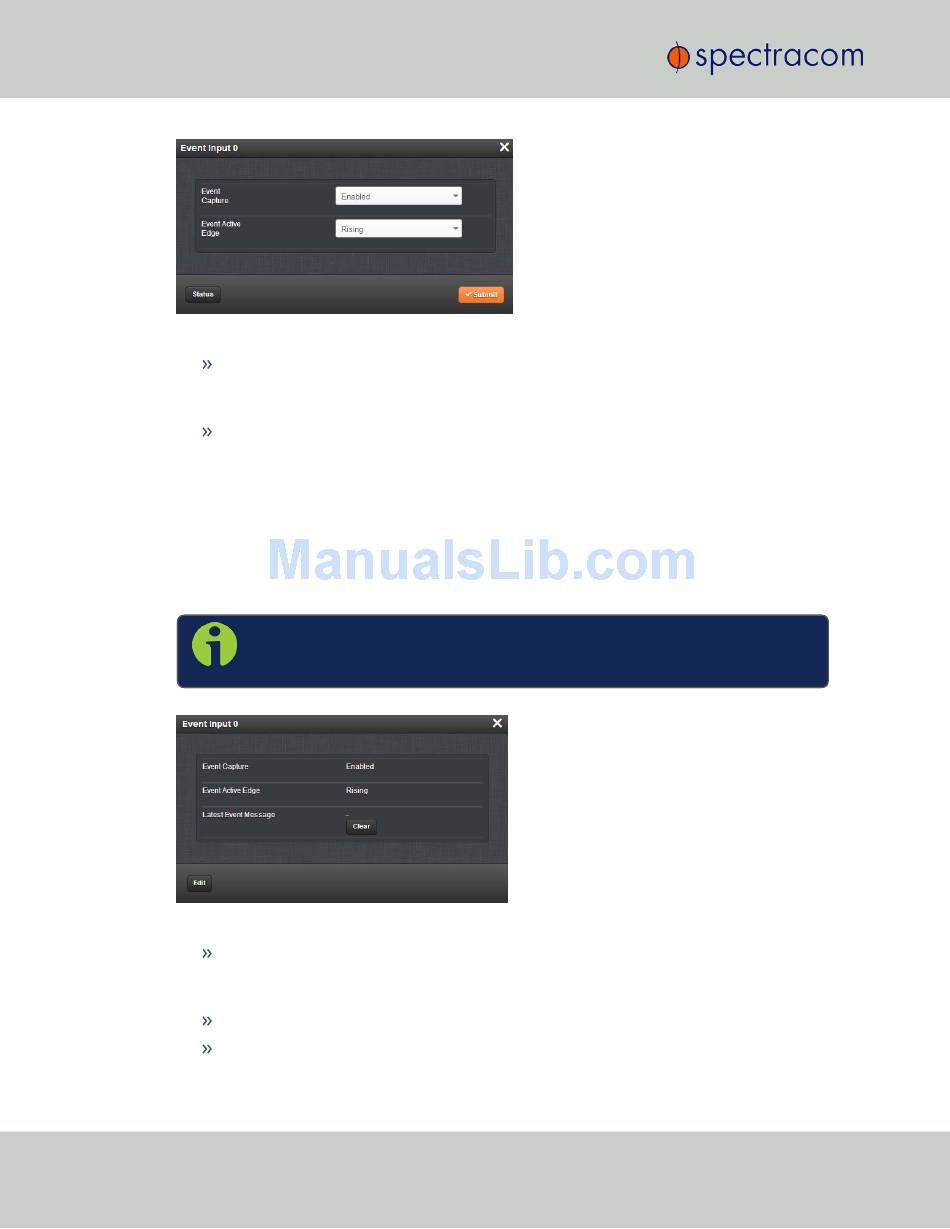

The Status window displays the following settings:
Event Capture : Enables the processing of events on the Event Input port J2. When set to
"Disabled", no event messages will be queued. When set to "Enabled", event messages will
be triggered (if a valid Format is selected).
Event Active Edge : Selects the signal edge used for triggering events on Event Input port
J2.
5.6.3.6 Event Broadcast Input: Status Window
To view the current settings of the Event Broadcast Input , (also referred to as ' Reference '), go
to its Status window. For instructions, see: "Viewing the Configuration of an Input or Output" on
page 288.
The Web UI list entry for this card is: Event Broadcast .
The Status window displays the following settings:
Event Capture : The processing of events on the Event Input port J2. When set to "Dis-
abled", no event messages will be queued. When set to "Enabled", event messages will be
triggered (if a valid Format is selected).
Event Active Edge : The signal edge used for triggering events on Event Input port J2.
Latest Event Message : The last message sent. This can be cleared with the Clear button.
428
NOTE – SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out-
puts start at 1, because of the built-in outputs).
