The NTP Frequency Offset Performance Graph

To view the NTP Frequency Offset performance graph:
1.
Navigate to the MANAGEMENT/NETWORK/NTP Setup screen.
2.

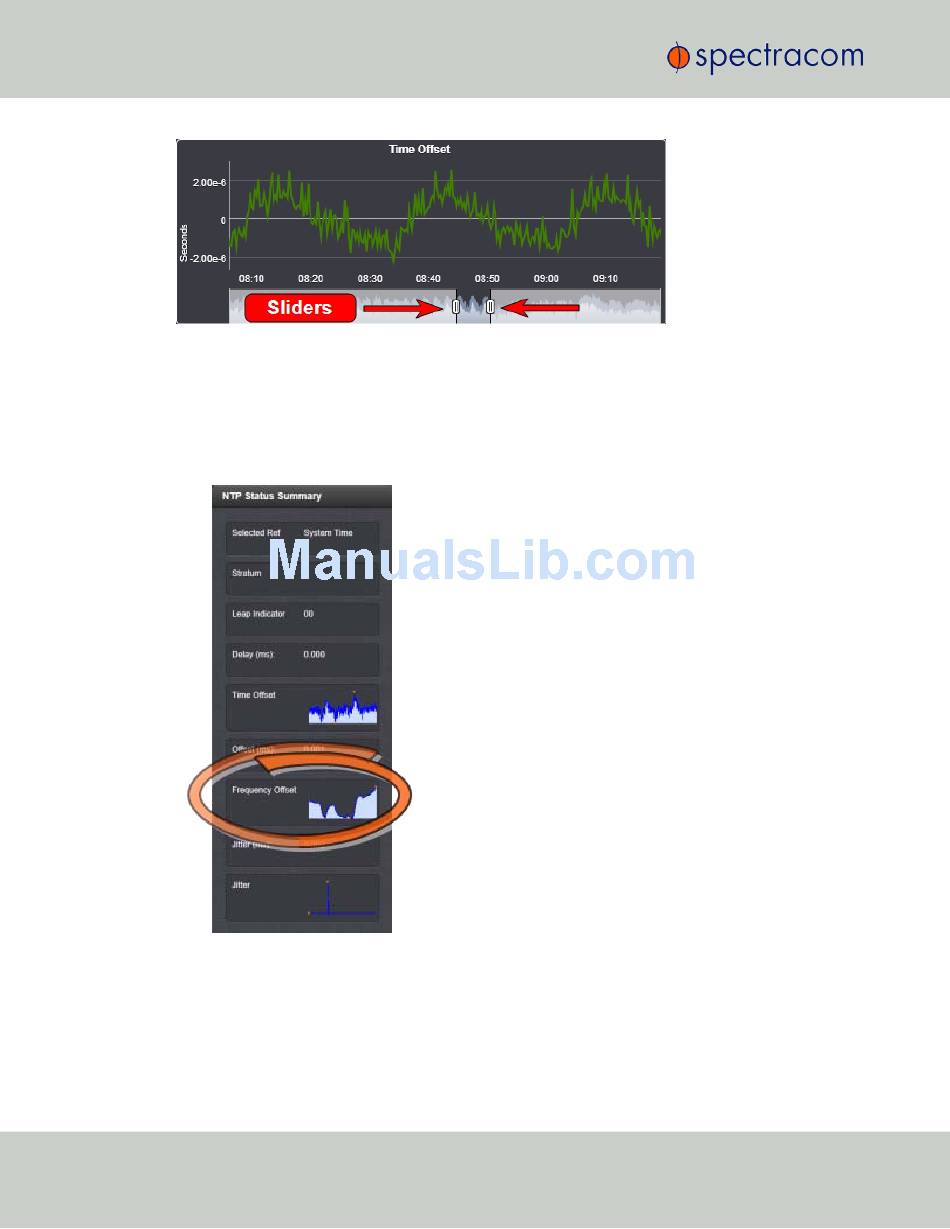

In the NTP Status Summary panel locate the Frequency Offset graph.
3.
Click the graph in the NTP Status Summary panel.
4.
The NTP Performance Graph panel will appear (the data may be displayed with a delay).
The X-axis represents time, the Y-axis shows the frequency offset in parts-per-million
(PPM); e.g. 290 PPM is equivalent to .0290 percent.
